Zebra CS6080-HC Corded

Zebra CS6080-HC Corded

Features: Standard Range - Scans 1D and 2D Barcodes

No results found.

No ratings on this product.


Out of stock

Out of stock

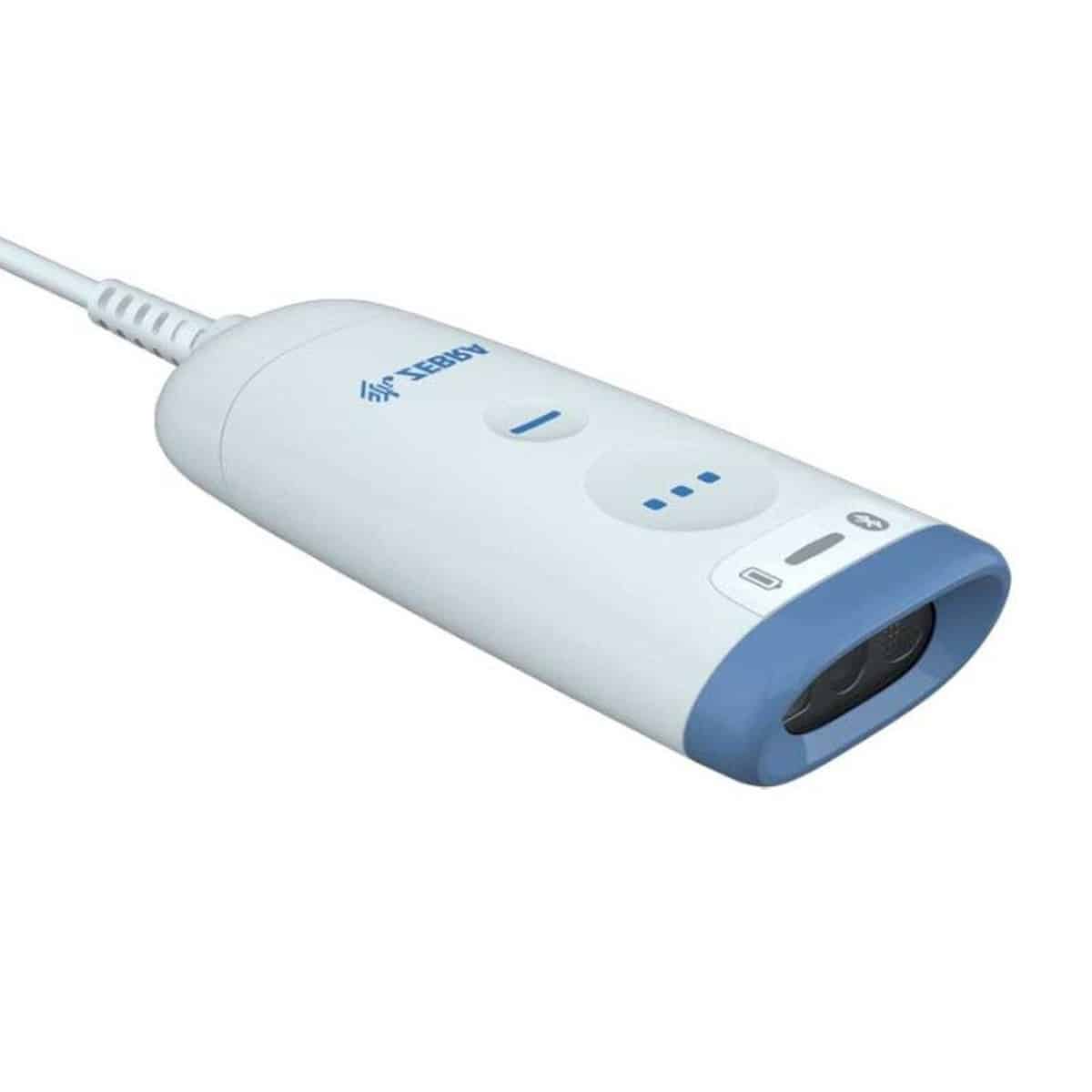

CS6080 Corded: Companion Scanner, Area Imager, Healthcare, HC White, Vibration Motor

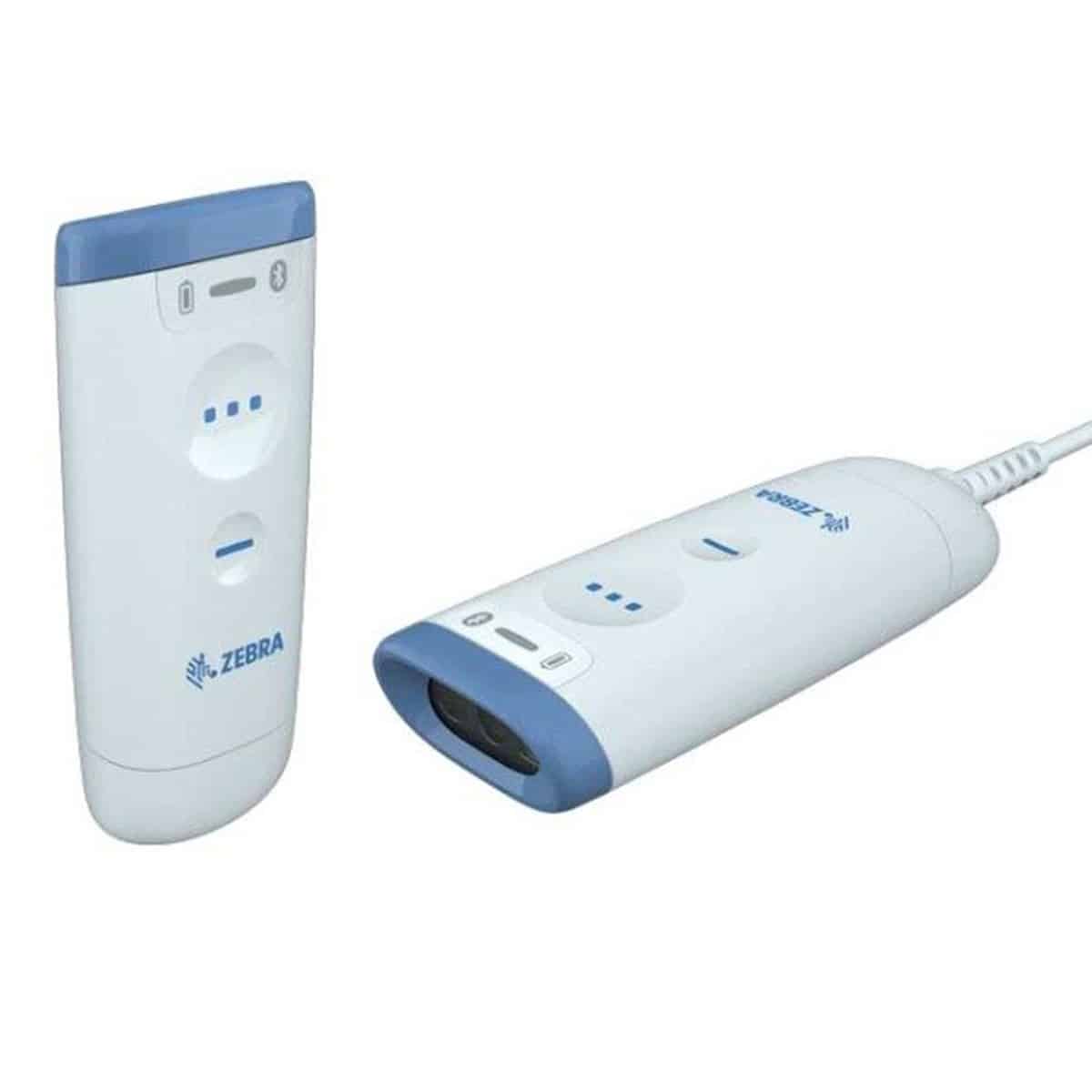

 CS60-HC Series Companion Scanner

is a versatile and adaptable scanning device that can accommodate and adjust to any workflow. With its innovative design, it offers both corded and cordless operation, handheld and hands-free scanning modes, making it ideal for various healthcare settings.

When used as a cordless scanner, the device can be paired with a cart-mounted cradle, mobile device, or in-room workstation, and features the latest technology such as contactless charging, 18 hours of battery life, and versatile charging options. This makes it perfect for accommodating nurse-carry workflows.

On the other hand, the CS60-HC can be used as a corded scanner for compact handheld or hands-free scanning, which is particularly useful in pharmacy counters, lab stations, and other stationary settings. With the CS60-HC, you can switch between corded and cordless modes by swapping the battery and corded USB converter, thus ensuring investment protection.

The device is constructed with special plastics, IP65 sealing, and crevice-free design for easy and safe wipe-downs with the most potent disinfectants used in modern hospitals. It is equipped with a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology that can capture any barcode types commonly used in healthcare settings - patient wristbands, medication vials, IV bags, and specimen trays, to name a few.

The CS60-HC comes with a programmable button, allowing users to switch effortlessly between two host applications. It is supported by Zebra's management tools, making it easy to deploy, operate, and maintain.

Physical Characteristics
  • Scanner dimensions: 0.9 in. H x 1.8 in. W x 4.3 in. D / 2.3 cm H x 4.6 cm W x 10.9 cm D
  • Presentation cradle dimensions: 3.5 in. H x 2.1 in. W x 2.4 in. D / 9.0 cm H x 5.3 cm W x 6.1 cm D
  • Weight: Corded CS60-HC: 2.0 oz. / 58.0 g
  • Presentation cradle weight: 3.4 oz. / 96.0 g
  • Color: Healthcare white
Input Voltage
  • Scanner and presentation cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
  • Operating current (typical) at nominal voltage (5.0V): 400 mA
  • Standby current (typical) at nominal voltage (5.0V): 90 mA
  • Presentation cradle current (typical): 450 mA (Standard USB), 600 mA (BC 1.2 USB)
Supported Host Interfaces
  • USB
Radio Specifications
  • Standard Bluetooth Version: 5.0 with BLE
  • Bluetooth Power Output: Power adjustable down to negative 10 dBm in 8 steps
  • Bluetooth Radio Range: Class 1 330ft. (100m) and Class 2 33ft. (10m)
  • Serial Port and HID Profiles
  • Battery Capacity/Type: 735 mAh Lithium Polymer battery
  • Scans Per Battery Charge: 13,000 scans
  • Operating Time Per Full Charge: 18 hour
