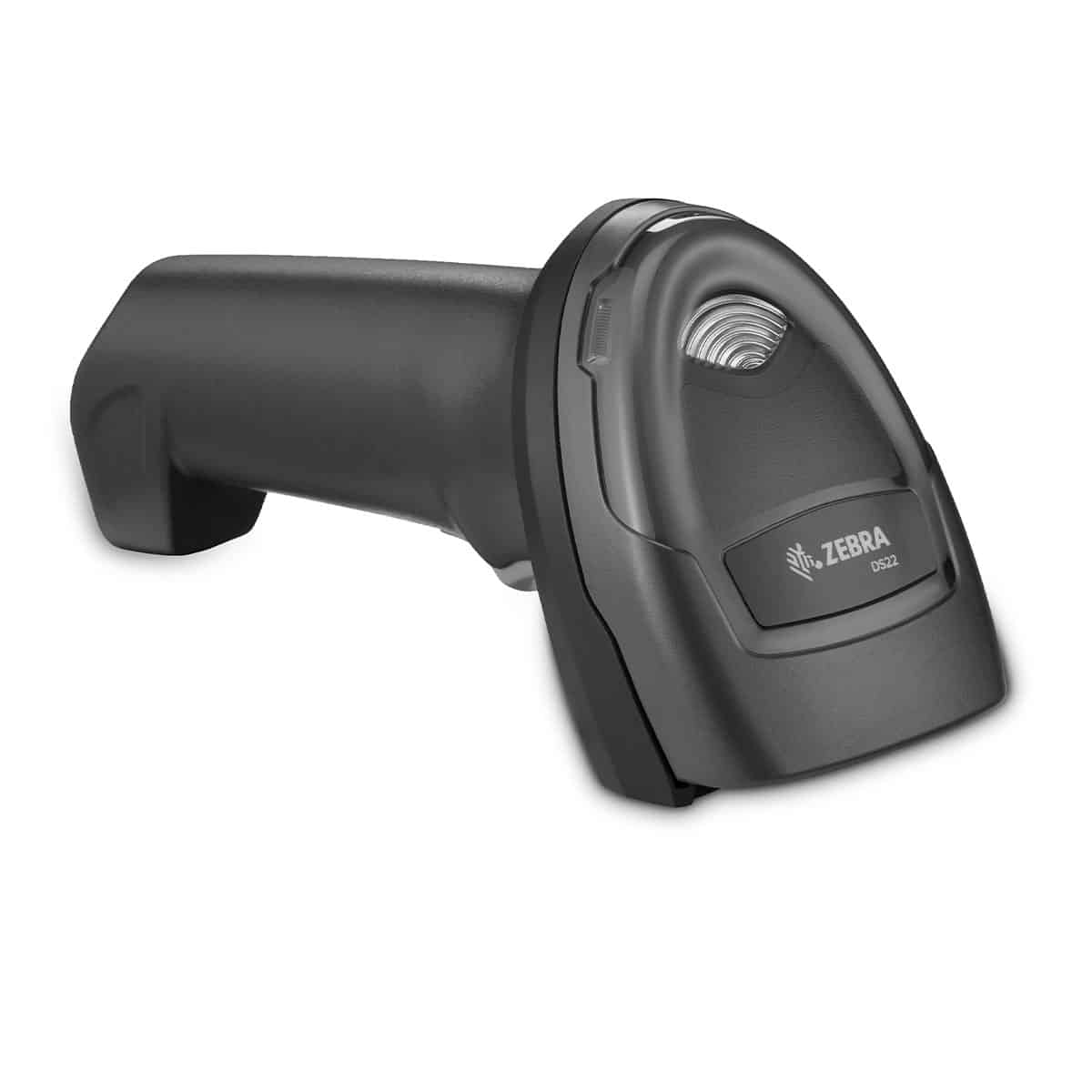

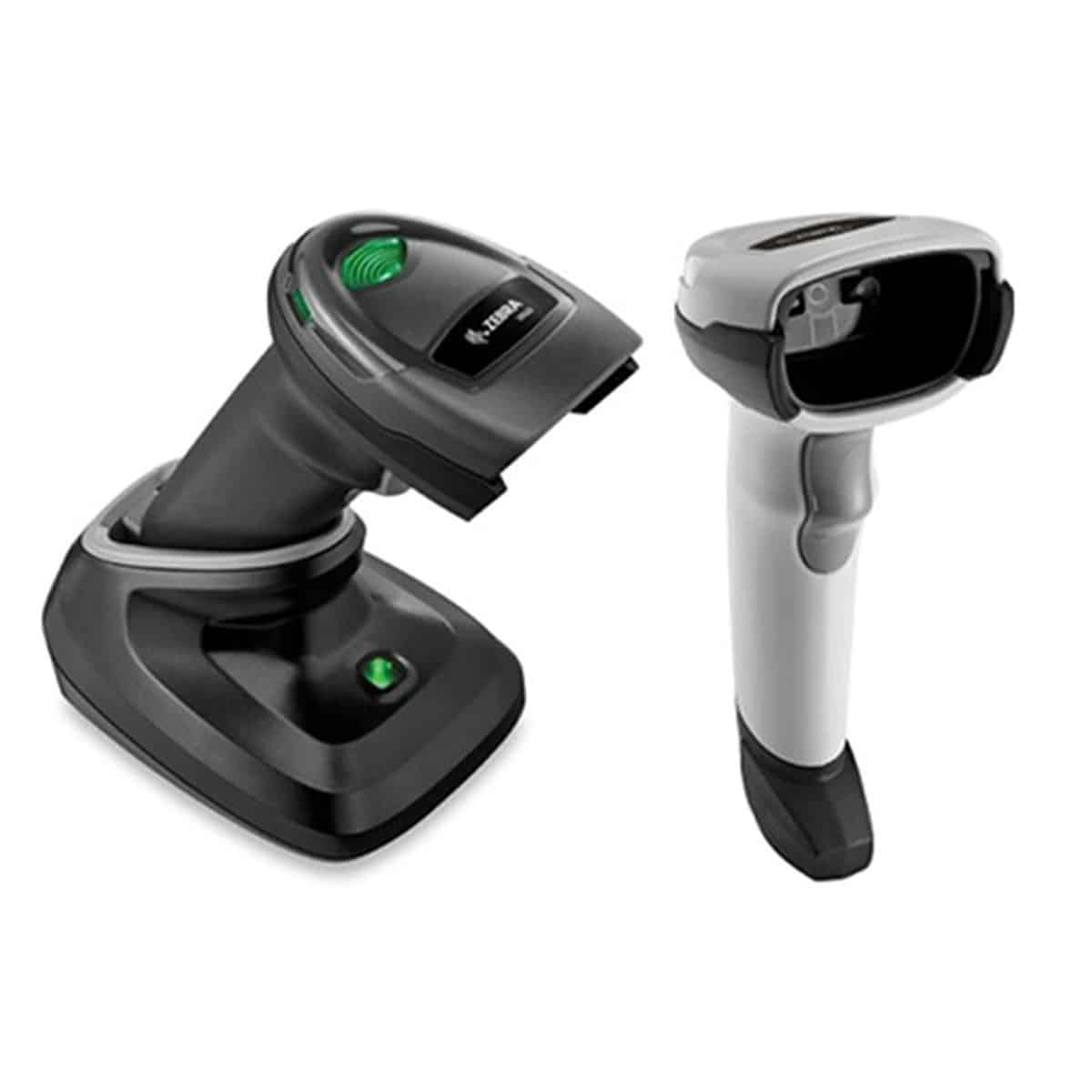

DS2200 SERIES SPECIFICATIONS
Physical Characteristics
| Dimensions | Corded DS2208:
6.5 in. H x 2.6 in. W x 3.9 in. D 16.5 cm H x 6.6 cm W x 9.9 cm D Cordless DS2278: 6.9 in. H x 2.6 in. W x 3.5 in. D 17.5 cm H x 6.6 cm W x 9.0 cm D Presentation Cradle: 2.8 in. H x 3.7 in. W x 4.8 in. D 7.2 cm H x 9.4 cm W x 12.2 cm D |
| Weight | Corded DS2208: 5.7 oz. / 161.6 g
Cordless DS2278: 7.5 oz. / 214 g Presentation Cradle: 5.2 oz. / 151 g |
| Input Voltage Range | DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| Current | Corded DS2208 Operating Current at
Nominal Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and Illumination on Acquiring Image) Corded DS2208 Standby Current (idle) at Nominal Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On) Presentation Cradle and Micro USB Cable: 500 mA (typical) Standard USB; 1100 mA (typical) BC 1.2 USB |
| Color | Nova White, Twilight Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM)
46XX over RS485 |
| Keyboard Support | Supports more than 90 international keyboards |
| User Indicators | Direct Decode Indicator; good decode LEDs;
Rear view LEDs; beeper (adjustable tone and volume) |
Performance Characteristics
| Motion Tolerance (Handheld) | Up to 5 in./13 cm. per second for 13 mil UPC |
| Swipe Speed (Hands-Free) | Up to 30.0 in./76.2 cm. per second for 13 mil UPC |
| Light Source | Aiming Pattern: Linear 624nm Amber LED |
| Illumination | (2) 645nm Super-Red LEDs |
| Imager Field of View | 32.8° H x 24.8° V Nominal |
| Image Sensor | 640 x 480 pixels |
| Minimum Print Contrast | 25% minimum reflective difference |
| Skew/Pitch/Roll Tolerance | +/- 65°; +/- 65°; 0-360° |
| Minimum Element Resolution | Code 39 – 4.0 mil; Code 128 – 4.0 mil;
Data Matrix – 6.0 mil; QR Code – 6.7 mil |
User Environment
| Operating Temperature | DS2208/DS2278 Imagers:
32.0° to 122.0° F/0.0° to 50.0° C Presentation Cradle: 32.0° to 104.0° F/0.0° to 40.0° C |
| Storage Temperature | -40.0° to 158.0° F/-40.0° to 70.0° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Tumble Specification | Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler1 |
| Environmental Sealing | IP52 |
| Electrostatic Discharge (ESD) | DS2208/DS2278 and CR2278 Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 10,000 Foot Candles/0 to 107,600 Lux |
Radio Specifications
| Bluetooth Radio | Standard Bluetooth Version 4.0 with BLE:
Direct line of sight in open air: Class 2: Minimum 30 ft. (10.0 m) and up to 300 ft. (100.0 m) when paired with CR2278 cradle. Environmental factors may impact results. Serial Port and HID Profiles; output power adjustable down from 2.0 dBm in 8 Steps |
Battery
| Battery Capacity/Battery Type | 2,400 mAh Li-Ion Battery |
| Scans Per Battery Charge2 | 110,000 scans at 60 Scans per Minute or 50,000 scans at 10 Scans per Minute |
| Operating Time Per Full Charge2 | 84.0 Hours |
| Charge Time (from Empty) | 14 Hour Shift Hours / Full Charge Hours |
| Standard USB | 14 Hour Shift Hours: 4
Full Charge Hours: 17 |
| BC1.2 USB | 14 Hour Shift Hours: 1
Full Charge Hours: 5 |
| External 5V Source | 14 Hour Shift Hours: 1
Full Charge Hours: 5 |
| Micro USB | 14 Hour Shift Hours: 1
Full Charge Hours: 7 |
| BC1.2 Micro USB | 14 Hour Shift Hours: 1
Full Charge Hours: 4 |
Regulatory
| Electrical Safety | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 |
| Environmental | RoHS EN 50581 |
| LED Safety | IEC 62471 |
| IT Emissions | EN 55032 (Class B) |
| IT Immunity | EN 55024 |
| Harmonic Current Emissions | EN 61000-3-2 |
| Voltage Fluctuation and Flicker | EN 61000-3-3 |
| Radio Frequency Devices | 47 CFR Part 15, Subpart B, Class B |
| Digital Appartus | ICES-003 Issue 6, Class B |
Cordless Accessories
| CR2278 Presentation Cradle, Spare Battery, Micro USB Cable |
Decode Capabilities3
| Input Voltage Range | DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC
Host Powered; 4.5 to 5.5 VDC External Power Supply |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7,
Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the DS2200 Series is warranted against defects in workmanship and materials for the following period from the date of shipment: DS2208 Corded Scanner: Sixty (60) months; DS2278 Cordless Scanner: Thirty-six (36) months; CR2278 Presentation Cradle: Thirty-six (36) months; Battery: Twelve (12) months. For the complete Zebra hardware product warranty statement, go to: http://www.zebra.com/warranty. |
Recommended Services
| Zebra OneCare Select; Zebra OneCare Essential |
Utilities and Management
| 123Scan | Programs scanner parameters, upgrades
firmware, provides scanned barcode data and prints reports. www.zebra.com/123Scan |
| Symbol Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. |
Decode Ranges (Typical)4
| Code 39 | Resolution: 5 mil
Near: .2in./.5cm Far: 6.0 in/15.2 cm. |
| Code 128 | Resolution: 5 mil
Near: .6in./1.5 cm. Far: 4.0 in./10.1 cm. |
| PDF417 | Resolution: 6.7 mil
Near: .8 in./2.0 cm Far: 5.7 in/14.5 cm. |
| UPC | Resolution: 13 mil (100%)
Near: .5 in./.1.3 cm Far: 14.5 in./36.8 cm. |
| Data Matrix | Resolution: 10 mil
Near: .3in./.8 cm. Far: 6.2 in./15.7 cm. |
| QR | Resolution: 20 mil
Near: .0 in./.0cm Far: 11 in./27.9 cm. |
Footnotes
| 1. Note: 1 tumble = 0.5 cycle.
2. Simulated Checkout profile of 10 scans in 10 seconds with a 50 second rest. 3. Refer to Product Reference Guide for complete list of symbologies. 4. Printing resolution, contrast, and ambient light dependent. |
