Dimensions:
- Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D / 18.5 cm H x 7.6 cm W x 13.2 cm D
-
Weight:
- Corded: 10.9 oz. / 309 g
-
Input Voltage Range:
- Host powered: 4.5 VDC min., 5.5 VDC max.
- External power supply: 11.4 VDC min., 12.6 VDC max.
-
Operating Current:
- DS3608-HD (corded): 450 mA (typical)
-
Standby Current:
- DS3608-HD (corded): 100 mA (typical)
-
Color:
- Industrial Green
-
Battery Power:
- Precision+ 3100 mAh Li-Ion rechargeable battery
-
Scans per Full Charge:
- 70,000+
-
Illumination:
- Two (2) warm white light LEDs
-
Image Sensor:
- 1,280 x 960 pixels
-
Imager Field of View:
- Horizontal: 31°, Vertical: 23°
-
Wireless Connectivity:
- Bluetooth Radio
- Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
-
Data Rate:
- 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
- 1 Mbit/s (0.27 Mbit/s) for Low Energy Radio
-
Radio Range:
- Direct line of sight in open air:
- Class 1: Minimum 300 ft. (100.0 m)
- Class 2: Minimum 30 ft. (10.0 m)
- Direct line of sight in open air:
-
Decode Capabilities:
- 1D:
- Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
- 2D:
- PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
- 1D:
-
Wireless Connectivity:
- Bluetooth Radio:Â Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
- Data Rate:
- 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
- 1 Mbit/s (0.27 Mbit/s) for Low Energy Radio
- Radio Range:
- Direct line of sight in open air:
- Class 1: Minimum 300 ft. (100.0 m)
- Class 2: Minimum 30 ft. (10.0 m)
- Direct line of sight in open air:

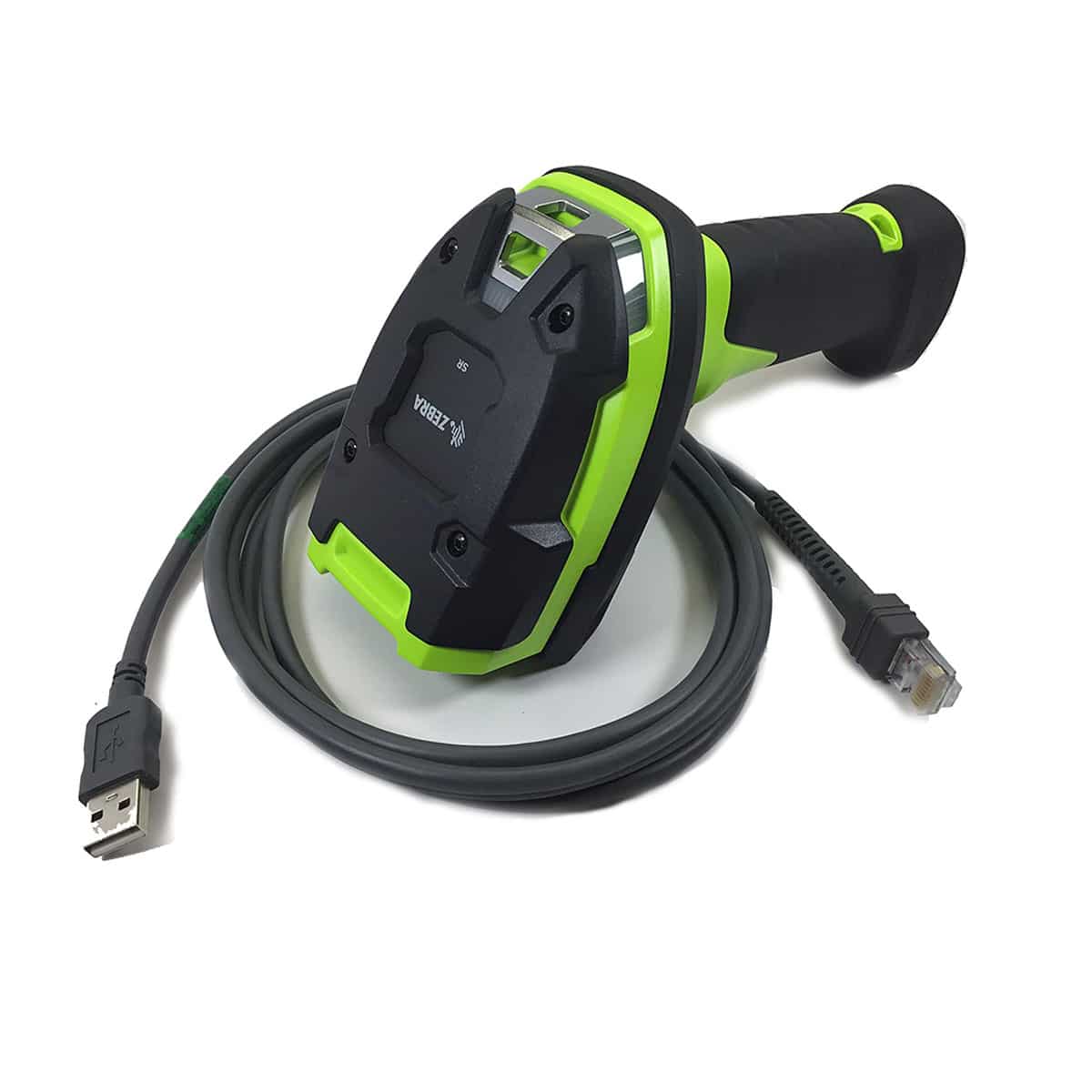

Zebra DS3608-HD Rugged Green Vibration Motor USB Kit: DS3608-HD20003VZWW Scanner, CBA-U46-S07ZAR High Current Shielded USB Cable
Introducing the Zebra DS3608-HD kit – a powerful and durable scanner designed for industrial environments. Whether in electronics, medical equipment manufacturing or other tough industries, the productivity of your workers heavily relies on the quality of the scanner they use. With the DS3600-HD, you can instantly capture any high-density 1D or 2D barcode printed on product components, labels, or displayed on screens, regardless of the condition.
This ultra-rugged scanner is virtually indestructible, with dual IP65/IP68 sealing and an enhanced 10ft/3m drop spec to concrete. It's designed to withstand the toughest environments, ensuring maximum productivity throughout the device’s lifetime, and prevention of costly unplanned production line downtime.
One remarkable feature of DS3608-HD is the DataCapture DNA, Zebra's exclusive software ecosystem that simplifies every stage of the scanning experience. This proprietary technology can help you maximize workforce productivity and throughput by combing the dust-tight, sprayproof and waterproof design with unmatchable scanning performance. Whether capturing damaged, dirty or poorly printed barcodes, DS3608-HD has got you covered!
In addition, managing these scanners is effortless thanks to Zebra's complimentary industry-best tools. You can remotely configure and upgrade your devices, track battery statistics and monitor statistics on-the-go, making it easier to integrate scanner data to your business applications.
If you want to reduce production cycle times, maximize workforce productivity, and prevent unplanned downtimes, the Zebra DS3608-HD kit is your ultimate solution. Get your hands on the best scanner in the market and enjoy superior performance that you can rely on, everytime!
DS3608-HD3U4602VZW
