| Category | Specifications |
| Physical Characteristics | |
| Dimensions | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D<br> Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D |
| Weight | Corded: 11.5 oz./327 g<br> Cordless: 15.0 oz./424 g |
| Input Voltage Range | Host powered: 4.5 VDC min., 12.6 VDC max.<br> External power supply: 11.4 VDC min., 12.6 VDC max. |

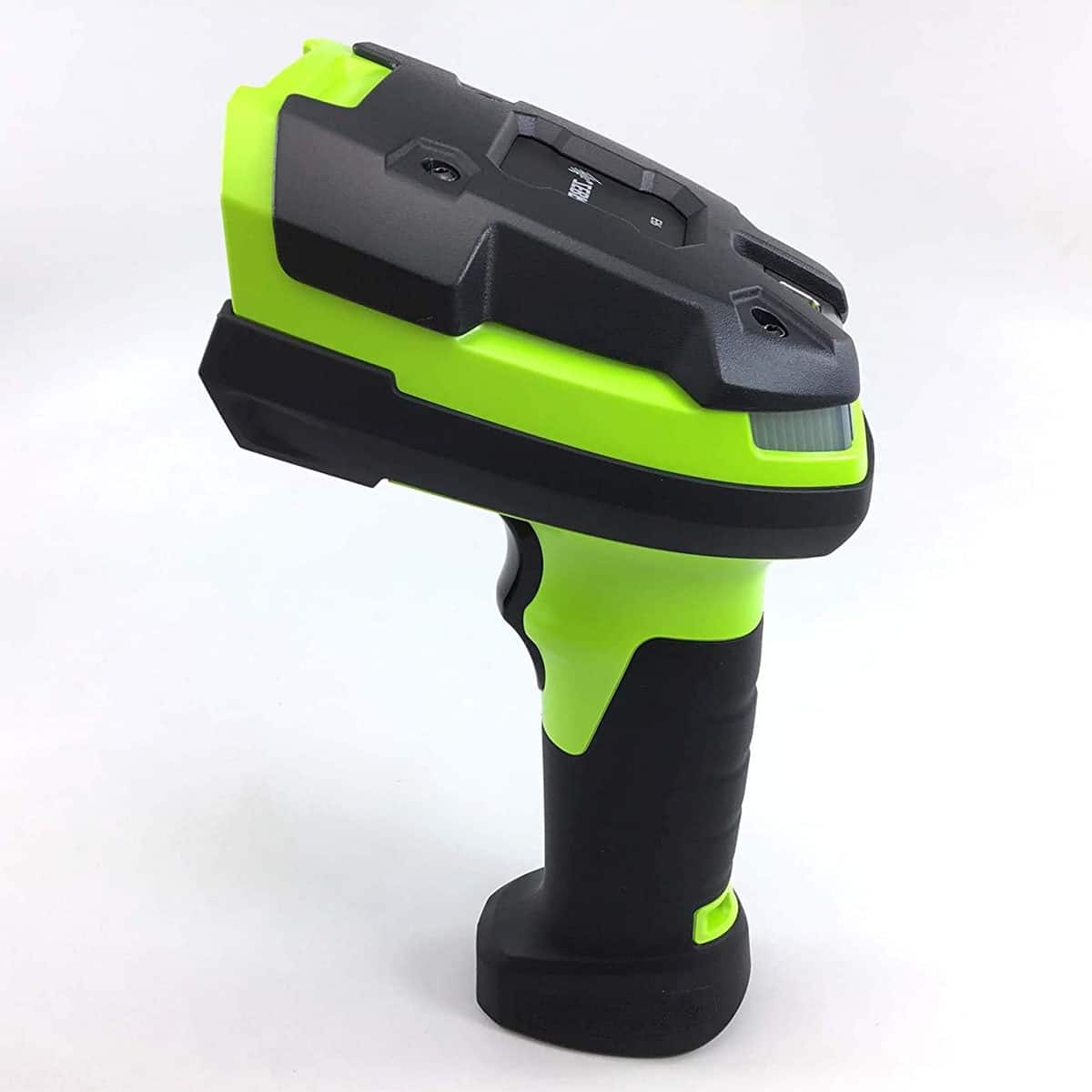

| Operating Current | LI3608-ER (corded): 250 mA (RMS typical) |
| Standby Current | LI3608-ER (corded): 110 mA (RMS typical) |
| Color | Industrial Green |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge<br> Industrial Ethernet: EtherNet/IP, Profinet, Modbus<br> TCP & Std TCP/IP |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
| Performance Characteristics | |
| Scans per Full Charge | 100,000+ |
| Illumination | 660 nm LED |
| Aimer | 655 nm laser |
| Imager Field of View | 30.7° (H) |
| Image Sensor | 2,496 pixels |
| Minimum Print Contrast | 25% minimum reflective difference |
| Skew/Pitch/Roll | Skew: ± 65°<br> Pitch: ± 65°<br> Roll: ± 45° |
| Decode Capabilities | |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| User Environment | |
| Operating Temp. | Corded: -22° F to 122° F/-30° C to 50° C<br> Cordless: -4° F to 122° F/-20° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | LI36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature |
| LI3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C | |
| LI3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C | |
| Tumble Specification | 7500 3.3 ft./1.0 m tumbles |
| Sealing | Scanner: IP65 and IP68 per applicable IEC sealing specifications |
| FLB cradle: IP65 | |
| ESD | Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity | 0 to 10,000 Foot Candles/0 to 107639 Lux (direct sunlight) |
| Wireless Connectivity | |
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port (SPP), and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth |
| 1 Mbit/s (0.27 Mbit/s) for Low Energy | |
| Radio Range | Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) |
| Regulatory | |
| Environmental | RoHS EN 50581: 2012 |
| Electrical Safety | EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; |
| International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013; | |
| US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 | |
| Laser/LED Safety | Complies with 21 CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice NO. 50, dated June 24, 2007 and IEC/EN 60825-1:2007 and/or IEC/EN 60825-1:2014 |
| EMI/RFI | IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B |
| Digital Apparatus: ICES-003 Issue 5, Class B |
| Regulatory | |
| Environmental | RoHS EN 50581: 2012 |
| Electrical Safety | EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; |
| International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013; | |
| US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 | |
| Laser/LED Safety | Complies with 21 CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice NO. 50, dated June 24, 2007 and IEC/EN 60825-1:2007 and/or IEC/EN 60825-1:2014 |
| EMI/RFI | IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B |
| Digital Apparatus: ICES-003 Issue 5, Class B |
| Decode Ranges (Typical) | |
| Symbology/Resolution | Near/Far |
| Code 39: 7.5 mil | 3 to 28 in./7.6 to 71.2 cm |
| Code 39: 10 mil | 2 to 70 in./5.1 to 177.8 cm |
| Code 128: 15 mil | 5 to 85 in./12.7 to 215.9 cm |
| Code 39: 20 mil | 3 to 140 in./7.62 to 355.6 cm |
| Code 39: 55 mil | 6 to 350 in./15.24 to 889.0 cm |
| Code 39: 100 mil | 20 to 680 in./50.8 to 1727.2 cm |
| Code 39: 100 mil Reflective | 30 to 780 in./76.2 to 1981.2 cm |
For more detailed specifications, please visit the official product specification page.
To learn more about Data Capture DNA and its applications, visit www.zebra.com/datacapturedna.
To see a complete warranty statement,click here for the Zebra’s warranty page.
