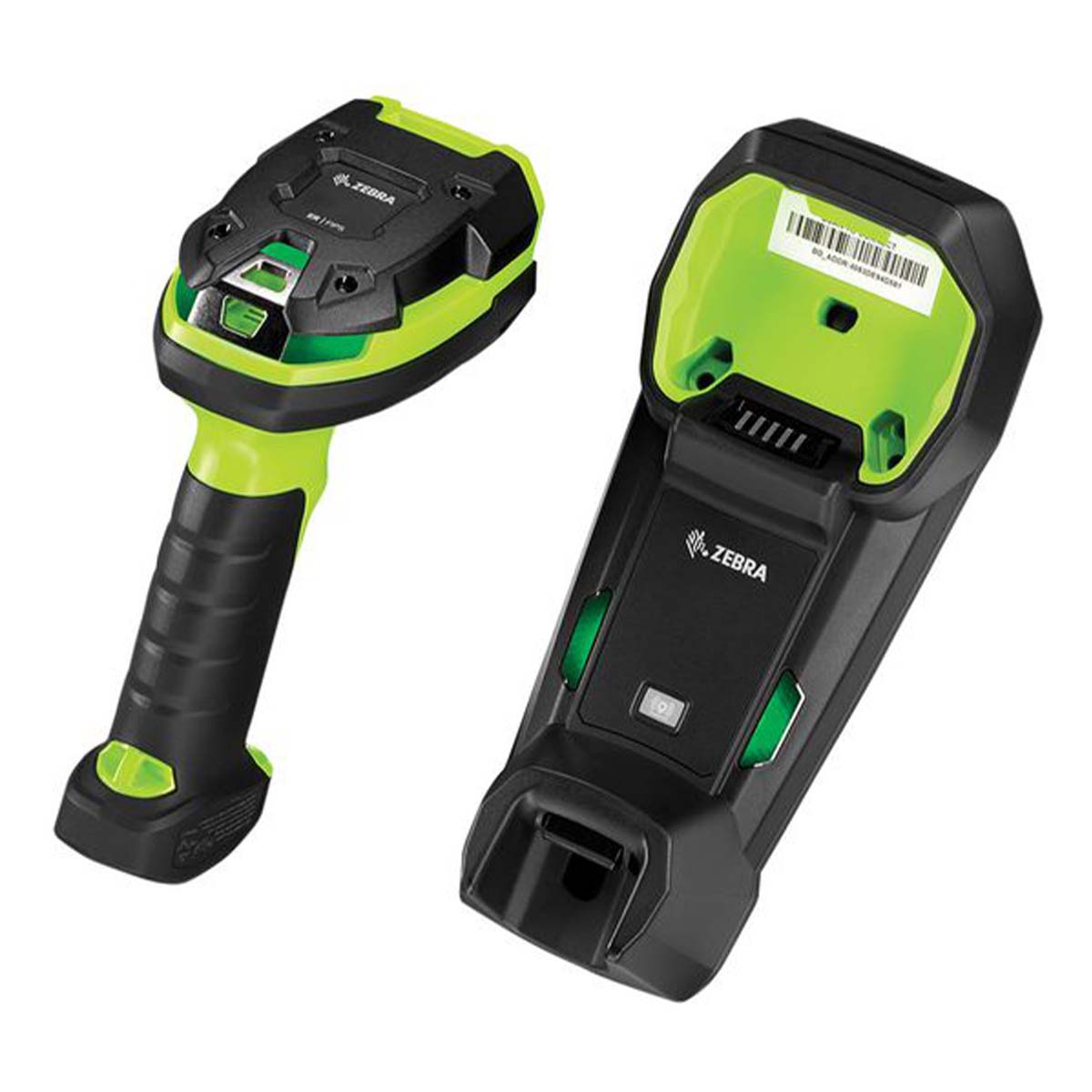

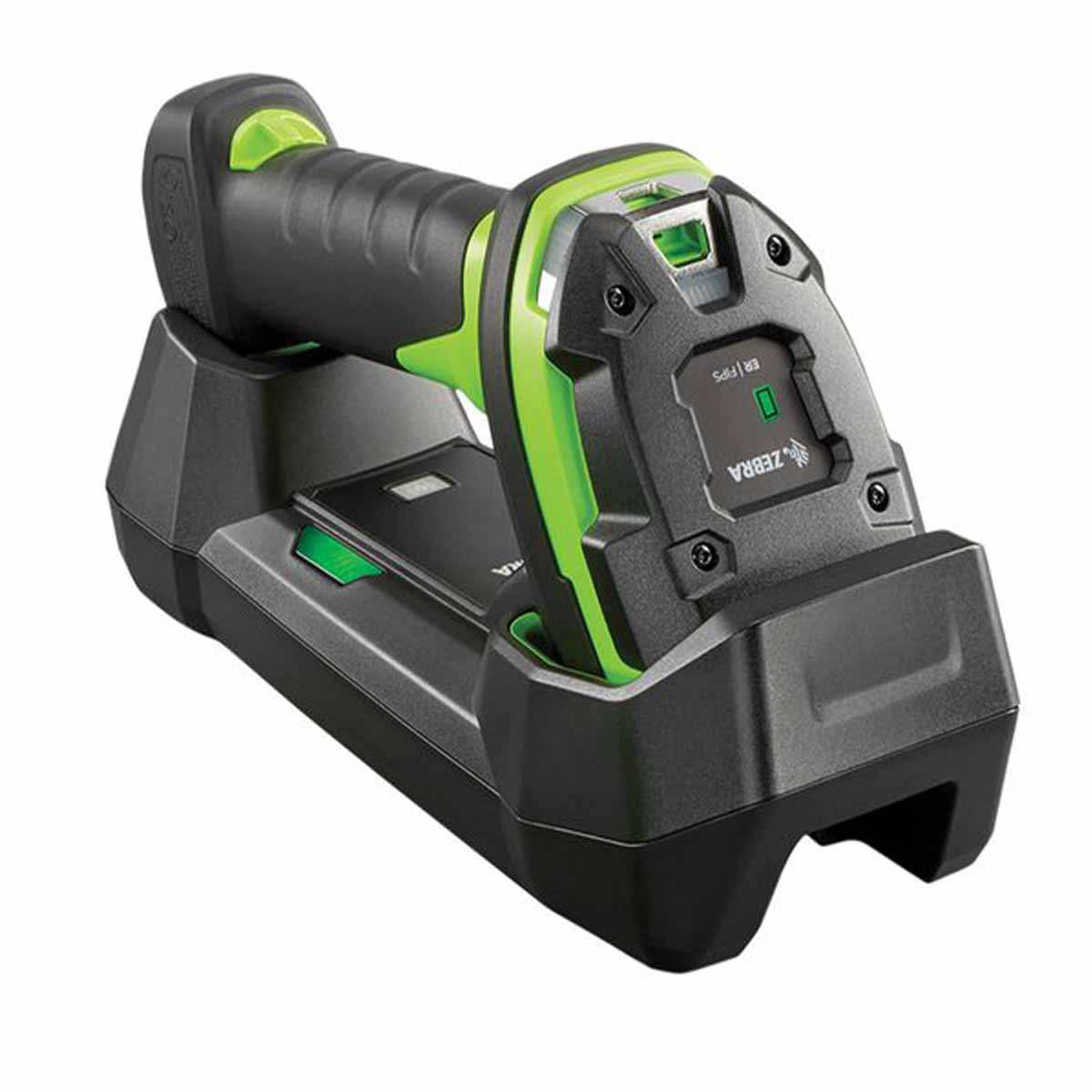

Zebra LI3678-ER Extended Range Cordless Kit

Physical Characteristics

• Dimensions
  • Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D, 18.5 cm H x 7.6 cm W x 13.2 cm D
  • Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D, 18.5 cm H x 7.7 cm W x 14.2 cm D
• Weight
  • Corded: 11.5 oz./327 g
  • Cordless: 15.0 oz./424 g
• Input Voltage Range
  • Host powered: 4.5 VDC min., 12.6 VDC max.
  • External power supply: 11.4 VDC min., 12.6 VDC max.
• Operating Current
  • LI3608-ER (corded): 250 mA (RMS typical)
• Standby Current
  • LI3608-ER (corded): 110 mA (RMS typical)
• Color: Industrial Green
• Supported Host Interfaces: USB, RS232, Keyboard Wedge, Industrial Ethernet (EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP)
• Battery: PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
• User Indicators: Direct decode indicator; LEDs; beeper; vibration

Performance Characteristics

• Scans per Full Charge: 100,000+
• Illumination: 660 nm LED
• Aimer: 655 nm laser
• Imager Field of View: 30.7° (H)
• Image Sensor: 2,496 pixels
• Minimum Print Contrast: 25% minimum reflective difference
• Skew/Pitch/Roll
  • Skew: ± 65°
  • Pitch: ± 65°
  • Roll: ± 45°

Decode Capabilities

• 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

User Environment

• Operating Temperature
  • Corded: -22°F to 122°F / -30°C to 50°C
  • Cordless: -4°F to 122°F / -20°C to 50°C
• Storage Temperature: -40°F to 158°F / -40°C to 70°C
• Humidity: 5% to 95% non-condensing
• Drop Specification
  • LI36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature
  • LI3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20°C to 50°C
  • LI3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30°C to 50°C
• Tumble Specification: 7500 3.3 ft./1.0 m tumbles
• Sealing
  • Scanner: IP65 and IP68 per applicable IEC sealing specifications
  • FLB cradle: IP65
• ESD: Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
• Ambient Light Immunity: 0 to 10,000 Foot Candles/0 to 107639 Lux (direct sunlight)

Utilities and Maintenance

• 123Scan: Programs scanner parameters, upgrades firmware, provides scanned barcode data, and prints reports. For more information, visit www.zebra.com/123Scan
• Scanner SDK: Generates a fully-featured scanner application, including documentation, drivers, test utilities, and sample source code. For more information, visit www.zebra.com/windowsSDK
• Scanner Management Service (SMS): Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms
• Network Connect: Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network with no additional conversion equipment. For more information, visit www.zebra.com/NetworkConnect

Wireless Connectivity

• Bluetooth Radio: Bluetooth Class 1, Version 4.0 (LE), serial port (SPP), and HID profiles
• Data Rate: 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth, 1 Mbit/s (0.27 Mbit/s) for Low Energy
• Radio Range: Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)

Regulatory

• Environmental: RoHS EN 50581: 2012
• Electrical Safety:
  • EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013, US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
• Laser/LED Safety: Complies with 21 CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice NO. 50, dated June 24, 2007, and IEC/EN 60825-1:2007 and/or IEC/EN 60825-1:2014
• EMI/RFI:
  • IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B, Digital Apparatus: ICES-003 Issue 5, Class B

Decode Ranges (Typical)

• Symbology/Resolution/Near/Far
  • Code 39: 7.5 mil / 3 to 28 in./7.6 to 71.2 cm
  • Code 39: 10 mil / 2 to 70 in./5.1 to 177.8 cm
  • Code 128: 15 mil / 5 to 85 in./12.7 to 215.9 cm
  • Code 39: 20 mil / 3 to 140 in./7.62 to 355.6 cm
  • Code 39: 55 mil / 6 to 350 in./15.24 to 889.0 cm
  • Code 39: 100 mil / 20 to 680 in./50.8 to 1727.2 cm
  • Code 39: 100 mil Reflective / 30 to 780 in./76.2 to 1981.2 cm

Warranty

• Subject to the terms of Zebra’s hardware warranty statement, the LI3608-ER/LI3678-ER is warranted against defects in workmanship and materials for a period of three (3) years from the date of shipment. For complete warranty statement, go to: http://www.zebra.com/warranty

Recommended Services

• Zebra OneCare™ Select; Zebra OneCare Essentials
