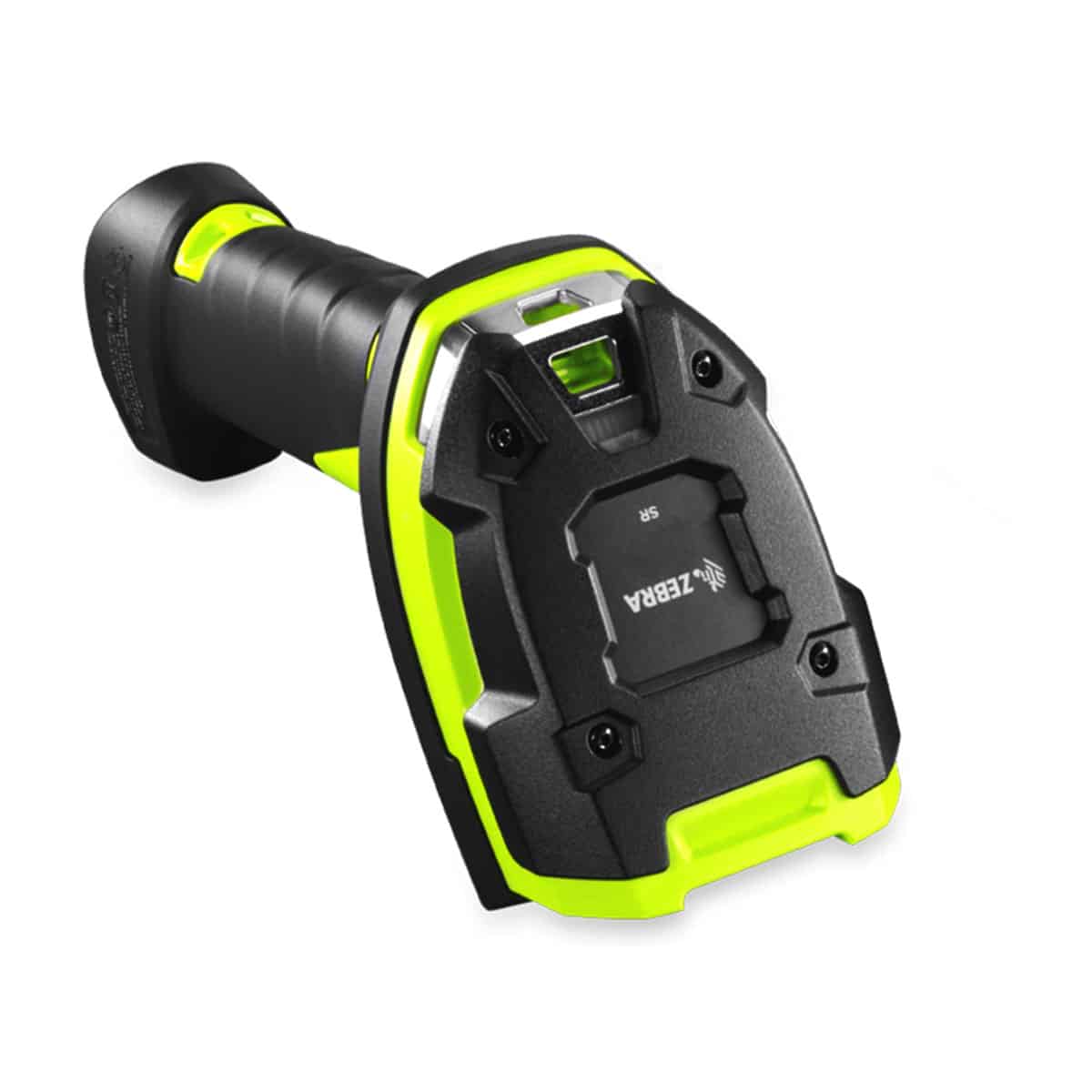

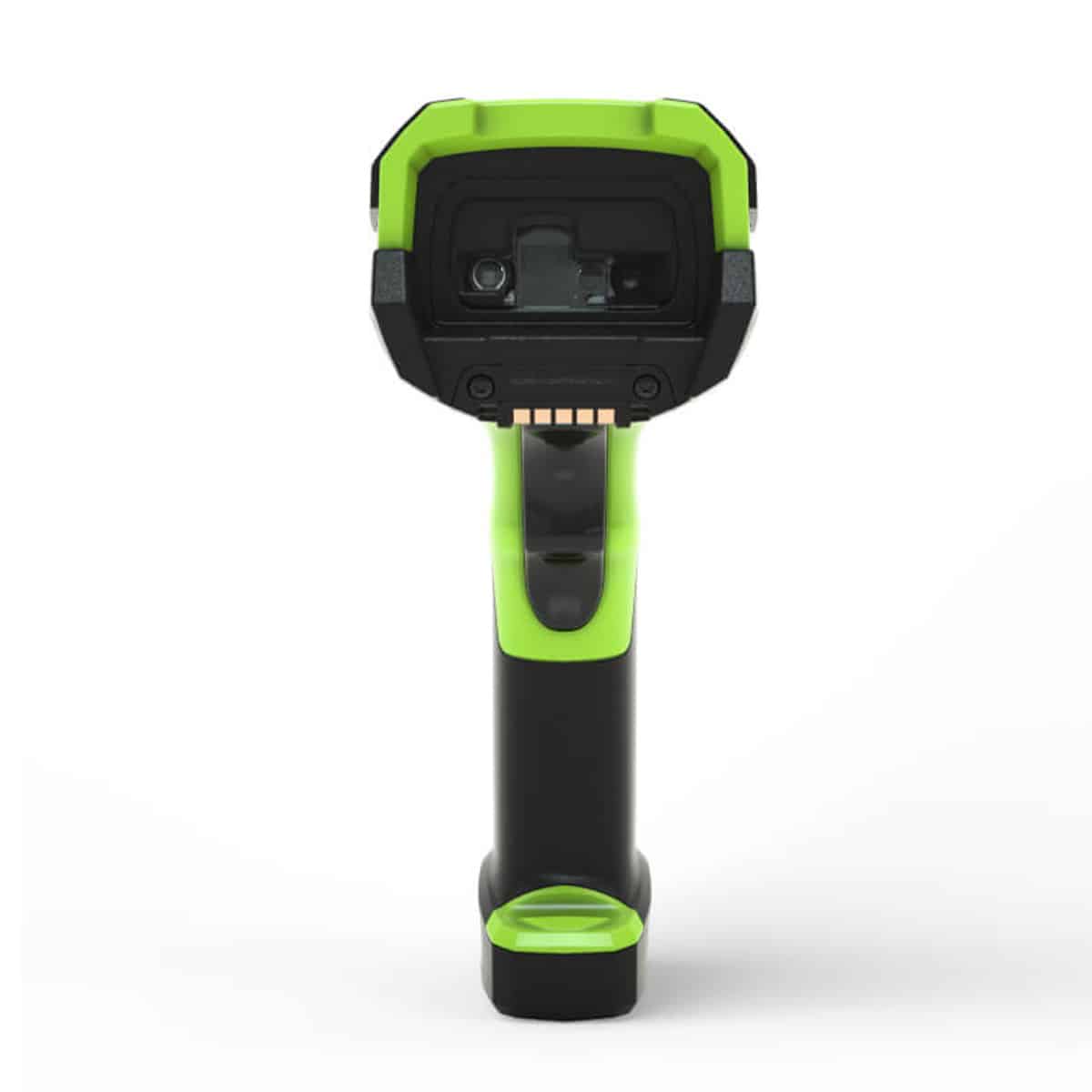

Zebra LI3678-SR Standard Range Cordless Kit

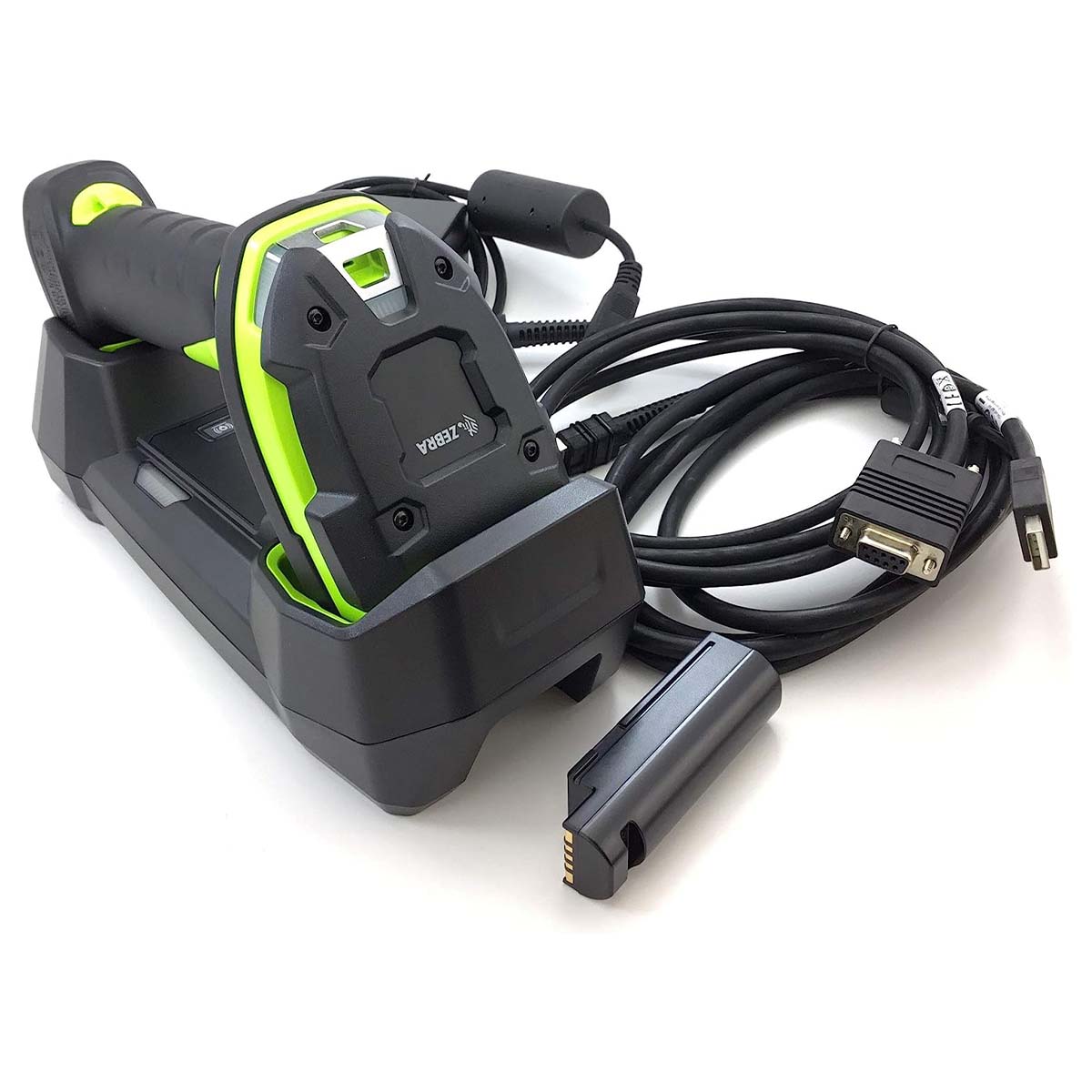

Zebra LI3678-SR Rugged Green Vibration Motor Standard Cradle USB (No Line Cord) KIT: LI3678-SR0F003VZWW Scanner, CBA-U42-S07PAR Shielded USB Cable (supports 12V p/s), STB3678-C100F3WW Cradle, PWR-BGA12V50W0WW Power Supply, CBL-DC-451A1-01 DC Cable- Add CAIEC power cable
Introducing the Zebra LI3678-SR Standard Range Cordless Kit: Unmatched Scanning Precision
Elevate your warehouse or manufacturing operations with the Zebra LI3678-SR Standard Range Cordless Kit, the absolute best in 1D barcode scanning at standard ranges. Our ultra-rugged scanner kit is packaged with everything you need to start scanning with ease, including the LI3678-SR0F003VZWW Scanner, a shielded USB Cable, a Cradle, a Power Supply, and a DC Cable. With this kit at your disposal, you can effortlessly capture any 1D barcode in virtually any condition, be it printed on a label or displayed on a screen.Superior Scanning Performance on Any 1D Barcode, in Any Condition
The Zebra LI3678-SR scanner stands out in the market with its ability to read 1D barcodes faster than any other scanner, regardless of their condition. Even under heavy shrinkwrap or when damaged, dirty, or poorly printed, this advanced linear imager captures barcodes seamlessly. Offering 30% more working range than competitive devices, it delivers extraordinary productivity with no need to pause between scans.Ultra-Rugged—the Most Indestructible Design in its Class
True to the ultra-rugged name, the Zebra LI3678-SR scanner is virtually indestructible, ready for the world's harshest environments. With the highest drop, tumble, and sealing specifications in its class, the scanner can survive 10 ft. drops to concrete, 7,500 tumbles, and is both dustproof and waterproof. Regardless of extreme heat, cold, or humidity, the LI3678-SR scanner performs seamlessly—indoors, outdoors, and even in the freezer.Crispest Aiming Pattern for Accurate Barcode Capture
Equipped with the industry’s sharpest, brightest aiming pattern, the Zebra LI3678-SR scanner ensures first-time accurate capture of barcodes in pick lists. The unique design of our scanner guarantees reliable, corrosion-free charging over the life of the device, making it a worthwhile investment for your operations.LI3678-SR3U42A0S1W
Specification |
Description |
|---|---|
| Dimensions | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D
Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D |
| Weight | Corded: 10.1 oz./287 g
Cordless: 13.6 oz./386.5 g |
| Input Voltage Range | Host powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max. |
| Operating Current | LI3608 (corded): 170 mA (RMS typical) |
| Standby Current | LI3608 (corded): 40 mA (RMS typical) |
| Color | Industrial Green |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge
Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
| Scans per Full Charge | 140,000+ |
| Illumination | Two (2) 617nm Amber LEDs |
| Aimer | 655 nm laser |
| Imager Field of View | 35° |
| Image Sensor | 1,500 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Types Skew/Pitch/Roll | Skew: ± 65°
Pitch: ± 65° Roll: ± 45° |
| Decode Capabilities² | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| Operating Temp. | Corded: -22° F to 122° F/-30° C to 50° C
Cordless: -4° F to 122° F/-20° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | LI36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature |
| LI3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C | |
| LI3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C | |
| Tumble Specification | 7500 3.3 ft./1.0 m tumbles |
| Sealing | Scanner: IP65 and IP68 per applicable IEC sealing specifications |
| FLB cradle: IP65 | |
| ESD | Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity | 0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight) |
| 123Scan | Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports |
| Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information |
| Network Connect | Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network |
| Wireless Connectivity | Bluetooth Radio: Bluetooth Class 1, Version 4.0 (LE), serial port (SPP)and HID profiles |
| Data Rate: 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth, 1 Mbit/s (0.27 Mbit/s) for Low Energy | |
| Radio Range: Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) | |
| Regulatory | RoHS EN 50581: 2012 |
| Electrical Safety | EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013 |
| US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 | |
| LED Safety | International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED) |
| EMI/RFI | IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B |
| Decode Ranges (Typical)³ | Near/Far
Code 39: 4 mil: 4.0-10.0 in./10.2-25.4 cm Code 39: 7.5 mil: 1.5-19.0 in./3.8-48.3 cm UPC: 13 mil (100%): 1.0-31.0 in./2.5-78.7 cm Code 39: 20 mil: 1.0-42.0 in./0-106.7 cm |
For more detailed specifications, please visit the official product specification page.
To learn more about Data Capture DNA and its applications, visit www.zebra.com/datacapturedna.
To see a complete warranty statement,click here for the Zebra’s warranty page.
