Ubiquiti UniFi AC Mesh + 3 YRS Warranty
Ubiquiti UniFi AC Mesh + 3 YRS Warranty
Features:
Mesh-Compatible WiFi5 Access Point with Customizable Antennas + 3YR Warranty
Related Products:
No ratings on this product.
Categories: Network Products
Ubiquiti UniFi AC Mesh: Versatile and Powerful Wireless Solution

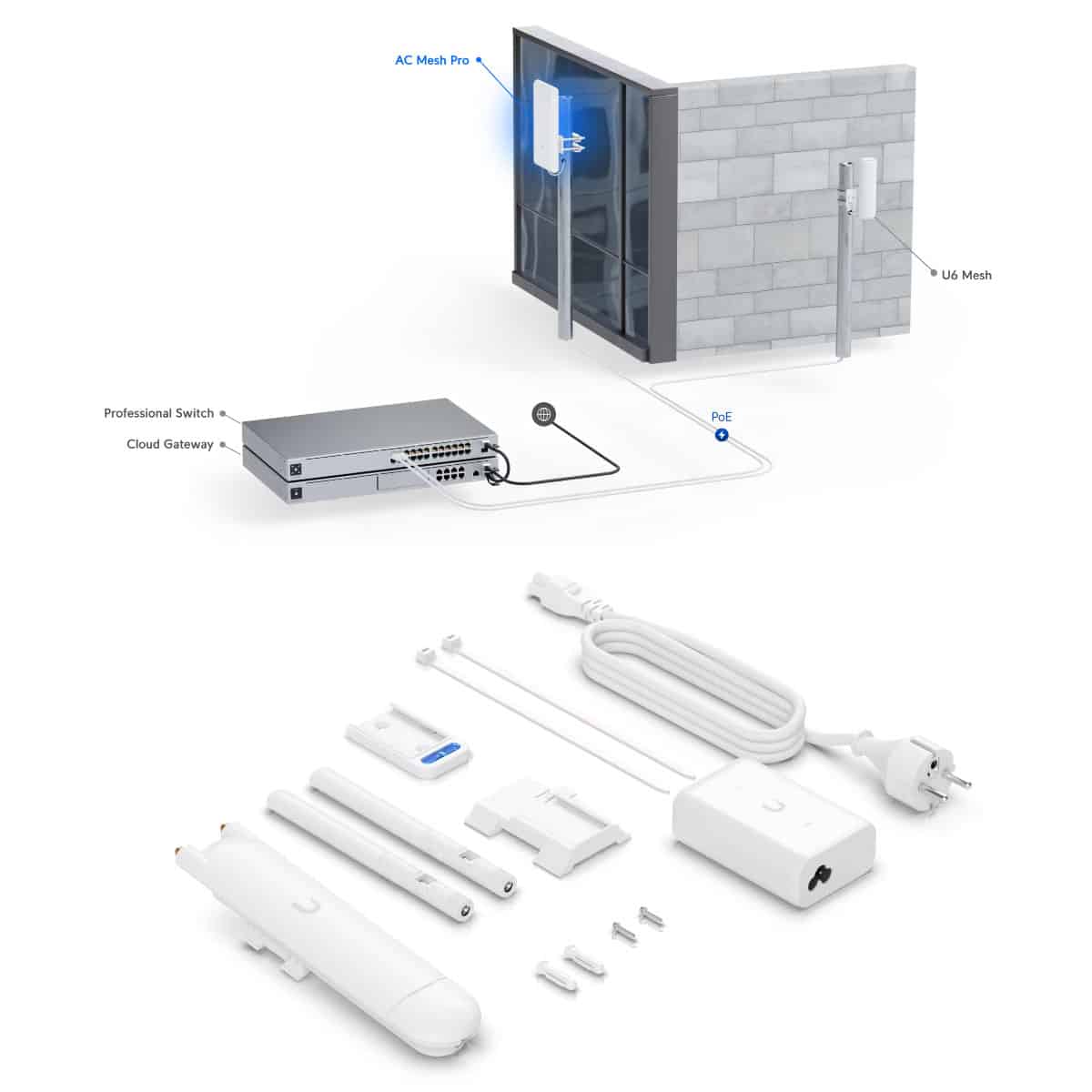

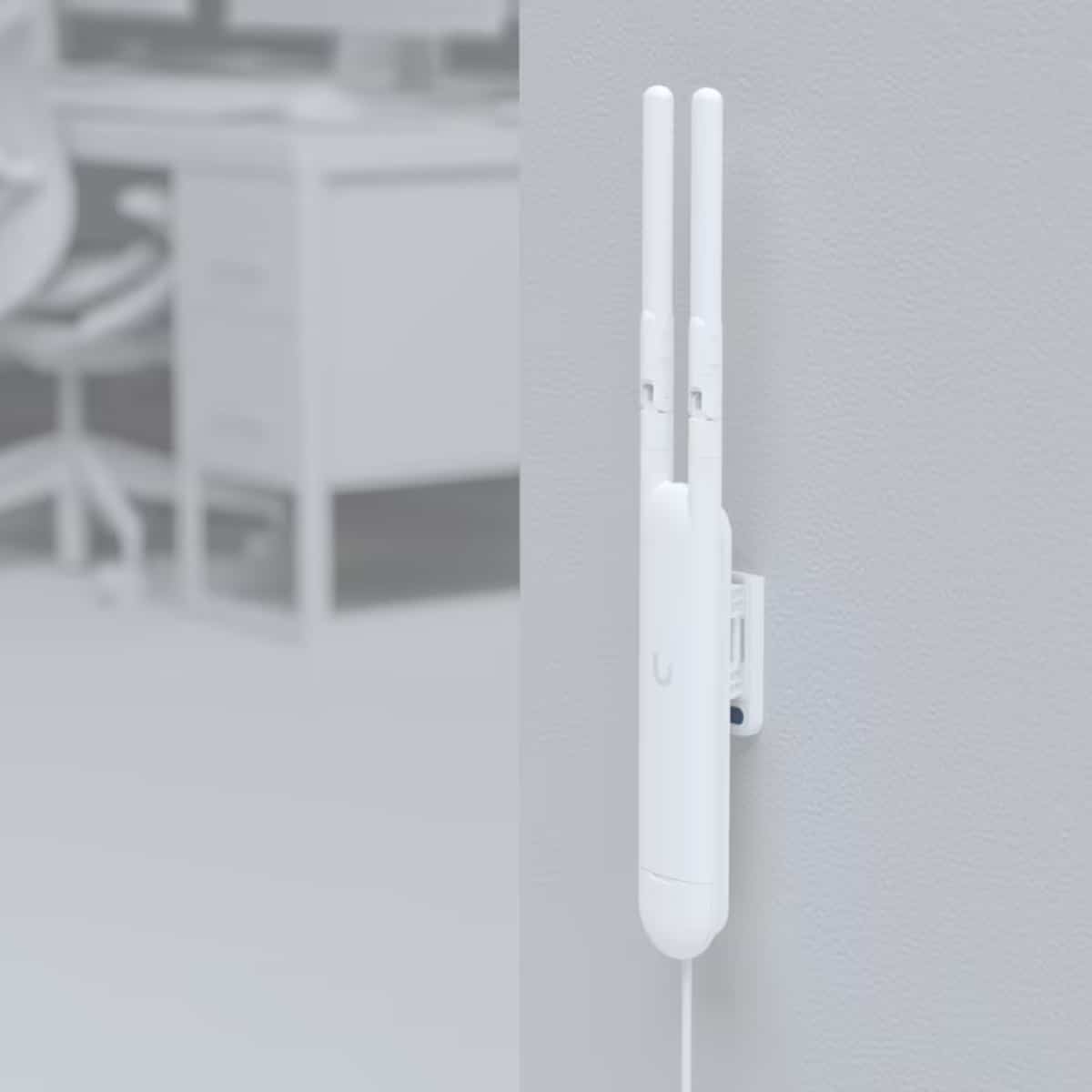

Enhance your network with the Ubiquiti UniFi AC Mesh, a robust and versatile access point designed for both indoor and outdoor use. This compact device offers an expansive coverage of 140 m² (1,500 ft²) and supports over 250 connected devices, making it ideal for medium to large-sized areas. Powered by WiFi5 with 2x2 MIMO technology, it ensures reliable and fast wireless performance. The UniFi AC Mesh stands out with its detachable antenna and compatibility with the optional UMA-D antenna, offering flexibility and enhanced range coverage. Additionally, the device features a weather-resistant enclosure, making it perfect for outdoor deployment in various environmental conditions. Powered using PoE, with a power adapter included for single unit purchases, installation and power management are straightforward. The UniFi AC Mesh can be easily mounted on a wall, pole, or Ubiquiti high-gain antenna, providing various deployment options to suit your specific needs. The device is managed through the feature-rich UniFi Controller, allowing for detailed analytics, RF mapping for optimal placement, and advanced RF performance features. With its capability for wireless uplink and support for guest portal/hotspot functionality, the UniFi AC Mesh is a comprehensive solution for extending your wireless network reach efficiently and affordably.Extend your peace of mind with an additional three-year warranty on top of the standard coverage; learn more about this extended warranty option.
UAP-AC-M
Technical Specifications
| Mechanical | |
| Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4″) |
| Weight | 152 g (5.4 oz) |
| Hardware | |
| Networking interface | (1) GbE port |
| Management interface | Ethernet
Bluetooth |
| Power method | 24V passive PoE (Pairs 4, 5+; 7, 8 return)
PoE alternative A (Pairs 1, 2+; 3, 6 return) |
| Power supply | Gigabit PoE adapter 24V, 0.5A*
*5-packs do not come with PoE adapters. |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 8.5W |
| Max. TX power
2.4 GHz 5 GHz |
20 dBm20 dBm |
| MIMO
2.4 GHz 5 GHz |
2 x 22 x 2 |
| Throughput rate
2.4 GHz 5 GHz |
300 Mbps867 Mbps |
| Antenna gain
2.4 GHz 5 GHz |
3 dBi4 dBi |
| Button | Factory reset |
| Mounting | Wall/pole/fast-mount (Included) |
| Operating temperature | -30 to 70° C (-22 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, UKCA |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| VLAN | 802.1Q |
| BSSID | Up to 4 per radio |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
