Technical Specifications
Mechanical |
|
|---|---|
| Dimensions | Ø140 x 90 mm (Ø5.51 x 3.54″) |
| Weight | 376 g (13.3 oz) |
| Enclosure material | UV-resistant polycarbonate |

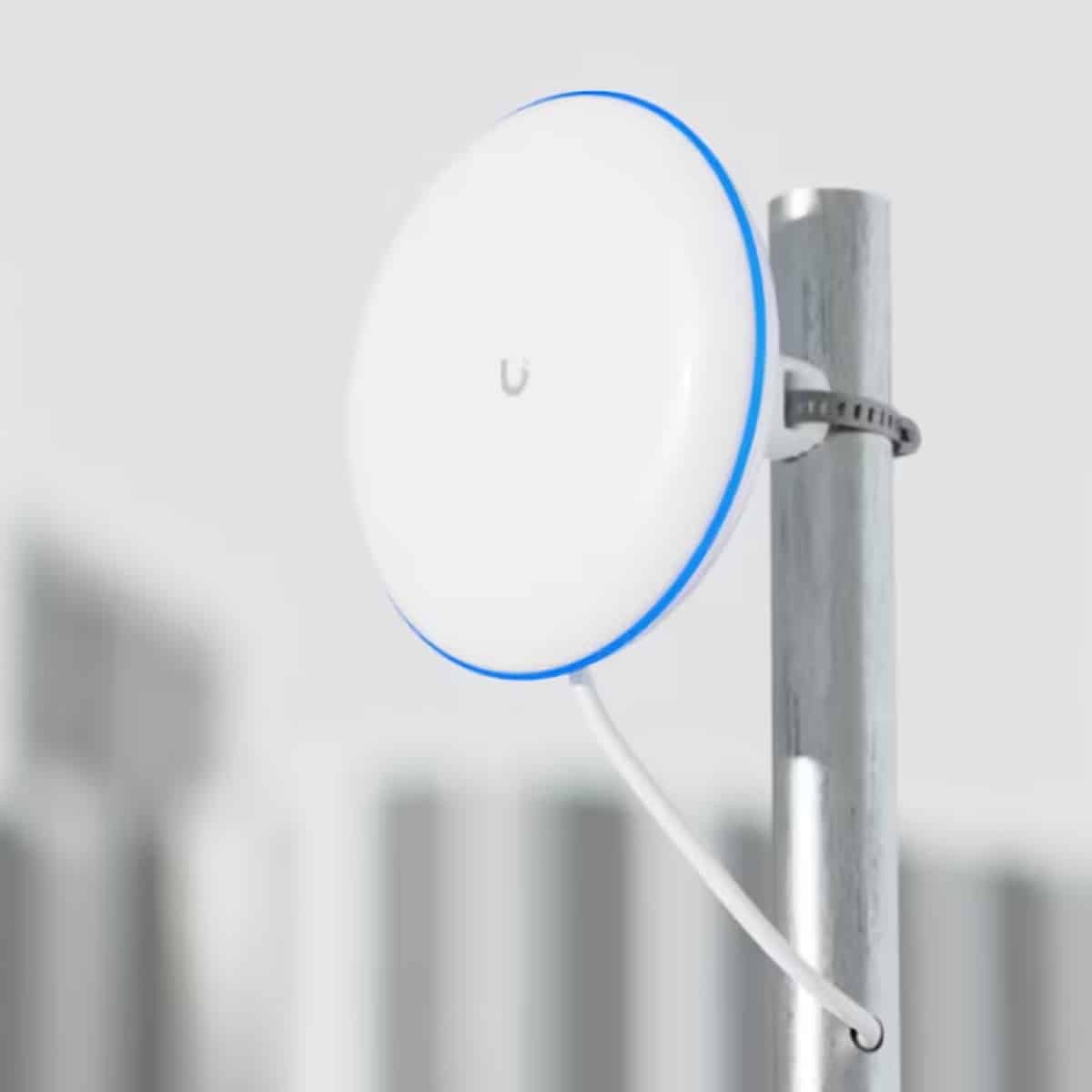

| Mounting | Pole-mount (Kit included)
Wall-mount (Not included) |
| Wind loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
Hardware |
|
| Networking interface | (1) 10/100/1000 MbE port |
| Management interface | Ethernet
Bluetooth |
| Power method | Passive PoE (48V) |
| Power supply | UniFi PoE switch
48V, 0.32A Gigabit PoE adapter (Included) |
| Max power consumption | 11W |
| ESD/EMP protection | ± 24kV Contact/Air |
| Antenna Gain
2.4 GHz (BLE) 5 GHz 60 GHz |
2 dBi
10 dBi 17.2 dBi |
| GPS | Yes |
| Max. TX power
5GHz 60GHz |
25 dBm
32 – 36.5dBm |
| 60 GHz elevation beamwidth | 30° |
| 60 GHz azimuthal coverage | ±60° |
| LEDs | R/G/B |
| Button | Factory-reset |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Operating Frequency (MHz) |
|
| Worldwide | 5150 – 5875
57,000 – 66,000 |
| US/CA | U-NII-1: 5150 – 5250
U-NII-3: 5725 – 5850 57,000 – 66,000 |
Bluetooth (MHz) |
|
| Worldwide | 2400 – 2483.5 |
