Specification |
Details |
|---|---|
| Dimensions | 442.4 x 285.4 x 43.7 mm (Space efficient) |
| Weight | 4.3 kg without brackets, 4.4 kg with brackets |
| Material | Durable SGCC steel |
| Management Interface | Ethernet In-Band |
| Networking Interface | 24 GbE RJ45 ports, 2 1/10G SFP+ ports |
| PoE Interface | 16 PoE/PoE+ ports, 8 60W PoE++ ports |
| Throughput | Total non-blocking throughput: 44 Gbps |
| Switching Capacity | 88 Gbps |
| Forwarding Rate | 65.472 Mpps |
| Power Method | Universal input, 100—240V AC, 50/60 Hz |
| Power Supply | Internal AC/DC, 450W |
| Total PoE Availability | 400W |
| Max. PoE per Port | PoE+: 32W, PoE++: 64W |
| Display | 1.3″ Touchscreen |
| Operating Temperature | -5 to 40° C |
| Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Application Requirements | UniFi Network version 5.10.5 and later |

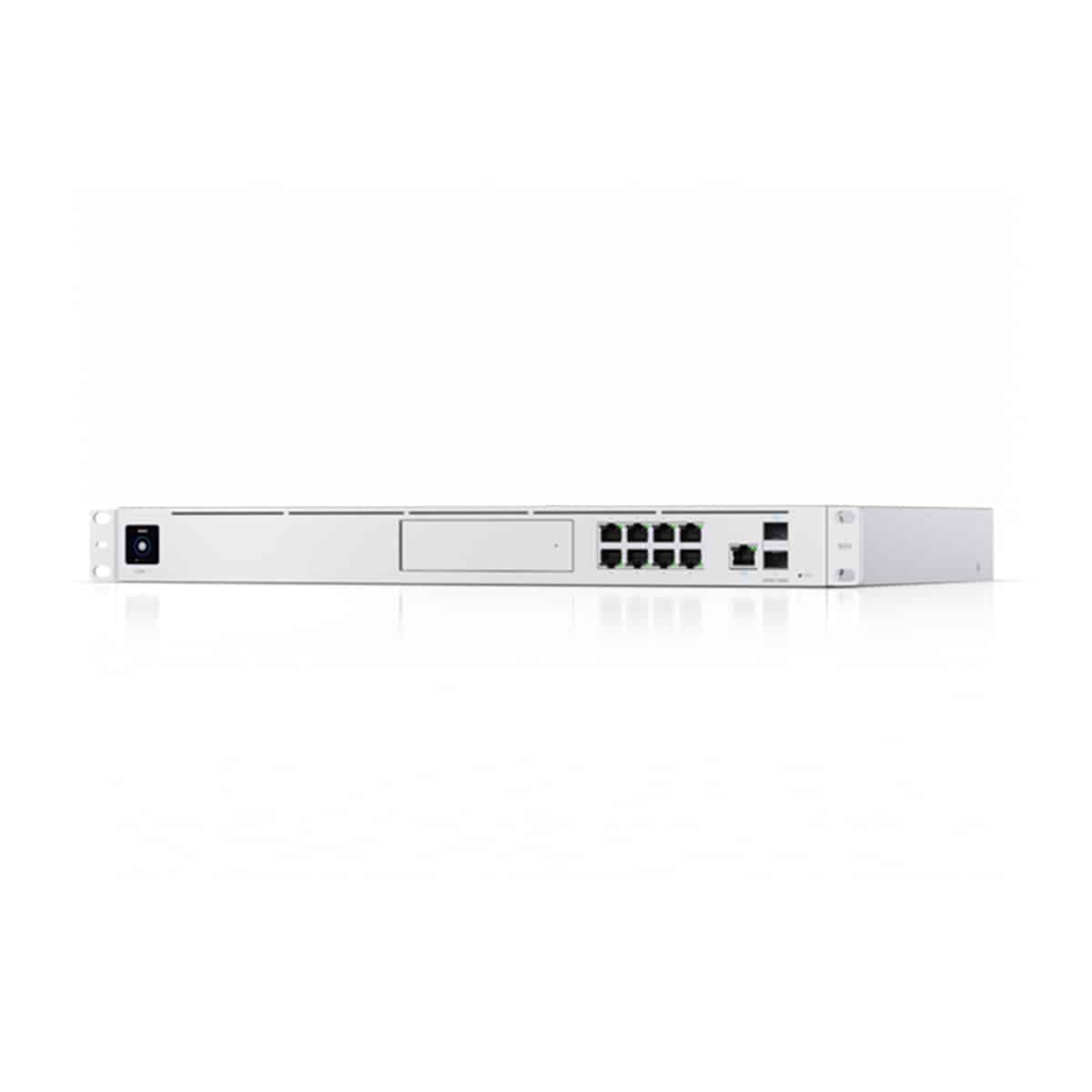

Transform your network with the Ubiquiti UniFi Dream Machine Pro - the all-in-one networking powerhouse.
Optimized for small to medium-sized businesses, this innovative solution combines all the networking essentials into a single device, making your network management smoother and more effective. Let's delve into the unique features that make this device stand out:
Streamlined Integration
The UniFi Dream Machine Pro offers an integrated security gateway, 10G SFP+ WAN, an eight-port Gigabit switch, and a hard drive bay, allowing you to optimize your network infrastructure and do away with multiple devices.High-Performance Processing
Packed with a 1.7 GHz Quad-Core processor, 4GB of memory, and 16GB onboard storage, it offers high-speed performance and supports an intrusion detection system with a maximum throughput of 3.5 Gbps for robust network security.Managed Switch
It features a fully managed switch with eight Gigabit RJ45 ports and a 10 Gbps SFP+ LAN port, enabling easy network expansion and efficient network management.Convenient Display
The 1.3" touchscreen display gives you real-time updates, making it easy to manage and resolve network issues.UniFi Protect Integration

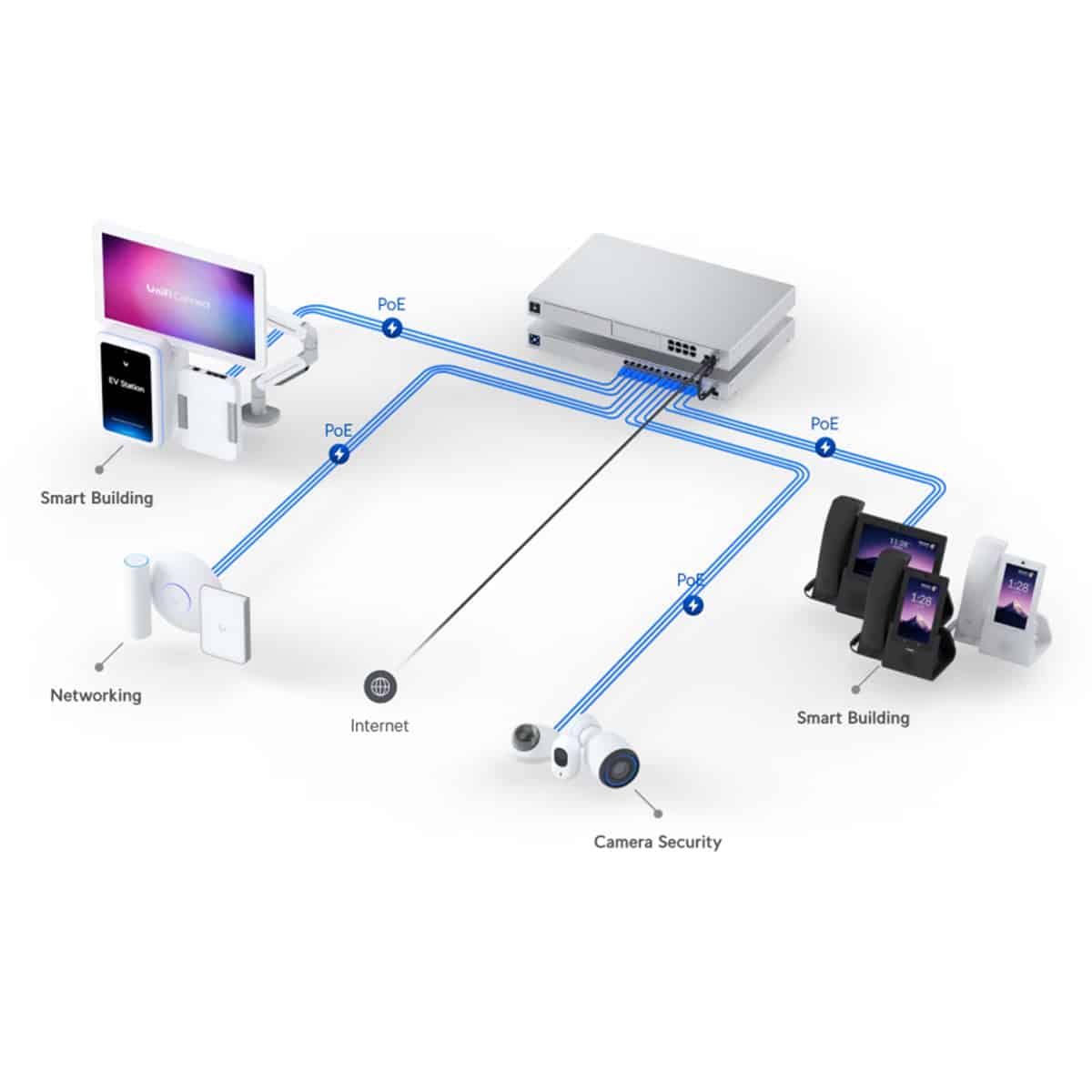

The UniFi Dream Machine Pro integrates perfectly with UniFi Protect for professional-grade video surveillance and network video recording.Advanced Redundancy
With features like USP-RPS redundant power and U-LTE backup connectivity, it ensures uninterrupted network connectivity.UniFi Network Controller
Effortlessly manage your network performance with the UniFi Network Controller. The Ubiquiti UniFi Dream Machine Pro takes your network management to the next level with enhanced performance, streamlined management, and comprehensive security.Extend your peace of mind with an additional three-year warranty on top of the standard coverage;Â learn more about this extended warranty option.
UDM-Pro
