Technical Specifications
| Mechanical | |
|---|---|

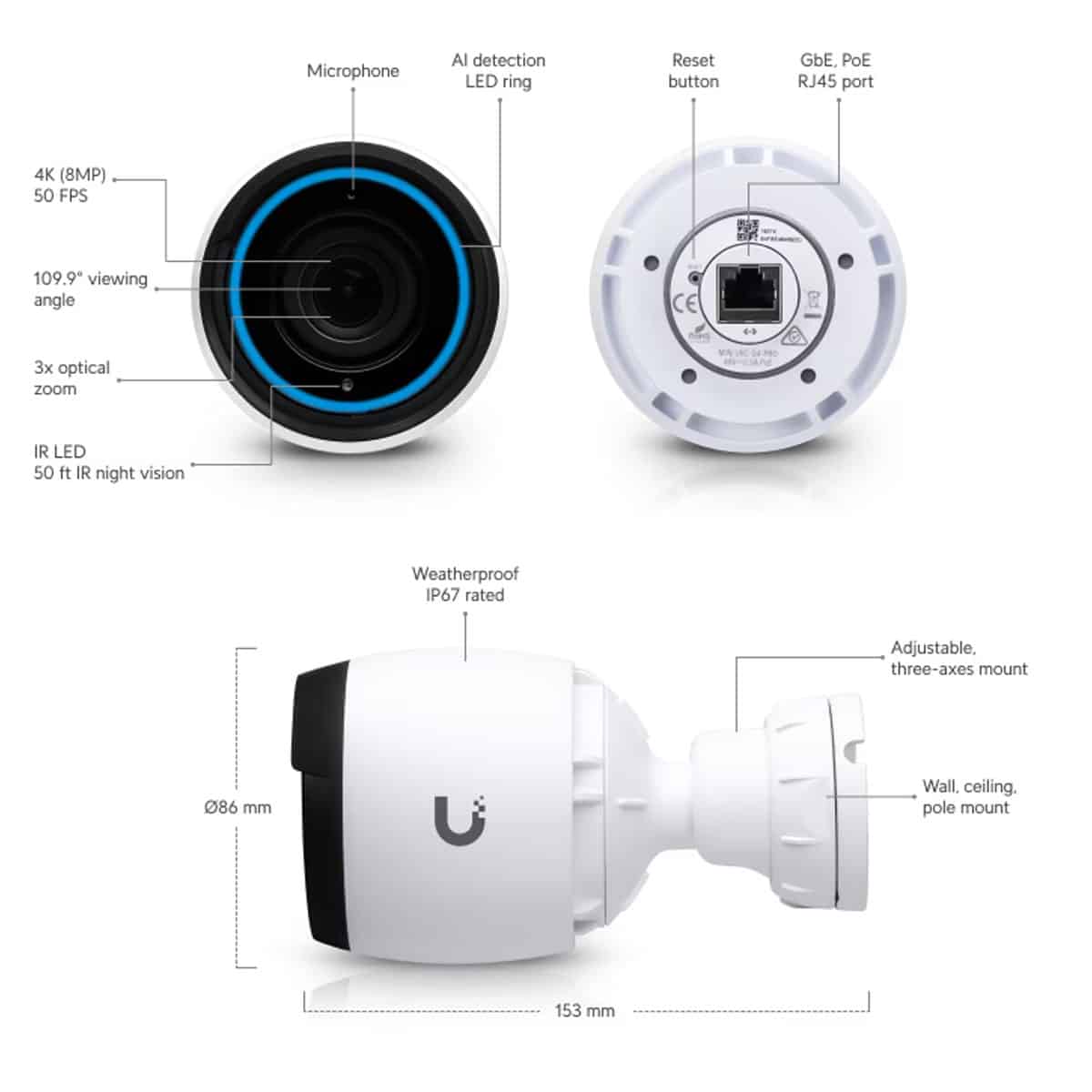

| Dimensions | Ø86 x 153 mm (Ø3.39 x 6.02″) |
| Weight | 700 g (1.54 lb) |
| Enclosure materials | Polycarbonate, aluminum alloy |
| Mounting material | Aluminum alloy |
| Weatherproofing | IP67 |
| Optics | |
| Sensor | 1/2″ 8MP sensor |
| Lens | F 4.1 – 12.3 mm; f/1.53 – f/3.3 |
| View angle | Wide: H 109.9°, V 60°, D 127.7°
Zoom: H 35°, V 19.8°, D 40° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Video compression | H.264 |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Max. frame rate | 50 FPS |
| Image settings | Flip, brightness, contrast, 50/60 Hz flicker reduction, WDR, hue, infrared, sharpness, saturation, de-noise |
| System | |
| Networking Interface | GbE RJ45 port |
| Max. power consumption | 12.5W |
| Power method | PoE |
| Button | Factory reset |
| Mounting | Wall/ceiling/pole (Included) |
| Operating temperature | -20 to 50° C (-4 to 122° F) |
| Operating humidity | 0 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
