Ubiquiti UniFi Standard 24 Power-Over-Ethernet (Gen1)+ 3 YRS Warranty

Ubiquiti UniFi Standard 24 Power-Over-Ethernet (Gen1)+ 3 YRS Warranty

Features: Layer 2, 24-Port PoE Switch with Gigabit Connectivity and 26Gbps Throughput + 3YRS Warranty

SKU: US-24-250W

No ratings on this product.

$834.18

100 in stock

Ubiquiti UniFi Standard 24 PoE (Gen1): Robust Networking, Simplified
    Introducing the Ubiquiti UniFi Standard 24 Power-Over-Ethernet (Gen1), a dynamic solution for modern networking needs. This 24-port managed PoE+ Gigabit switch is designed to elevate your network's efficiency and performance. With its 250W of non-blocking throughput switching performance, it ensures smooth and reliable connectivity across all connected devices. The UniFi Switch US-24-250W supports both Gigabit Ethernet RJ45 and SFP ports, complemented by Auto-Sensing IEEE 802.3af/at PoE. This makes it an ideal choice for businesses and power users who require a versatile and powerful networking solution. Beyond its robust performance, the switch offers an impressive suite of advanced Layer-2 switching features and protocols, along with Layer-3 routing capabilities, making it a comprehensive tool for network management. The UniFi Standard 24 PoE (Gen1) is more than just a switch; it's a testament to simplified, powerful networking. It features (24) Gigabit RJ45 ports and (2) SFP ports for enhanced connectivity options. The dedicated serial console port, reserved for future use, adds to its future-proof design. With its total non-blocking throughput of 26Gbps, a switching capacity of 52Gbps, and a forwarding rate of 38.69Mpps, this switch is built to handle intensive data transfer and multiple devices without any lag. The rack-mountable design and a maximum power consumption of 250W make it both The Ubiquiti Extended Warranty - 3 Years Extended Advance Replacement ensures you enjoy peace of mind, confident that your Ubiquiti equipment will always be taken care of, promptly and efficiently.

Extend your peace of mind with an additional three-year warranty on top of the standard coverage; learn more about this extended warranty option.

Technical Specifications

Mechanical

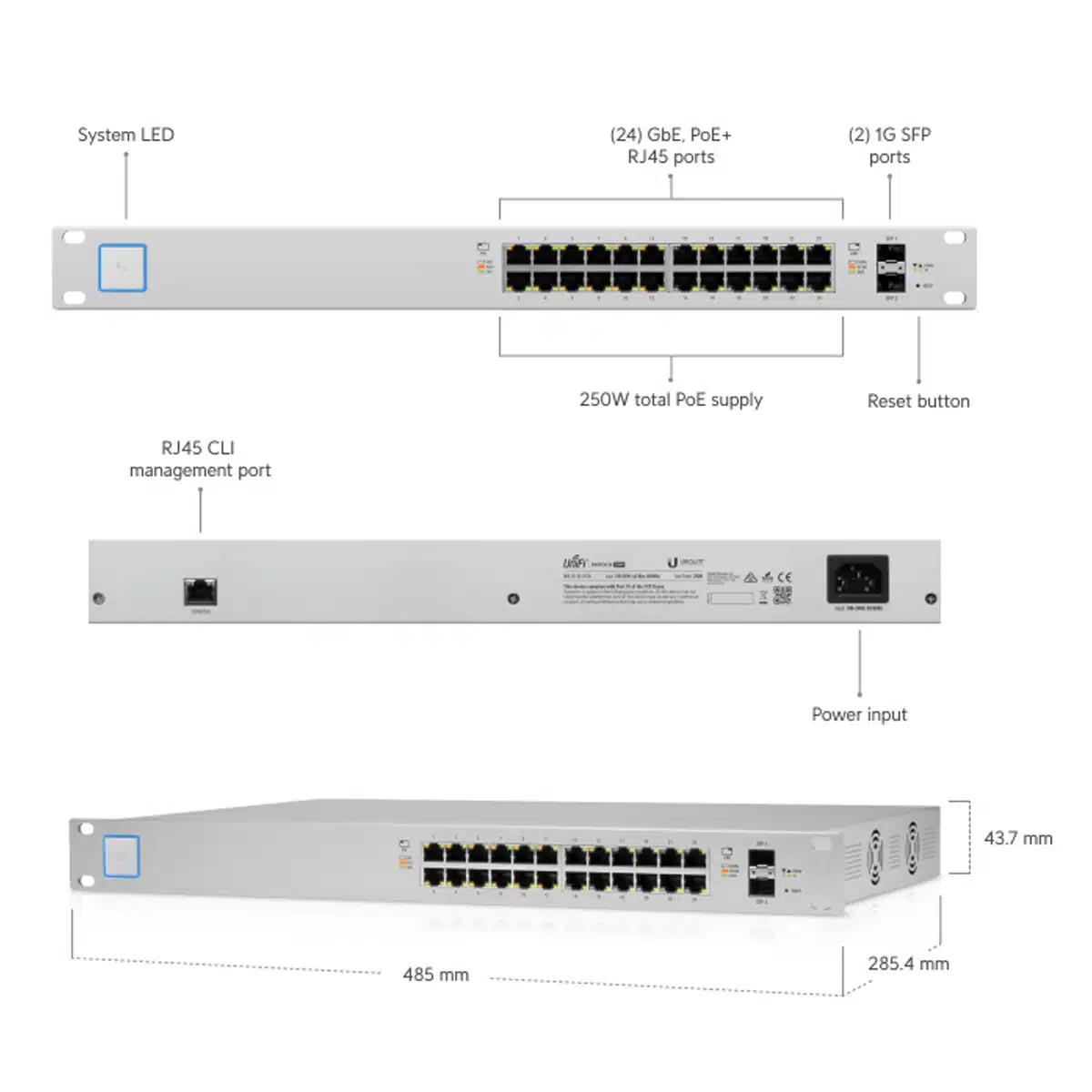

Dimensions 485 x 285.4 x 43.7 mm (19.1 x 11.2 x 1.7″)
Weight 4.8 kg (10.6 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band

(1) RJ45 Serial port Out-of-Band

Networking interface (24) GbE RJ45 ports

(2) 1G SFP ports

PoE interface (24) PoE/PoE+ (Pins 1, 2+; 3, 6-)

24V DC passive PoE (Pins 4, 5+; 7, 😎

Total non-blocking throughput 26 Gbps
Switching capacity 52 Gbps
Forwarding rate 38.69 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 2500W
Supported voltage range 100—240V AC
Max. power consumption Excluding PoE output: 30W

Including PoE output: 250W

Total available PoE 250W
Max. PoE wattage per port by PSE 24V Passive PoE: 17W

PoE+: 34W

Voltage range PoE mode 24V Passive PoE: 20–27V

PoE+: 50—57V

ESD/EMP protection Air: ± 24kV, contact: ± 24kV
Sound level*

Fan level 0

Fan level 1

Fan level 2

Fan level 3

9.1 dBr

14.2 dBr

16.8 dBr

21.2 dBr

* Background noise level: 27.5 dBa.

Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE

Speed/Link/Activity

SFP Speed/Link/Activity
