Ubiquiti UniFi Standard 24 Power-Over-Ethernet + 3 YRS Warranty

Ubiquiti UniFi Standard 24 Power-Over-Ethernet + 3 YRS Warranty

Features: A 24-port, Layer 2 PoE switch with a fanless cooling system.

SKU: USW-24-POE

No ratings on this product.

$837.38

Out of stock

Out of stock
Ubiquiti UniFi Standard 24 Power-Over-Ethernet: Silent Power for Advanced Networks

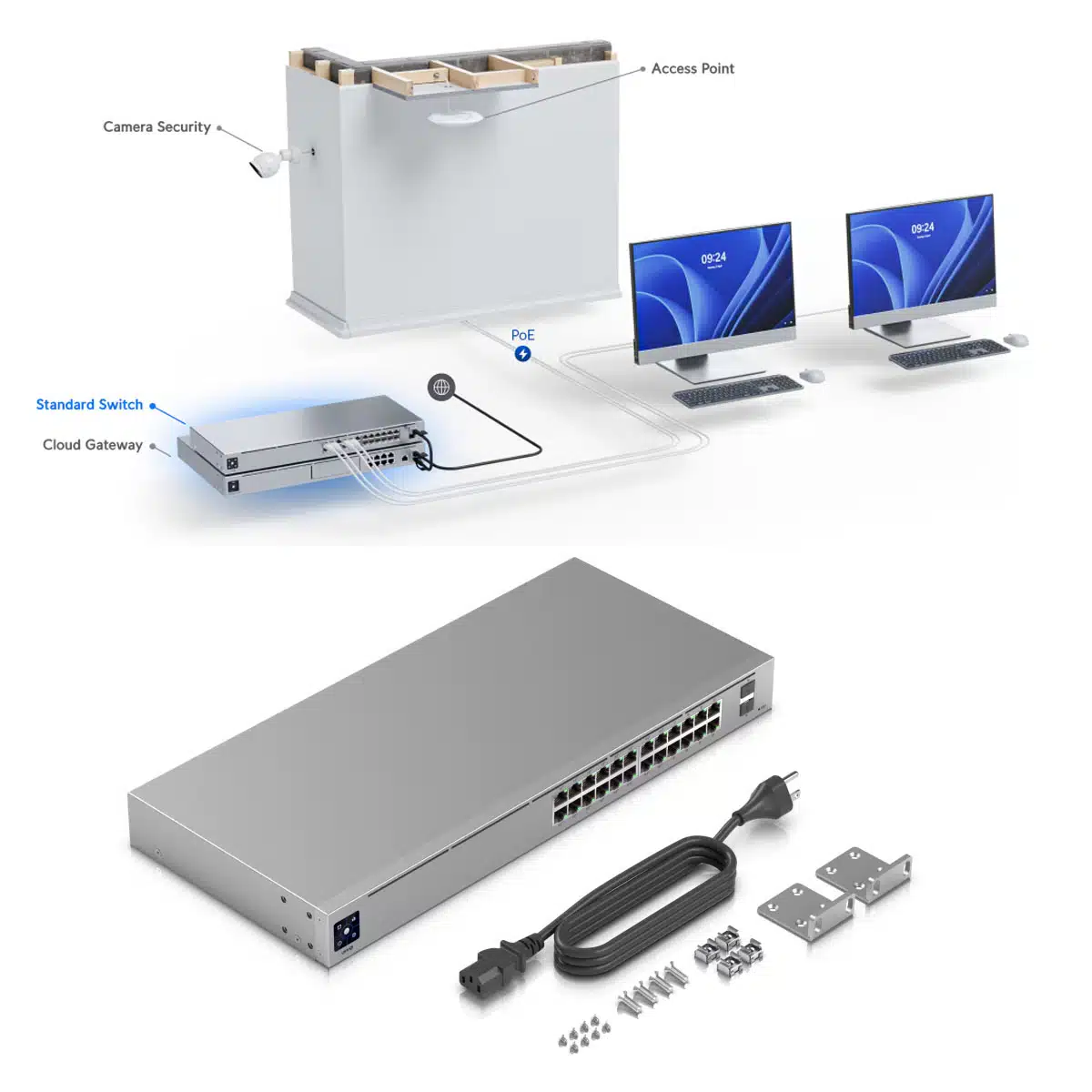

  Experience the next level of network management with the Ubiquiti UniFi Standard 24 Power-Over-Ethernet. This robust Layer 2 switch comes equipped with 24 ports, including 16 GbE PoE+ and 8 GbE ports, complemented by 2 1G SFP ports for expanded connectivity. It's the ideal solution for businesses seeking a powerful yet quiet networking solution, offering 95W total PoE availability to power devices such as VoIP phones, cameras, and access points. The fanless design of the USW-24-POE ensures silent operation, making it perfect for noise-sensitive environments such as offices or libraries. With its compact size, it easily fits into SOHO rack cabinets, streamlining your network setup without taking up excess space. The UniFi Standard 24 PoE isn’t just about providing power; it’s about giving you control. Managed and configured via the UniFi Network Controller and supported by the UniFi mobile app, this switch offers an extensive suite of advanced Layer 2 switching protocols and features. Customize your network with operation modes per port, including switching, mirroring, or aggregate, all accessible through a user-friendly interface. The switch also features a 1.3" touch LCM for convenient status monitoring. Whether you're upgrading an existing network or building a new one, the UniFi Standard 24 PoE delivers the reliability, control, and performance you need to keep your network running smoothly. The Ubiquiti Extended Warranty - 3 Years Extended Advance Replacement ensures you enjoy peace of mind, confident that your Ubiquiti equipment will always be taken care of, promptly and efficiently.

Extend your peace of mind with an additional three-year warranty on top of the standard coverage; learn more about this extended warranty option.

Technical Specifications

Mechanical

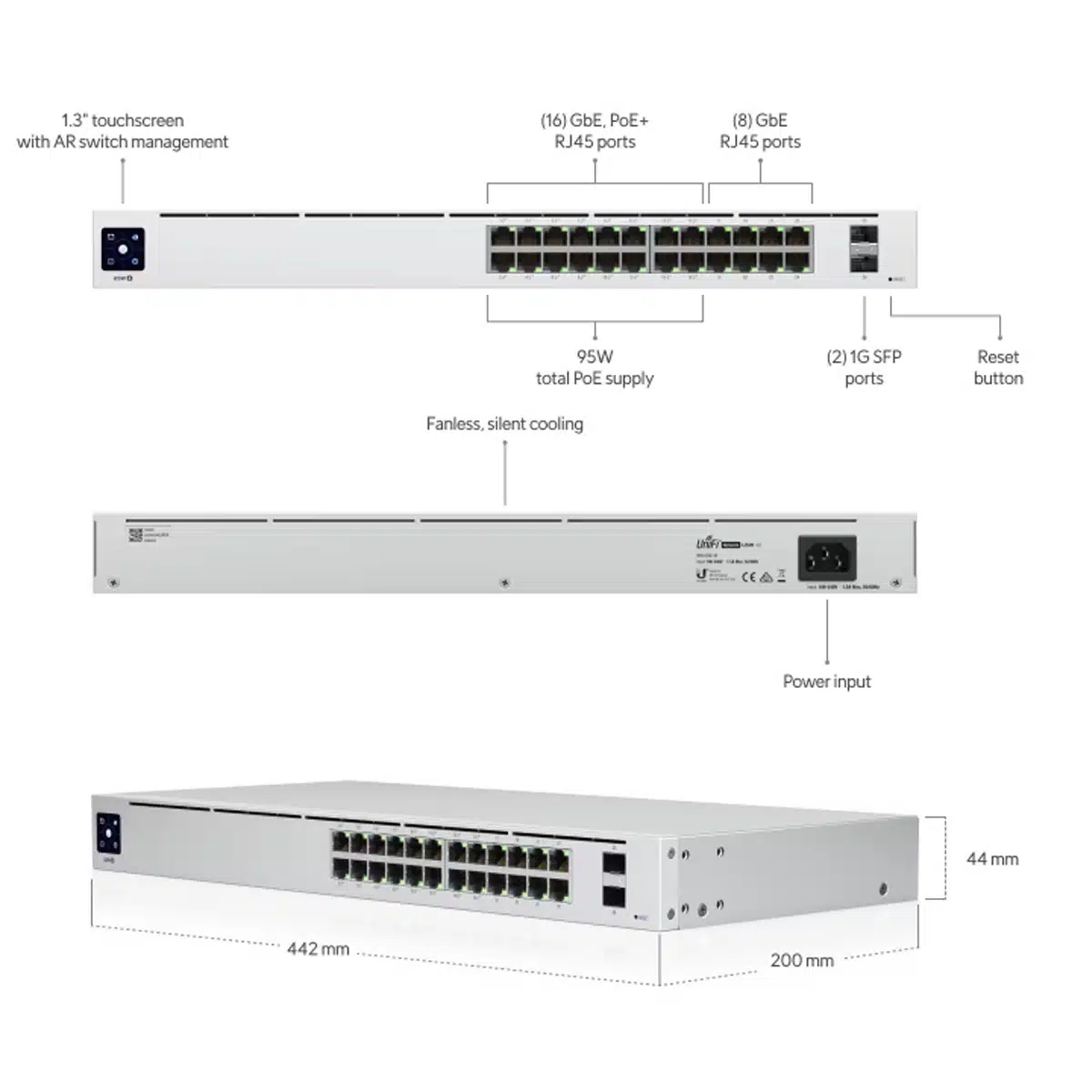

Dimensions 442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7″)
Weight Without mounting brackets: 3 kg (6.6 lb)

With mounting brackets: 3.1 kg (6.8 lb)

Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports

(2) 1G SFP ports

PoE interface (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 26 Gbps
Switching capacity 52 Gbps
Forwarding rate 38.69 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 120W
Supported voltage range 100—240V AC
Max. power consumption 25W (Excluding PoE output)
Total available PoE 95W
Max. PoE wattage per port by PSE PoE+: 32W
Voltage range PoE mode PoE: 44—57V

PoE+: 50—57V

ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3″ touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE

Speed/link/activity

SFP Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
