Ubiquiti UniFi U6 Mesh + 3 YRS Warranty

Ubiquiti UniFi U6 Mesh + 3 YRS Warranty

Features: Sleek WiFi 6 Access Point for Indoor/Outdoor Mesh Networking.

SKU: U6-Mesh

No ratings on this product.


40 in stock

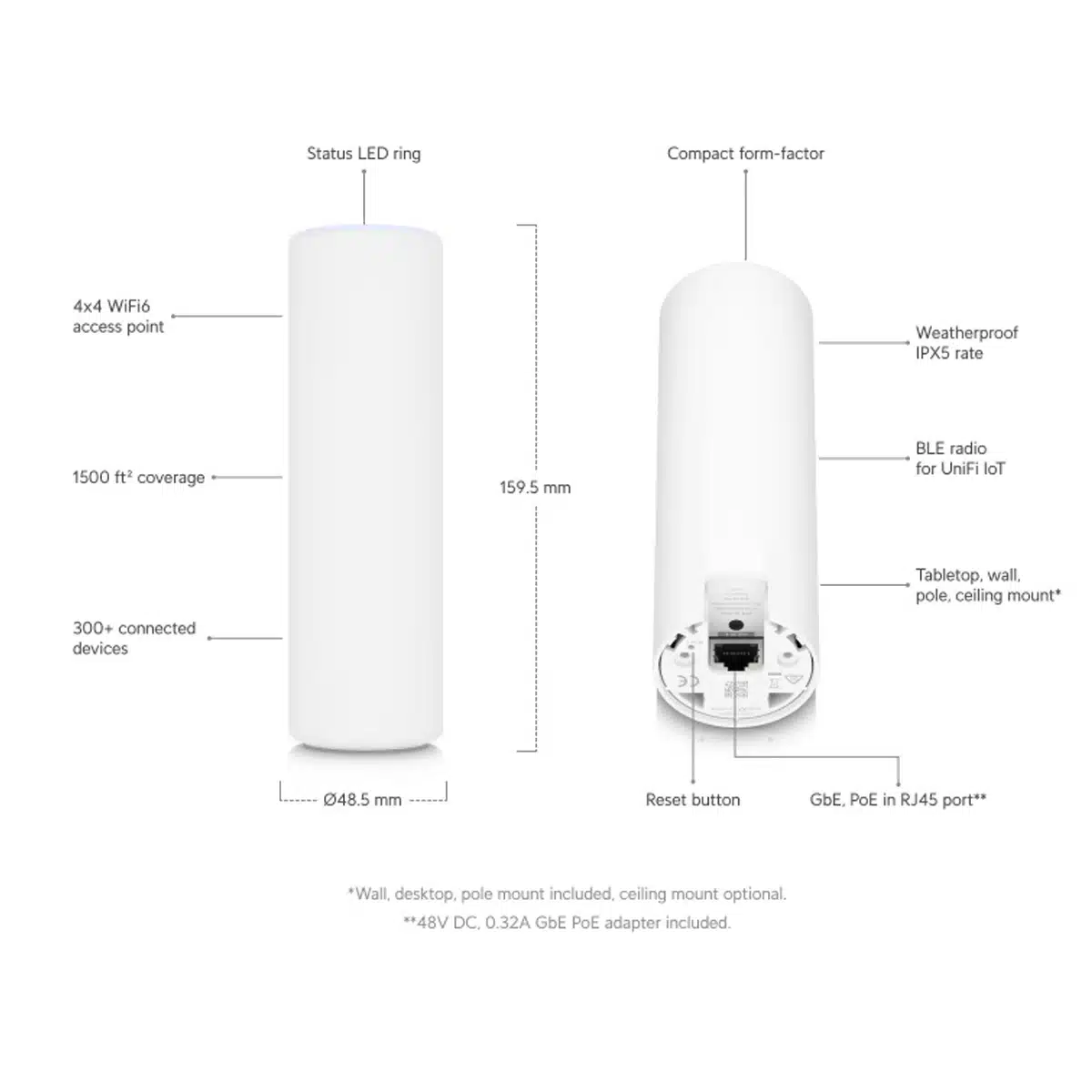

Ubiquiti UniFi U6 Mesh: Superior Connectivity Inside and Out

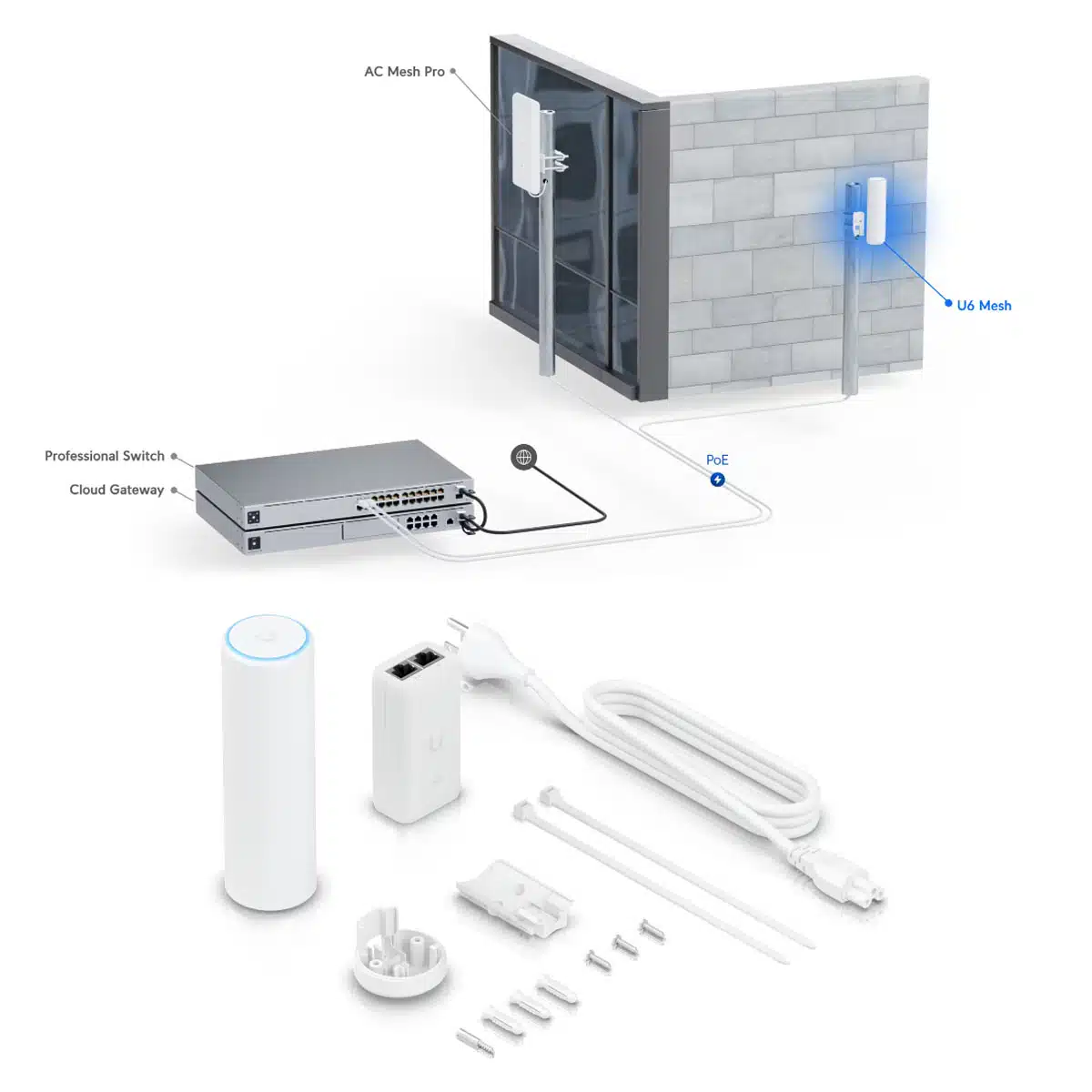

Embrace the future of wireless networking with the Ubiquiti UniFi U6 Mesh, a sleek, WiFi 6 access point expertly designed for both indoor and outdoor mesh applications. This powerful device offers an impressive 140 m² (1,500 ft²) coverage area and can support over 300 connected devices simultaneously, ensuring a robust and seamless online experience. Featuring advanced WiFi6 technology with 4x4 MIMO, the U6 Mesh delivers a high-performance network solution, capable of reaching an aggregate throughput rate of up to 5.3 Gbps. This is achieved through its dual-band capabilities, with the 5 GHz band supporting 4x4 MU-MIMO and OFDMA for a 4.8 Gbps throughput rate, and the 2.4 GHz band offering a 573.5 Mbps throughput rate. Its compact form factor offers versatile mounting options, including tabletop, wall, or pole placements, making it a perfect fit for any environment.   The UniFi U6 Mesh is more than just an access point; it's a testament to versatile and durable design. With an IPX5-rated, weatherproof housing, it is equipped to handle outdoor conditions, ensuring reliable performance wherever it's placed. Additionally, the device operates at full 4x4 MIMO with 160 MHz channels, facilitating high-capacity wireless uplinks and faster data transfer. Setup is a breeze, thanks to its plug-and-play nature, and it can be fully managed with the UniFi Network web application or mobile app. Whether expanding your home Wi-Fi network or enhancing enterprise connectivity, the UniFi U6 Mesh provides the coverage, speed, and reliability you need.

Extend your peace of mind with an additional three-year warranty on top of the standard coverage; learn more about this extended warranty option.

Technical Specifications

Dimensions Ø48.5 x 159.5 mm (Ø1.9 x 6.28″)
Weight 400 g (0.88 lb)
Enclosure material Plastic, aluminum
Mount materials Plastic
Weatherproofing IPX5
Networking interface (1) GbE RJ45 port
Management interfaces Ethernet


Power method PoE
Power supply UniFi PoE switch

48V, 0.32A PoE adapter (included)

Supported voltage range 44—57V DC
Max. power consumption 11.4W
Max. TX power

2.4 GHz

5 GHz

22 dBm

26 dBm


2.4 GHz

5 GHz

2 x 2 (UL MU-MIMO)

4 x 4 (DL/UL MU-MIMO)

Throughput rate

2.4 GHz

5 GHz

573.5 Mbps

4.8 Gbps

Antenna gain

2.4 GHz

5 GHz

3 dBi

5 dBi

LEDs White/blue
Button Factory reset
Mounting Wall, desktop, pole mount (Included)

Ceiling mount (Optional)

Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
WiFi standards 802.11a/b/g

WiFi 4/WiFi 5/WiFi 6

Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Zero wait DFS Yes*

*Supported with upcoming firmware versions

Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network Version 6.2.51 and later
