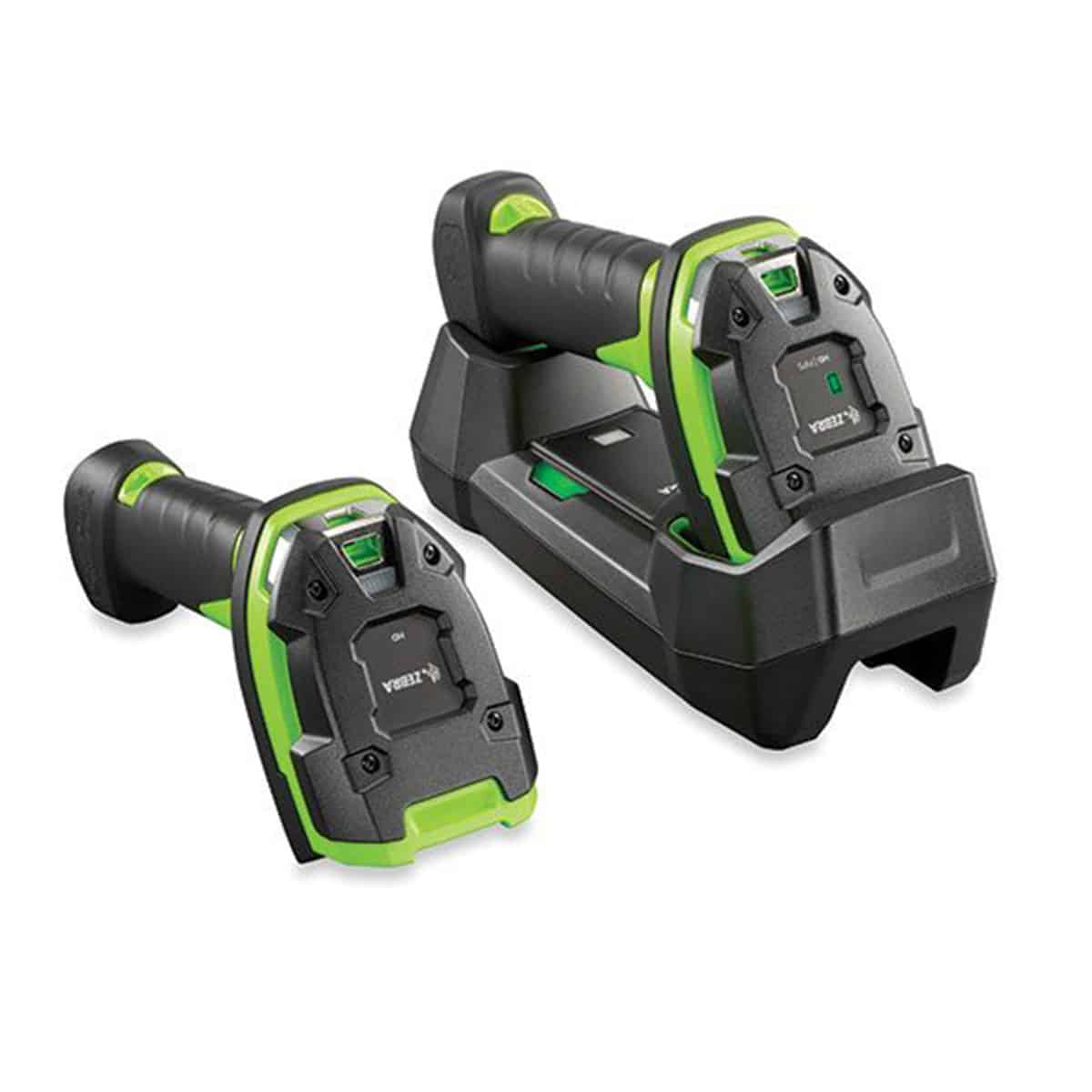

Zebra DS3678-HD (Bluetooth) Kit

Zebra DS3678-HD (Bluetooth) Kit

Kit Includes: Scanner, Cable, Cradle, Power Supply

Features: High Density - Scans 1D and 2D Barcodes

SKU: DS3678-HD3U42A0SFW

No ratings on this product.

$1,369.86

Out of stock

Out of stock
Zebra DS3678-HD Rugged Green Standard Cradle USB (No Line Cord) Kit: DS3678-HD2F003VZWW Scanner, CBA-U42-S07PAR Shielded USB Cable (Supports 12V P/S), STB3678-C100F3WW Cradle, PWR-BGA12V50W0WW Power Supply, CBL-DC-451A1-01 DC Cable
Add CAIEC power cable

The Zebra DS3678-HD Kit is a cordless scanner designed for use in industrial environments. This state-of-the-art product helps manufacturing plant workers capture small and dense 1D and 2D barcodes that are commonly used in electronics and medical equipment manufacturing.

This ultra-rugged scanner is virtually indestructible and can withstand the toughest environments with ease. The enhanced 10 ft./3 m drop spec to concrete and dual IP65/IP68 sealing ensures that the scanner remains functional even in the harshest of conditions. This makes it the perfect tool for maximizing workforce productivity and throughput, reducing production cycle times and preventing unplanned production line downtime.

The Zebra DS3678-HD Kit offers superior performance by capturing virtually any high-density and standard 1D or 2D barcode at lightning speed. Even if barcodes are damaged, dirty, or poorly printed, this intelligent scanner can handle it all, making it an ideal choice for workers in the manufacturing industry.

One of the standout features of this kit is its unrivaled manageability. With complimentary industry-best tools, managing the scanners couldn't be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models, and more.

Physical Characteristics:
  • Dimensions:
    • Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D / 18.5 cm H x 7.6 cm W x 14.2 cm D
  • Weight:
    • Cordless: 14.5 oz./411 g
  • Color:
    • Industrial Green
  • Battery Power:
    • Precision+ 3100 mAh Li-Ion rechargeable battery
  • Scans per Full Charge:
    • 70,000+
  • Illumination:
    • Two (2) warm white light LEDs
  • Image Sensor:
    • 1,280 x 960 pixels
  • Imager Field of View:
    • Horizontal: 31°, Vertical: 23°
Power and Connectivity:
  • Input Voltage Range:
    • Host powered: 4.5 VDC min., 5.5 VDC max.
    • External power supply: 11.4 VDC min., 12.6 VDC max.
  • Operating Current:
    • DS3608-HD (corded): 450 mA (typical)
  • Standby Current:
    • DS3608-HD (corded): 100 mA (typical)
  • Wireless Connectivity:
    • Bluetooth Radio: Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
    • Data Rate:
      • 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
      • 1 Mbit/s (0.27 Mbit/s) for Low Energy Radio
    • Radio Range:
      • Direct line of sight in open air:
        • Class 1: Minimum 300 ft. (100.0 m)
        • Class 2: Minimum 30 ft. (10.0 m)
Decode Capabilities:
  • 1D:
    • Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
  • 2D:
    • PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes



Wireless Connectivity:
  • Bluetooth Radio: Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
  • Data Rate:
    • 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
    • 1 Mbit/s (0.27 Mbit/s) for Low Energy Radio
  • Radio Range:
    • Direct line of sight in open air:
      • Class 1: Minimum 300 ft. (100.0 m)
      • Class 2: Minimum 30 ft. (10.0 m)
