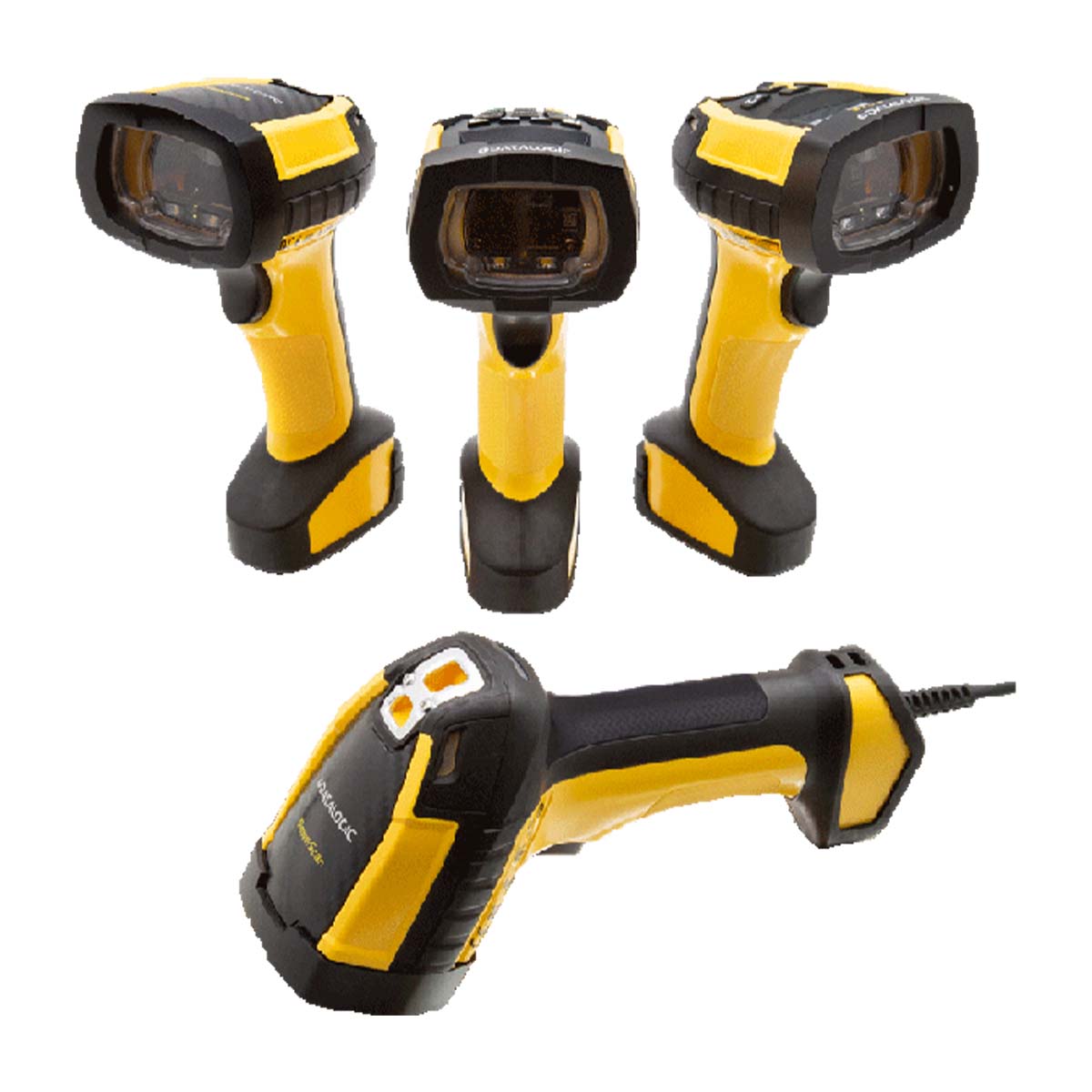

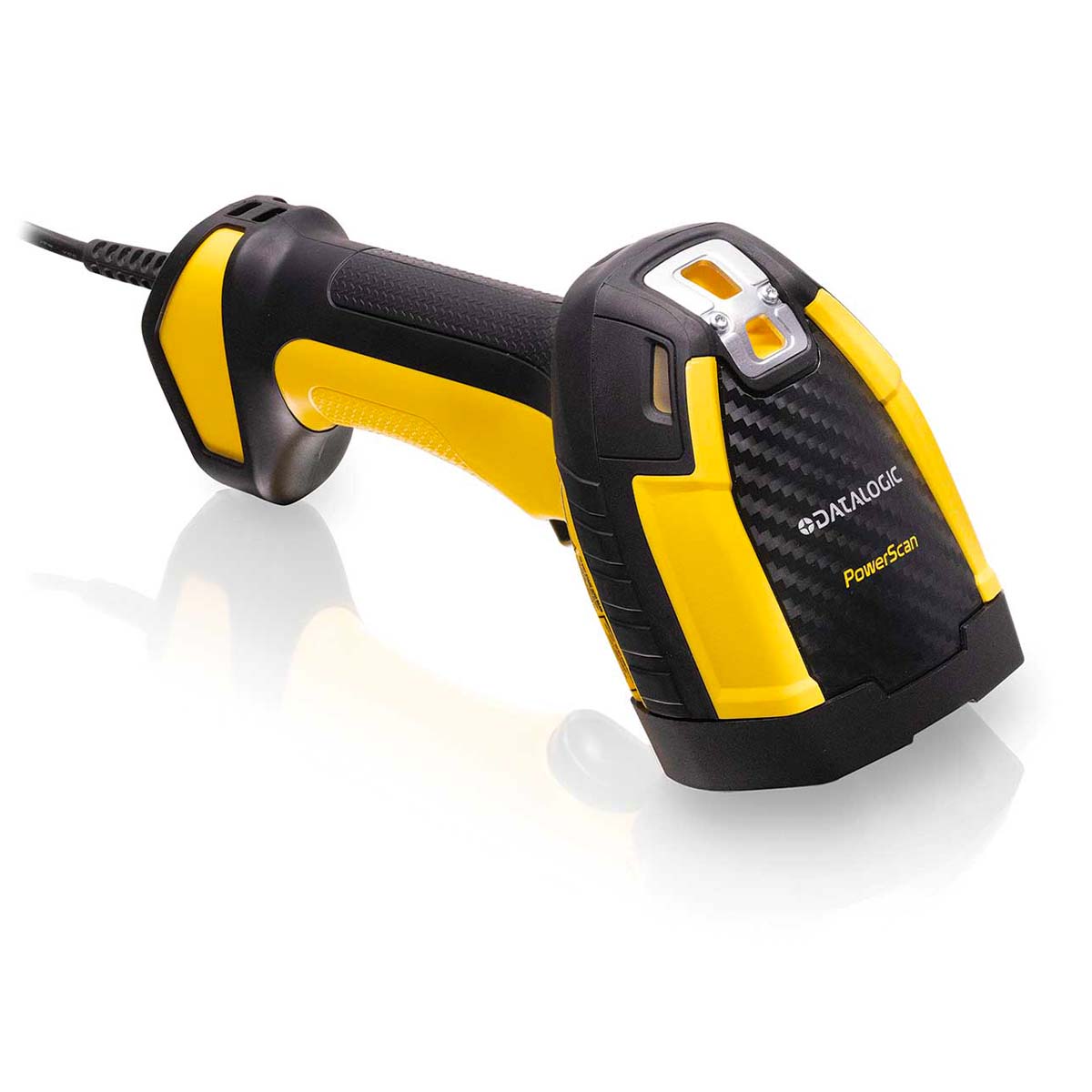

Datalogic Powerscan PD9630-SR Standard Range Corded

Datalogic Powerscan PD9630-SR Standard Range Corded

Features: Ultra Rugged - Scans 1D/2D Barcodes - Multi-Interface.

SKU: PD9630-SR

No ratings on this product.

$575.00

Out of stock

Out of stock

Datalogic PowerScan PD9630-SR, Standard Range, USB/RS-232 Multi-Interface

Datalogic Powerscan PD9630-SR: Excellence in Every Scan
Dive into the world of impeccable scanning with the Datalogic Powerscan PD9630-SR Standard Range Corded scanner. Meticulously crafted for the most demanding industrial applications, it boasts an ultra-rugged construction ensuring unmatched durability. A perfect blend of performance and ergonomics, its well-balanced design ensures minimal operator strain, promoting effortless, accurate scanning every time. But it's not just the build; the PowerScan PD9630 also introduces three specialized optic options, catering to various user needs. Whether you're seeking intuitive distance scanning or have high-density barcodes to decode, this device adapts seamlessly.

Feedback is key, and Datalogic understands that. With the exclusive 3 Green Lights (3GL™) system, operators receive immediate visual confirmation of a successful scan. Complemented by a pronounced beeper and tactile vibration, there's no second-guessing a good read. The innovative 'Green Spot' technology ensures visibility from any angle, while the multi-interface capabilities offer flexibility in connectivity. And with Datalogic's Motionix™ motion-sensing technology, the scanner intuitively shifts modes based on your actions, proving its dedication to user-centric design.

Decoding Capability

  • 1D / Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
  • 2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code.
  • Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post.
  • Digital Watermarking: Digimarc Barcodes (PD9630-HP and PD9630-DC)

Electrical

  • Current Operating (Typical):
    • PD9630-SR: 200mA @ 5V; 120mA @ 12V
    • PD9630-HP/ PD9630-DC: 280mA @ 5V / 140mA @ 12V
  • Standby/Idle (Typical): 187mA @ 5V / 92mA @ 12V
  • Input Voltage: 5 – 30 VDC ± 5%

Environmental

  • Ambient Light: 0 – 100,000 lux
  • Drop Resistance: Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F; Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F
  • Tumble: 5,000 @ 1 m / 3.3 ft
  • Trigger Resistance: Withstands 10 million hits
  • ESD Protection (Air Discharge): 20 kV
  • Humidity (Non-Condensing): 0 – 95%
  • Particulate and Water Sealing: IP67 and IP65
  • Temperature:
    • Operating: -20 to 50 °C / -4 to 122 °F
    • Storage/Transport: -40 to 70 °C / -40 to 158 °F

Interfaces

  • Interfaces: RS-232 / USB

Physical Characteristics

  • Colors Available: Yellow/Black
  • Dimensions H x L x W: 19.0 x 14.0 x 7.9 cm / 7.5 x 5.5 x 3.1 in
  • Weight: 318.0 g / 11.2 oz

Reading Performance

  • Imager Sensor:
    • PD9630-SR/HP: 1280 x 800
    • PD9630-DC: 1280 x 800 color sensor
  • Light Source:
    • Aiming: 630 – 680 nm VLD
    • Illumination: White LED reading light
  • Print Contrast Ratio (Minimum): 15%
  • Reading Angle:
    • Pitch: +/- 52°
    • Roll (Tilt): 360°
    • Skew (Yaw): +/- 52°
  • Field Of View:
    • SR and HP: 38° H, 24° V
    • DC: 50° H, 33° V
  • Reading Indicators: Beeper (Adjustable Tone and Volume); Datalogic’s 3GL™ (Three Green Lights) technology for good-read feedback; Datalogic ‘Green Spot’ on the Code; Dual Good Read LEDs; Vibration.
  • Resolution (Maximum):
    • PD9630-SR/PD9630-DC: 1D Codes: 3 mil; 2D Codes: 6 mil
    • PD9630-HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil

Decoding Capability (Typical Depth of Field)

  • PD9630-SR / PD9630-HP:
    • Code 128: 5 mils: 6.4 to 30.9 cm / 2.5 to 12.2 in, 20 mils: 4 to 103.7 cm / 1.6 to 40.8 in, 40 mils: 5.5 to 175 cm / 2.2 to 68.9 in
    • EAN/UPC: 13 mils: 4 to 67.5 cm / 1.5 to 26.5 in
    • DataMatrix: 10 mils: 6 to 30 cm / 2.5 to 11.8 in
  • PD9630-DC:
    • Code 128: 2.5 mils: 6.3 to 11.5 cm / 2.5 to 4.5 in, 5 mils: 3.8 to 41 cm / 1.5 to 16.1 in, 20 mils: 4 to 157 cm / 1.6 to 61.8 in
    • EAN/UPC: 13 mils: 4 to 120 cm / 1.5 to 40.2 in
    • PDF417: 10 mils: 0.5 to 46.1 cm / 0.2 to 18.1 in
    • DataMatrix: 4 mils: 6.5 to 9.3 cm / 2.5 to 3.6 in, 10 mils: 4.2 to 32 cm / 1.6 to 12.6 in, DataMatrix 10 mils: 4.2 to 30.2 cm / 1.6 to 11.8 in

Safety & Regulatory

  • Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use. The Regulatory Addendum for this product can be referred to for a complete list of certifications.
  • Environmental Compliance: Complies to China RoHS; Complies to EU RoHS; Complies to R.E.A.C.H.
  • Laser Classification: Caution Laser Radiation – Do not stare into beam CDRH Class II; IEC 60825 Class 2
  • LED Classification: IEC 62471 LED Class: Exempt

Utilities

  • Datalogic Aladdin™: Datalogic Aladdin configuration program is available for download at no charge.
  • OPOS / JavaPOS: OPOS and JavaPOS Utilities are available for download at no charge.
  • Remote Host Download: Available on request

Warranty

  • Warranty: 3-Year Factory Warranty
