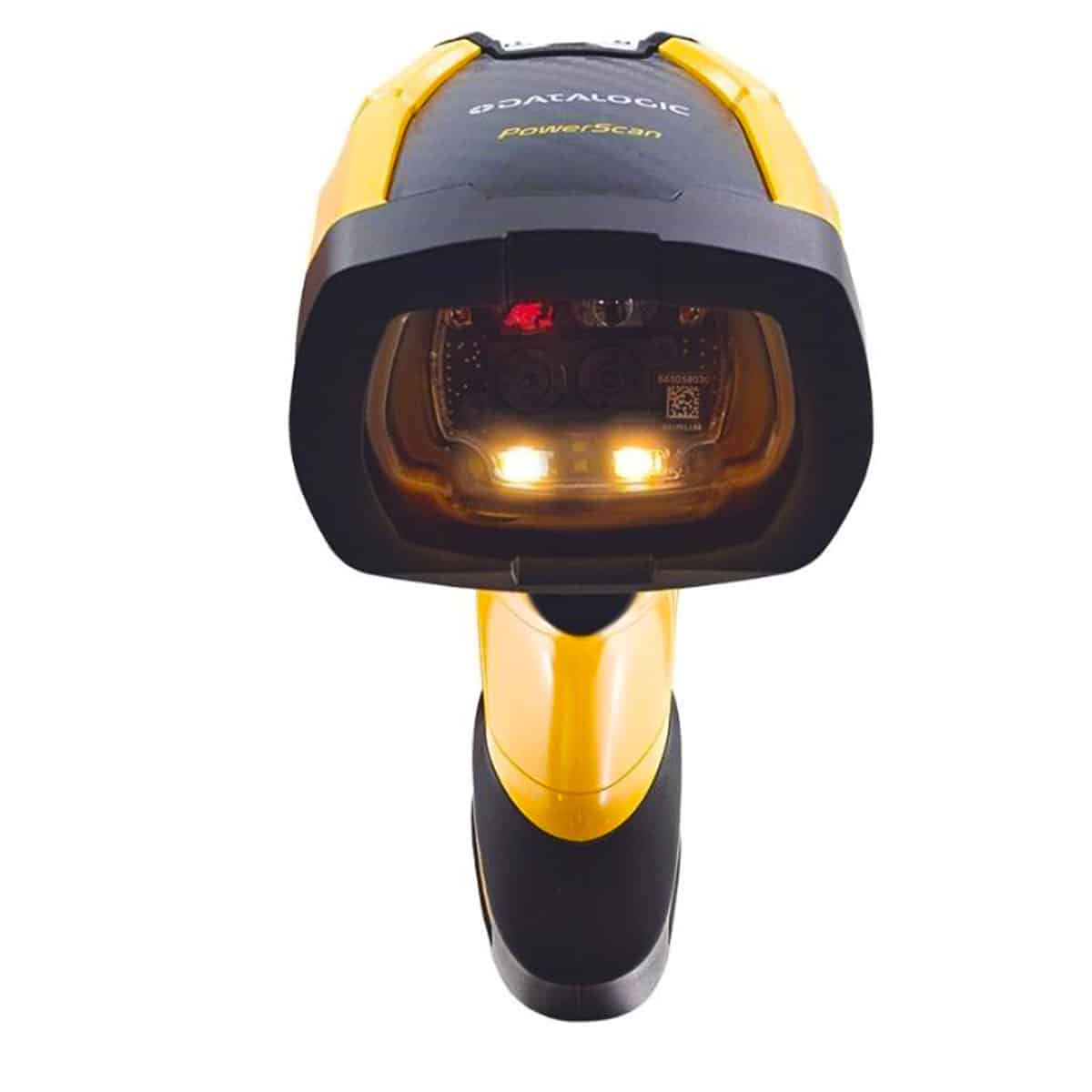

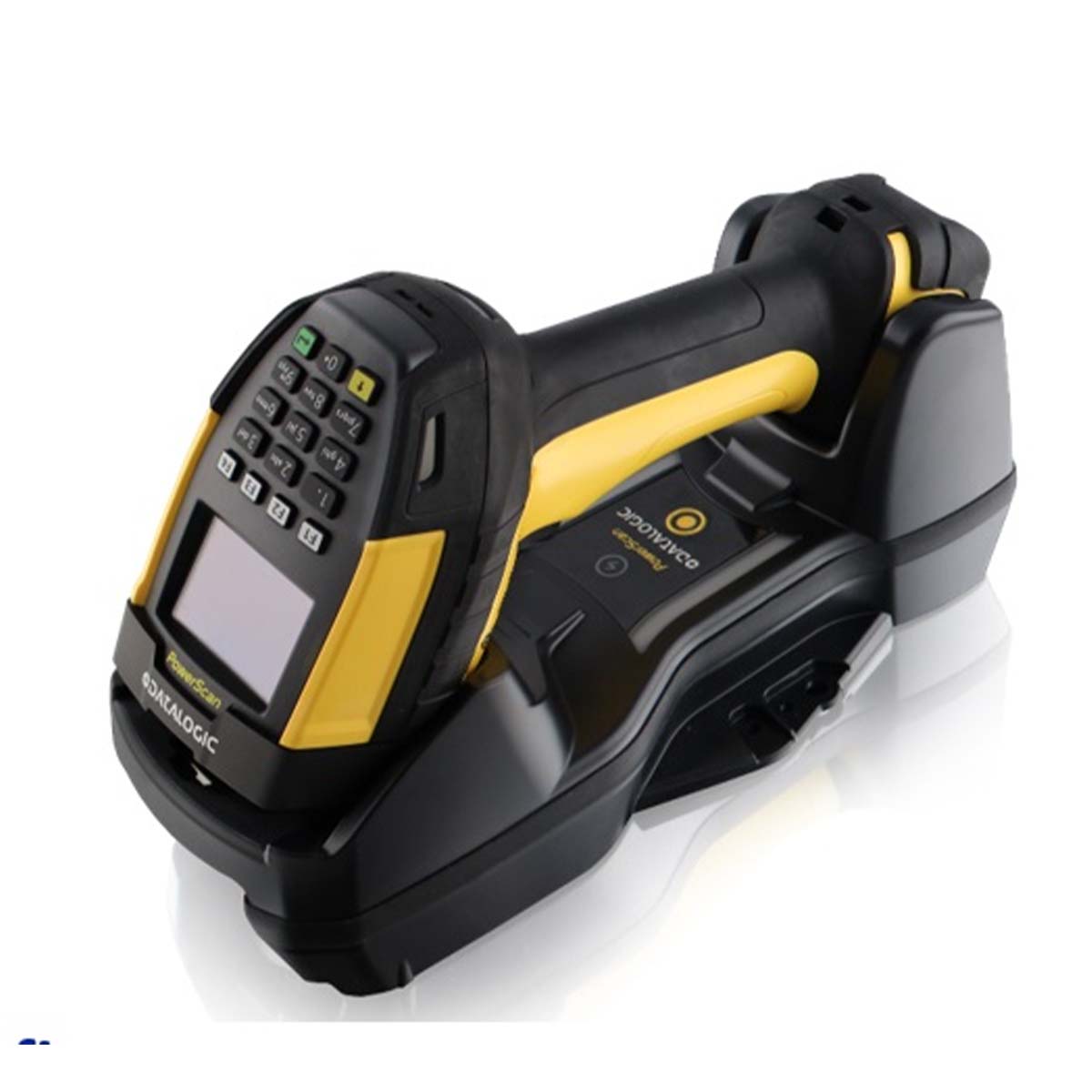

Datalogic Powerscan PM9600-SR Standard Range Cordless

Datalogic Powerscan PM9600-SR Standard Range Cordless

Features: Ultra Rugged - Standard Range - 433 MHz - Scans 1D and 2D Barcodes

SKU: PM9600-SR433RB

No ratings on this product.

$896.82

Out of stock

Out of stock

PowerScan PM9600-SR, Standard Range, 433 MHz, Removable Battery

Datalogic Powerscan PM9600-SR: Freedom to Scan with Precision
Experience the cutting-edge of scanning technology with the Datalogic Powerscan PM9600-SR Standard Range Cordless scanner. Crafted with an ultra-rugged physique, it promises resilience even in the harshest of environments, making it a trusted partner for all industrial applications. Designed meticulously, its ergonomic structure guarantees a balanced weight distribution, reducing operator fatigue and enhancing usability. Couple that with its intuitive aiming system, and you’re promised a flawless, first-pass barcode reading every time, without the strain on your wrist.     Embrace the convenience of mobility without compromising on efficiency. With Datalogic’s STAR Cordless System™ at its core, the PowerScan 9600 facilitates unrestricted movement, ensuring operator safety and increased productivity. Its superior power management system guarantees longevity, promising uninterrupted, intensive scanning for over a shift. But what truly sets it apart is the groundbreaking Wireless Charging System. Built on inductive-charging technology, it eradicates the need for battery pins or contacts, ensuring your device remains pristine and free from common wear and tear issues.     Step into the future with the BC9600 base/charger. It's not just a charger but a symbol of modularity and adaptability. With a host of interface plug-ins, whether standard or industrial, it caters to diverse communication needs, from RS-232 and USB to varied Ethernet protocols. The PowerScan PM9600 is more than a scanner; it’s a testament to flexibility and innovation.

Decoding Capability

  • 1D / Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
  • 2D Codes: Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot code.
  • Postal Codes: Australian Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Portuguese Post, Postnet, Royal Mail Code (RM4SCC), Swedish Post.
  • Digital Watermarking: Digimarc Barcodes (PD9630-HP and PD9630-DC).

Electrical

  • Current Operating (Typical):
    • PD9630-SR: 200mA @ 5V; 120mA @ 12V.
    • PD9630-HP/ PD9630-DC: 280mA @ 5V / 140mA @ 12V.
  • Standby/Idle (Typical): 187mA @ 5V / 92mA @ 12V.
  • Input Voltage: 5 – 30 VDC ± 5%.

Environmental

  • Ambient Light: 0 – 100,000 lux.
  • Drop Resistance: Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F; Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F.
  • Tumble: 5,000 @ 1 m / 3.3 ft.
  • Trigger Resistance: Withstands 10 million hits.
  • ESD Protection (Air Discharge): 20 kV.
  • Humidity (Non-Condensing): 0 – 95%.
  • Particulate and Water Sealing: IP67 and IP65.
  • Temperature:
    • Operating: -20 to 50 °C / -4 to 122 °F.
    • Storage/Transport: -40 to 70 °C / -40 to 158 °F.

Interfaces

  • RS-232 / USB.

Physical Characteristics

  • Colors Available: Yellow/Black.
  • Dimensions (H x L x W): 19.0 x 14.0 x 7.9 cm / 7.5 x 5.5 x 3.1 in.
  • Weight: 318.0 g / 11.2 oz.

Reading Performance

  • Imager Sensor:
    • PD9630-SR/HP: 1280 x 800.
    • PD9630-DC: 1280 x 800 color sensor.
  • Light Source: Aiming: 630 – 680 nm VLD; Illumination: White LED reading light.
  • Print Contrast Ratio (Minimum): 15%.
  • Reading Angle: Pitch: +/- 52°; Roll (Tilt): 360°; Skew (Yaw): +/- 52°.
  • Field Of View:
    • SR and HP: 38° H, 24° V.
    • DC: 50° H, 33° V.
  • Reading Indicators: Beeper (Adjustable Tone and Volume), Datalogic’s 3GL™ (Three Green Lights) technology for good-read feedback, Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs, Vibration.
  • Resolution (Maximum):
    • PD9630-SR/PD9630-DC: 1D Codes: 3 mil; 2D Codes: 6 mil.
    • PD9630-HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil.

Decoding Capability (Depth of Field)

  • Minimum distance determined by symbol length and scan angle.
  • Printing resolution, contrast, and ambient light dependent.

Safety & Regulatory

  • Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use.
  • Environmental Compliance: Complies to China RoHS; Complies to EU RoHS; Complies to R.E.A.C.H.
  • Laser Classification: Caution Laser Radiation – Do not stare into beam CDRH Class II; IEC 60825 Class 2.
  • LED Classification: IEC 62471 LED Class: Exempt.

Utilities

  • Datalogic Aladdin™: Configuration program available for download at no charge.
  • OPOS / JavaPOS: Utilities available for download at no charge.
  • Remote Host Download: Available on request.

Warranty

  • 3-Year Factory Warranty.
