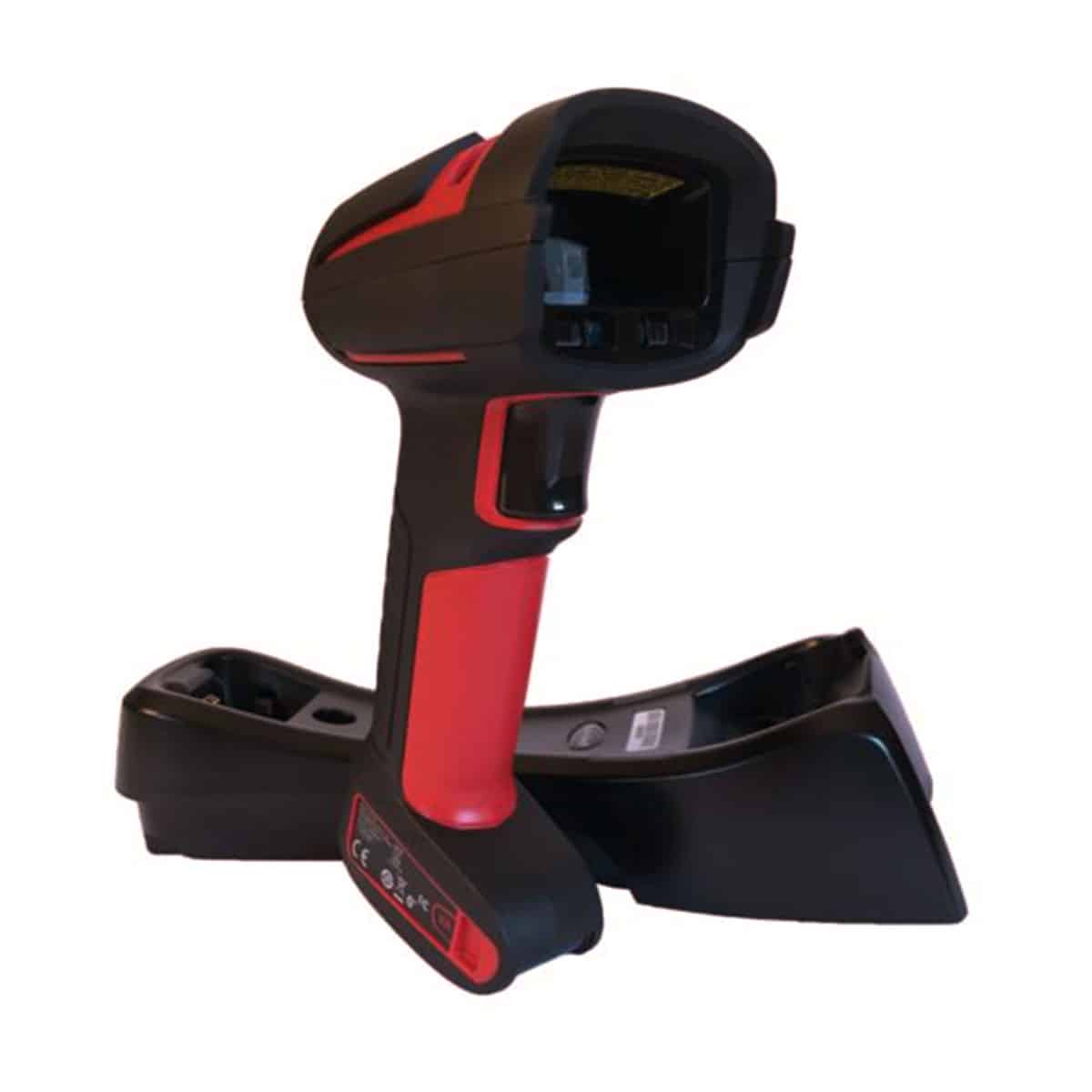

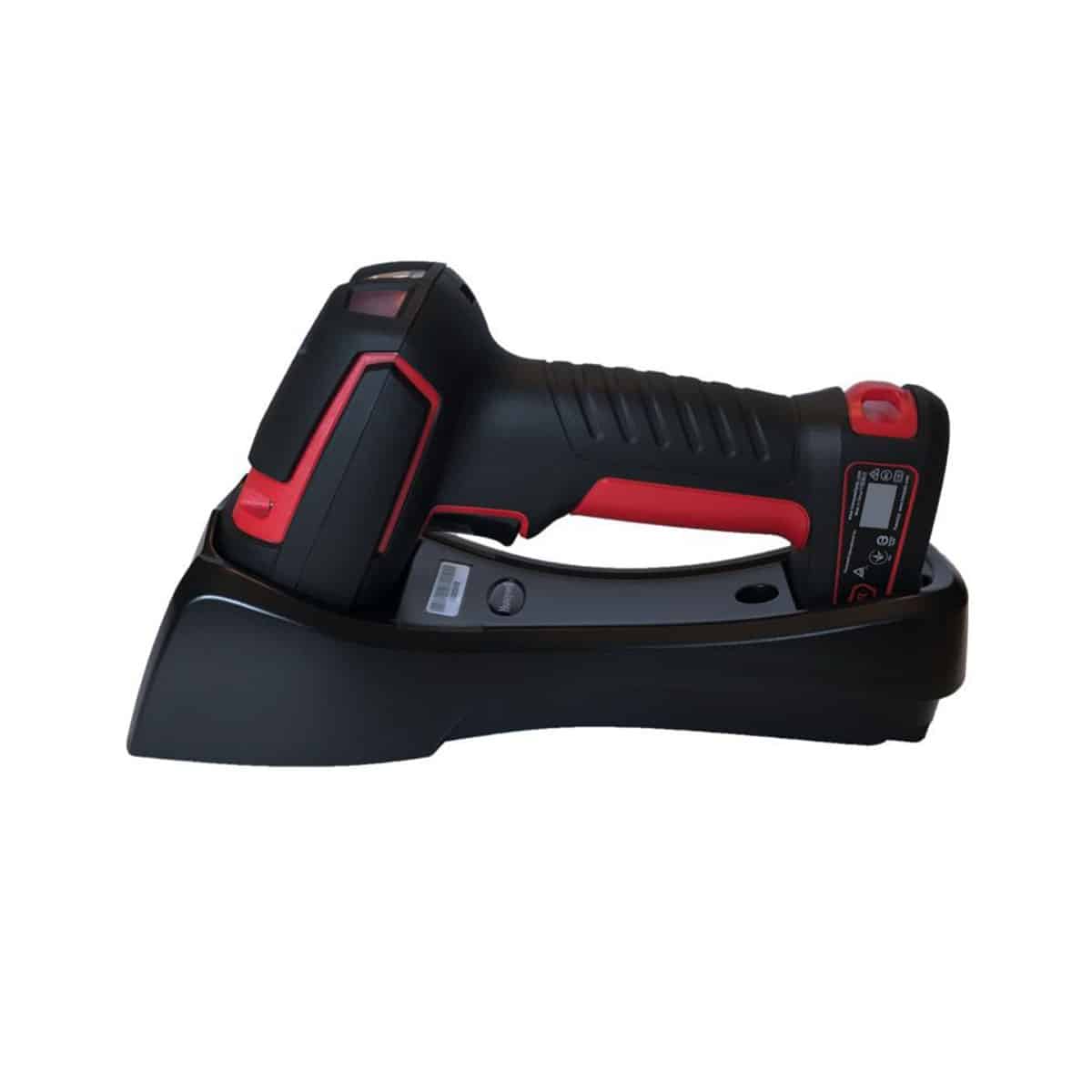

Honeywell Granit 1990iXR Ultra-Rugged FlexRange™ Scanner (USB) Kit

Honeywell Granit 1990iXR Ultra-Rugged FlexRange™ Scanner (USB) Kit

Kit Includes: Scanner, Cable

Features: Flawless 1D/2D Barcode Scanning.


No ratings on this product.


Out of stock

Out of stock
Tethered. Ultra rugged/industrial. 1D, PDF417, 2D, XR (FlexRange™) focus, with vibration. Red scanner (1990iXR-3), USB Type A 3m straight cable (CBL-500-300-S00).
Honeywell Granit™ 1990iXR: Beyond Boundaries
Meet the future of scanning: The Honeywell Granit™ 1990iXR Ultra-Rugged FlexRange™ Scanner.
  Seamlessly merging durability with state-of-the-art performance, this device guarantees swift, accurate readings even with damaged or sub-par barcodes. Whether you're working in a bustling retail environment or a demanding warehouse, the 1990iXR, with its unrivaled resistance to 10 ft drops, intense temperatures, and more, promises uninterrupted service and reduced operational costs.     The XR model's unique attribute is its FlexRange technology, making it apt for both close-up and expanded range scanning. Whether you're scanning a barcode up close or a rack label 33 ft away, expect flawless results every time. Couple that with the integrated Honeywell Operational Intelligence software and the Scanner Management Utility, and you've got an all-inclusive solution for effortless deployment and real-time scan insights.     Embracing a rich legacy of efficient scanning solutions, Granit™ XP's next-gen offerings elevate ultra-rugged scanning to unprecedented heights. Don't just adapt; transform your operations with the Granit™ 1990iXR.


  • Overall Dimensions: 192 mm x 76 mm x 100 mm, 7.6 in x 3.0 in x 3.9 in


  • Skew: 65°
  • Decode Capability: 1D/2D
  • Motion Tolerance: Up to 177 in/s, Up to 4500 mm/s
  • Scanning Range: FlexRange (XR)
  • Print Contrast: 20% minimum reflectance difference
  • Scan Pattern: Area Imager (1280 x 800 pixel array)
  • Brightness: 0 to 100,000 lux (9,290 foot-candles)


  • Bluetooth: No


  • Host System Interface: Keyboard Wedge, RS-232 TTL, USB


  • Standby Power: 0.5 W


  • Storage Temperature Range: -40°C to 70°C, -40°F to 158°F
  • Operating Humidity: Up to 95% relative humidity, non-condensing


  • Tumble Specifications: 7,000 1 m (3.3 ft) tumbles
  • Drop Specifications:
    • 2 m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
    • 2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH
    • 3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH


  • Operating Power: 2.35 W (470 mA @ 5 VDC)
  • Input Voltage: 4.0 VDC to 5.5 VDC
  • Operating Temperature: -22°F to 122°F, -30°C to 50°C
  • Warranty Duration: Three-year factory warranty
  • Brand: Honeywell
  • Power Connector Type: Corded
