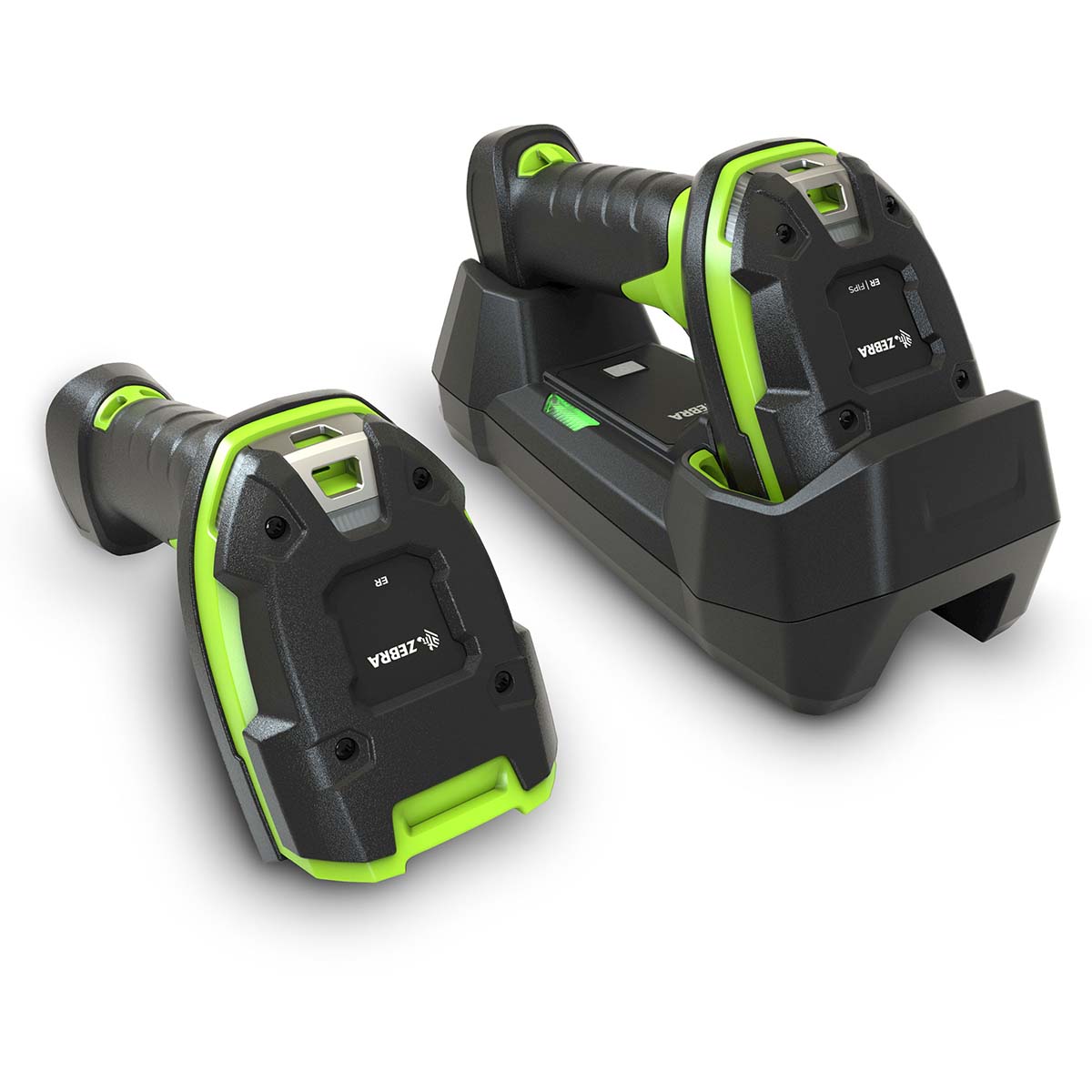

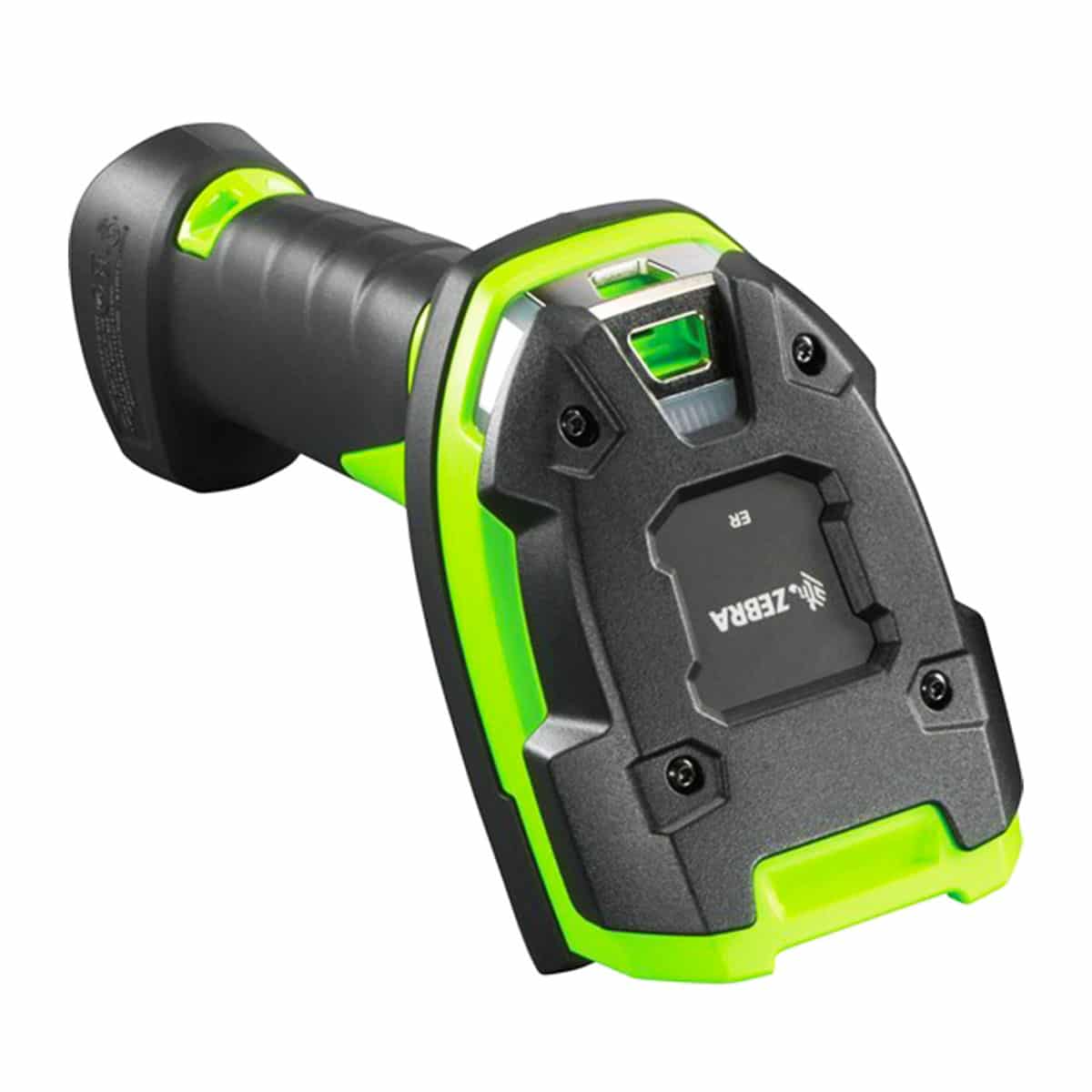

Zebra DS3678-ER Extended Range (Bluetooth)
Zebra DS3678-ER Extended Range (Bluetooth)
Features:
Ultra Rugged – Direct Part Mark – Scans 1D and 2D Barcodes – Black
Related Products:
No ratings on this product.
Categories: Scanners
(DS3678-ER2F003VZWW) Zebra DS3678-ER Scanner
Zebra DS3678-ER: Achieve Unrivalled Barcode Scanning Performance

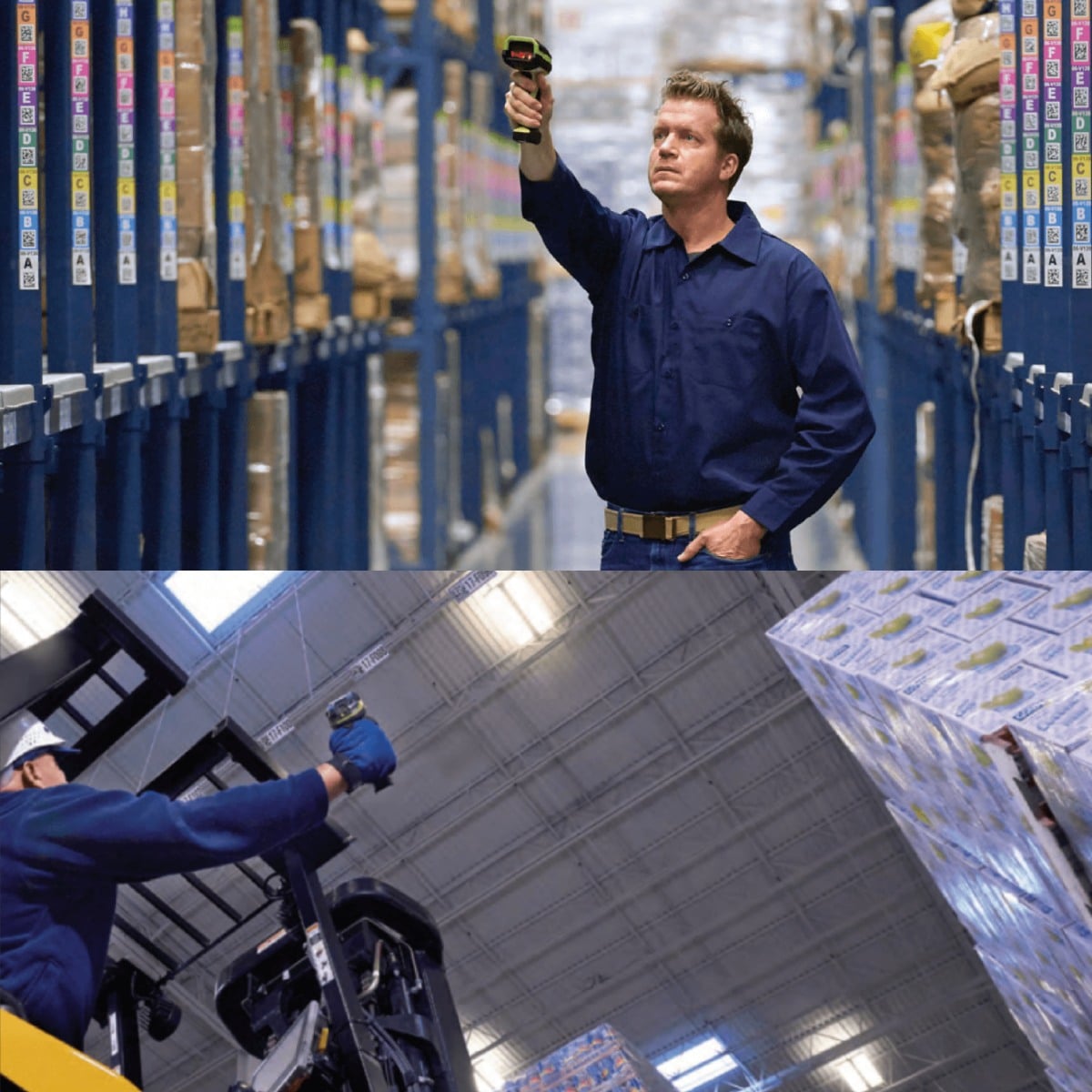

Improve warehouse and manufacturing efficiency with the Zebra DS3678-ER Extended Range scanner. This ultra-rugged device allows for superior scanning of standard and extra-wide 1D/2D barcodes over an unmatched range, from as close as 3 inches to as far as 70 feet. This unparalleled performance comes in handy especially in warehouses and ports, where varying barcode sizes at diverse distances need to be accurately captured.Exceptional Range and Durability in a Single Package
The Zebra DS3678-ER scanner excels in its class by providing superior scanning ranges and extreme durability. Capable of enduring falls of up to 10 feet onto concrete, being dustproof, spray proof, and waterproof to IP67, it's practically indestructible. To ensure optimum performance throughout its life, Zebra's unique DataCapture DNA software ecosystem is integrated to simplify the scanning process.Unprecedented Versatility and Reliable Charging
The advanced imager of the DS3678-ER ensures effortless reading of barcodes, even under shrinkwrap, damaged, dirty, or poorly printed, leading to enhanced productivity. It's the first scanner in its class with an ultra-rugged cradle and charging contacts designed to withstand 250,000 insertions, assuring corrosion-free, reliable charging over its lifetime.Efficient Management and Enhanced Productivity
With the DS3678-ER scanner, you can easily manage your inventory data by capturing and parsing GS1 label barcode data instantly. Remote configuration, firmware upgrades, data formatting, and battery statistics monitoring are all possible with the complimentary industry-best tools. For a detailed demonstration, watch this video or visit the product specifications page.DS3678-ER2F003VZWW
Specification |
Description |
|---|---|
Physical Characteristics |
|
| Dimensions | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D |
| Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D | |
| Weight | Corded: 11.8 oz./334 g |
| Cordless: 15.38 oz./436 g | |
| Input Voltage Range | Host powered: 4.5 VDC min., 5.5 VDC max. |
| External power supply: 11.4 VDC min., 12.6 VDC max. | |
| Operating Current | DS3608-ER (corded): |
| – Near: 360mA (RMS typical) | |
| – Far: 800mA (RMS typical) | |
| Standby Current | DS3608-ER (corded): 100 mA (RMS typical) |
| Color | Industrial Green |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge |
| Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP | |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
Performance Characteristics |
|
| Scans per Full Charge | 70,000+ |
| Image Capture | Basic |
| Aimer | 655 nm laser |
| Illumination | One 660 nm LED |
| Imager Field of View | Near: 32° (H) x 20° (V); Far: 12° (H) x 7.6° (V) |
| Image Sensor | 1,280 x 800 (1 Megapixel) |
| Minimum Print Contrast | 25% minimum reflective difference |
| Skew/Pitch/Roll | Skew: ± 60° |
| Pitch: ± 60° | |
| Roll: ± 360° | |
Decode Capabilities |
|
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
| Digimarc | Digital watermark technology |
| IUID Support | Supports IUID parsing, the ability to read and separate IUID fields per application requirements |
User Environment |
|
| Operating Temp. | Corded: -22° F to 122° F/-30° C to 50° C |
| Cordless: -4° F to 122° F/-20° C to 50° C | |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature |
| DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C | |
| DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C | |
| Tumble Specification | 7500 3.3 ft./1.0 m tumbles |
| Sealing | Scanner: IP65 and IP68 per applicable IEC sealing specifications |
| FLB cradle: IP65 | |
| ESD | Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity | 0 to 10,000 Foot Candles/0 to 107,639 Lux (direct sunlight) |
Wireless Connectivity |
|
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth |
| 1 Mbit/s (0.27 Mbit/s) for Low Energy | |
| Radio Range | Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) |
| Decode Ranges (Typical) | |
| Symbology/Resolution | Near/Far |
| Code 128: 15 mil | 5.0-100.0 in./12.7-254.0 cm |
| Code 128: 40 mil | 3.5-260.0 in./8.9-660.4 cm |
| Code 128: 100 mil | 20-840.0 in./50.8-2133.6 cm |
| Data Matrix: 10 mil | 4.0-44 in./10.1-111.76 cm |
| Data Matrix: 200 mil | 10-500 in./25.4-1270.0 cm |
Regulatory |
|
| Environmental | RoHS EN 50581: 2012 |
| Electrical Safety | EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013; US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 |
| Laser/LED Safety | Complies with 21 CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice NO. 50, dated June 24, 2007 and IEC/EN 60825-1:2007 and/or IEC/EN 60825-1:2014 |
| EMI/RFI | IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B Digital Apparatus: ICES-003 Issue 5, Class B |
Â
For more detailed specifications, please visit the official product specification page.
