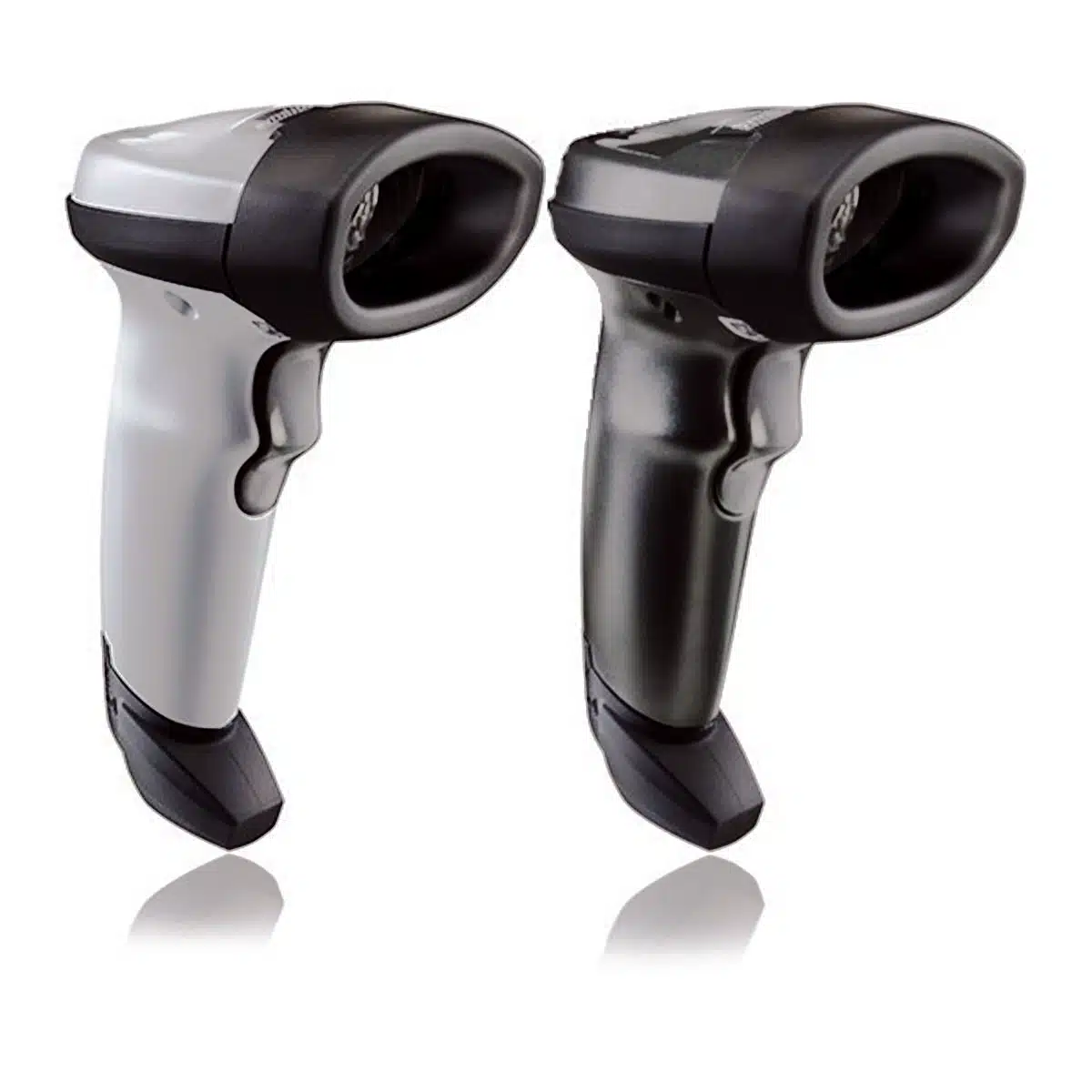

Zebra LI2208 (USB Kit)

Physical Characteristics

• Dimensions: 6.30 in. H x 2.64 in. W x 3.90 in. L (16 cm H x 6.7 cm W x 9.9 cm L)
• Weight: 4.95 oz./140 grams

Voltage and Current

• 5VDC ± 10%
  • <165 mA scanning
  • <40 mA standby
  • <2.5 mA USB suspend
  • <4.0 mA low power mode (when enabled, RS232 and Keyboard Wedge only)
• Power Source: Host power or external power supply
• Color: Twilight Black; Nova White

Supported Host Interfaces

• USB, RS232, Keyboard Wedge, and IBM RS485

Keyboard Support

• Supports over 90 international keyboards

User Environment

• Ambient Light Immunity: Max 108,000 lux
• Operating Temp.: 32° F to 122° F / 0° C to 50° C
• Storage Temp.: -40° F to 158° F / -40° C to 70° C
• Humidity: 5% to 95% RH, non-condensing
• Drop Specs: Over 100 drops at 5 ft./1.5 m at room temperature; survives 6 ft./1.8 m drops to concrete
• Tumble Testing: 1,000 cycles (2,000 drops) in 1/2-meter tumbler
• Environmental Sealing: IP42

Bar Code Symbologies

• UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar (NW – 7) MSI Chinese 2 of 5 IATA Inverse 1D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded

Decode Ranges (Typical Working Ranges)*

• 3 mil Minimum resolution
• 4 mil: 4-10 in./10.2-25.4 cm
• 5 mil: 3-13 in./7.6-33 cm
• 7.5 mil: 1.5-19 in./ 3.8-48.3 cm
• 13 mil (100% UPC-A): 1-31 in./2.5-78.7 cm
• 20 mil: 1-42 in./2.5-106.7 cm
• 26 mil (200% UPC-A): 3-55 in./7.6-140 cm
• 100 mil reflective: >20 ft./6 m

Performance Characteristics

• Skew Tolerance: ±45°
• Pitch Tolerance: ±45°
• Roll Tolerance: ±45°
• Scan Pattern: Single bright aiming line
• Scan Angle: Horizontal 35°
• Scan Speed: 547 scans per second
• Motion Tolerance: 25 in./ 63.5 cm per second
• Light Source: LED Class 1 device 617mm (amber)
• Min. Print Contrast: 15% MRD

Utilities and Management

• 123Scan(2): Scanner Management Services (SMS), Zebra Scanner SDK

Accessories

• Hands-free (gooseneck) Intellistand; auto-host detect cables

Regulatory

• Technical Requirements
  • EMC: FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2
  • Environmental: RoHS Directive 2002/95/EEC
  • Electrical Safety: C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1
  • LED Class: 1
• Environmental: RoHS Compliant

Warranty

• Subject to the terms of Zebra’s hardware warranty statement, the LI2208 is warranted against defects in workmanship and materials for a period of 60 months from the date of shipment.
• For the complete Zebra hardware product warranty statement, go to: Zebra Warranty

SERVICES

• Service from the Start with Comprehensive Coverage
• Advance Exchange
• Enterprise Mobility Software Support

Decode Capabilities3

• Input Voltage Range: DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
• 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
• 2D: PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes

Battery

• Battery Capacity/Battery Type: 2,400 mAh Li-Ion Battery
• Scans Per Battery Charge2: 110,000 scans at 60 Scans per Minute or 50,000 scans at 10 Scans per Minute
• Operating Time Per Full Charge2: 84.0 Hours
• Charge Time (from Empty):
  • Standard USB: 14 Hour Shift Hours: 4 Full Charge Hours: 17
  • BC1.2 USB: 14 Hour Shift Hours: 1 Full Charge Hours: 5
  • External 5V Source: 14 Hour Shift Hours: 1 Full Charge Hours: 5
  • Micro USB: 14 Hour Shift Hours: 1 Full Charge Hours: 7
  • BC1.2 Micro USB: 14 Hour Shift Hours: 1 Full Charge Hours: 4

Cordless Accessories

• CR2278 Presentation Cradle, Spare Battery, Micro USB Cable

Decode Ranges (Typical)4

• Code 39: Resolution: 5 mil, Near: .2in./.5cm, Far: 6.0 in/15.2 cm.
• Code 128: Resolution: 5 mil, Near: .6in./1.5 cm., Far: 4.0 in./10.1 cm.
• PDF417: Resolution: 6.7 mil, Near: .8 in./2.0 cm, Far: 5.7 in/14.5 cm.
• UPC: Resolution: 13 mil (100%), Near: .5 in./.1.3 cm, Far: 14.5 in./36.8 cm.
• Data Matrix: Resolution: 10 mil, Near: .3in./.8 cm., Far: 6.2 in./15.7 cm.
• QR: Resolution: 20 mil, Near: .0 in./.0cm, Far: 11 in./27.9 cm.

Footnotes

1. Note: 1 tumble = 0.5 cycle.
2. Simulated Checkout profile of 10 scans in 10 seconds with a 50-second rest.
3. Refer to Product Reference Guide for a complete list of symbologies.
4. Printing resolution, contrast, and ambient light dependent.
