Technical Specifications

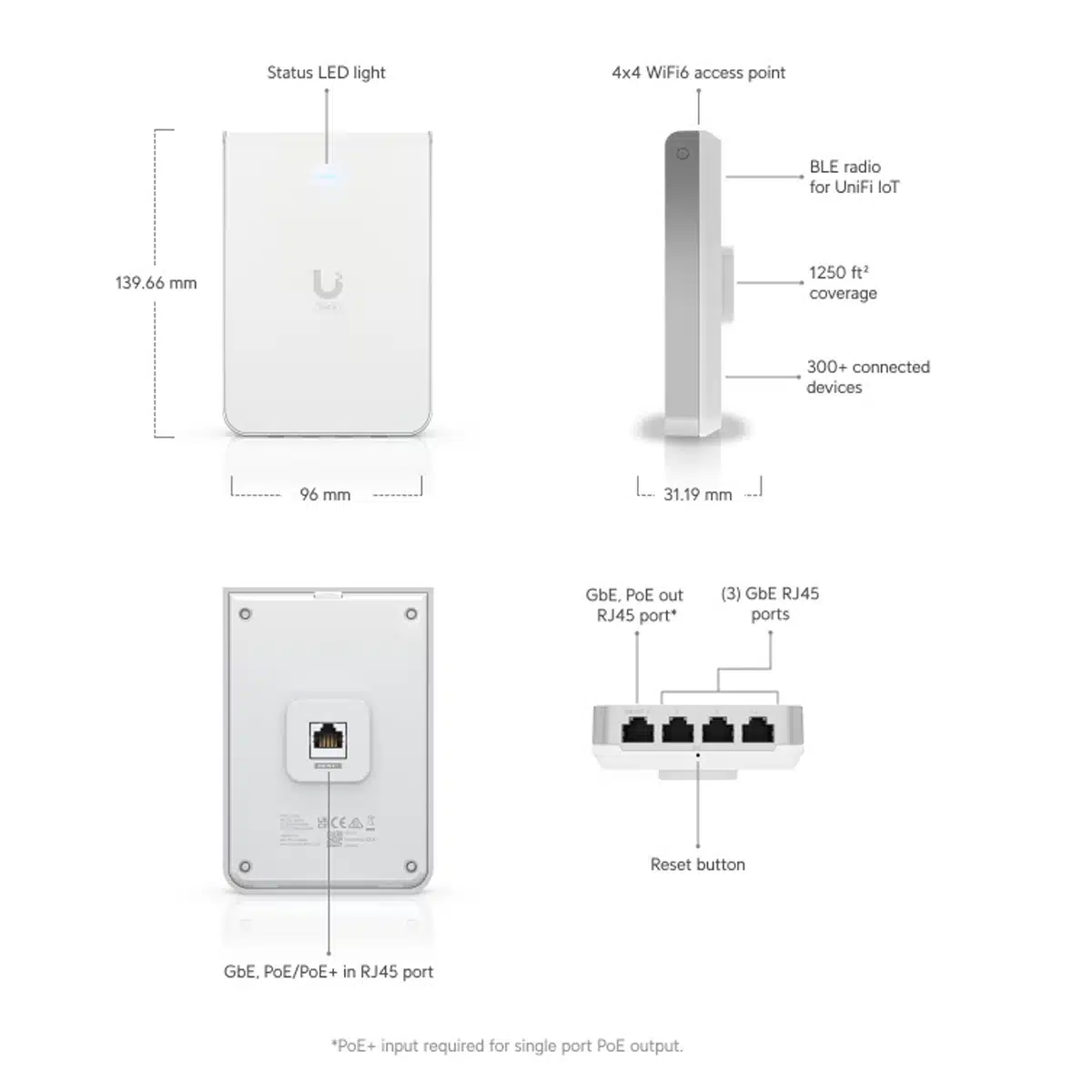

Mechanical |
|
|---|---|
| Dimensions | 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28″) |
| Weight | 460 g (1.01 lb) |
| Enclosure materials | Plastic, aluminum |
| Mount material | Aluminum |
Hardware |
|
| Networking interface | (1) Data-in: 1GbE RJ45 port
(4) Data-out: 1GbE RJ45 ports |
| Management interface | Ethernet
Bluetooth |
| PoE interface | (1) PoE in (PoE output not used)
(1) PoE out (Requires a PoE+ switch) |
| Power method | PoE |
| Power supply | UniFi PoE switch
48V, 0.5A PoE adapter (Optional) |
| Max. power consumption | Excluding PoE output: 13.5W |
| Max PoE wattage per port by PSE | 15.4W*
*Requires a PoE+ switch |
| Voltage range PoE mode | 44—57V DC |
| Max. TX power
2.4 GHz 5 GHz |
22 dBm
26 dBm |
| MIMO
2.4 GHz 5 GHz |
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO) |
| Throughput rate
2.4 GHz 5 GHz |
573.5 Mbps
4.8 Gbps |
| Antenna gain
2.4 GHz 5 GHz |
5 dBi
5.9 dBi |
| LED | White/blue |
| Button | Factory reset |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Software |
|
| WiFi standards | 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Zero-wait DFS | Yes*
*Supported with upcoming firmware versions. |
Supported Data Rates |
|
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Application Requirements |
|
| UniFi Network | Version 6.4.52 and later |
