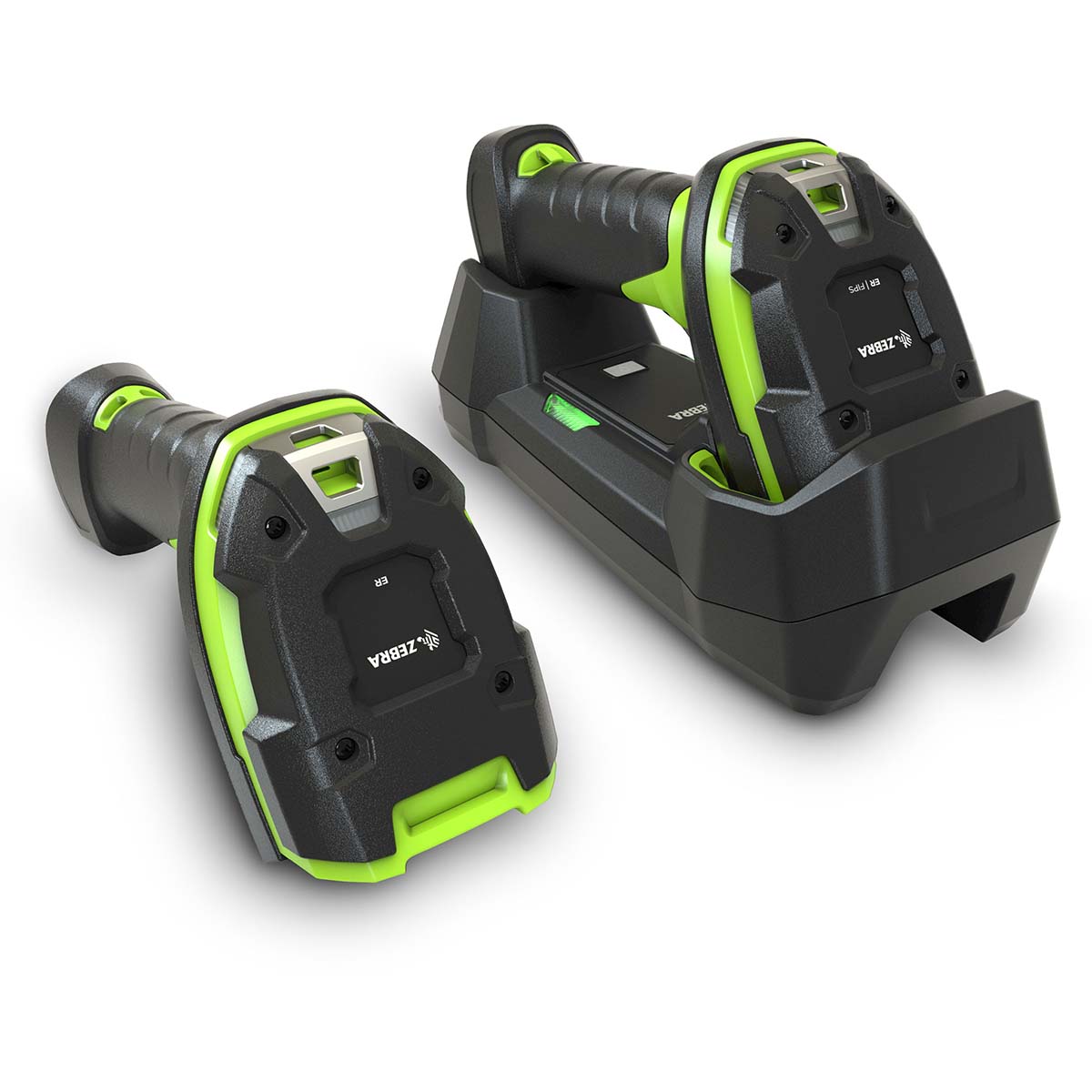

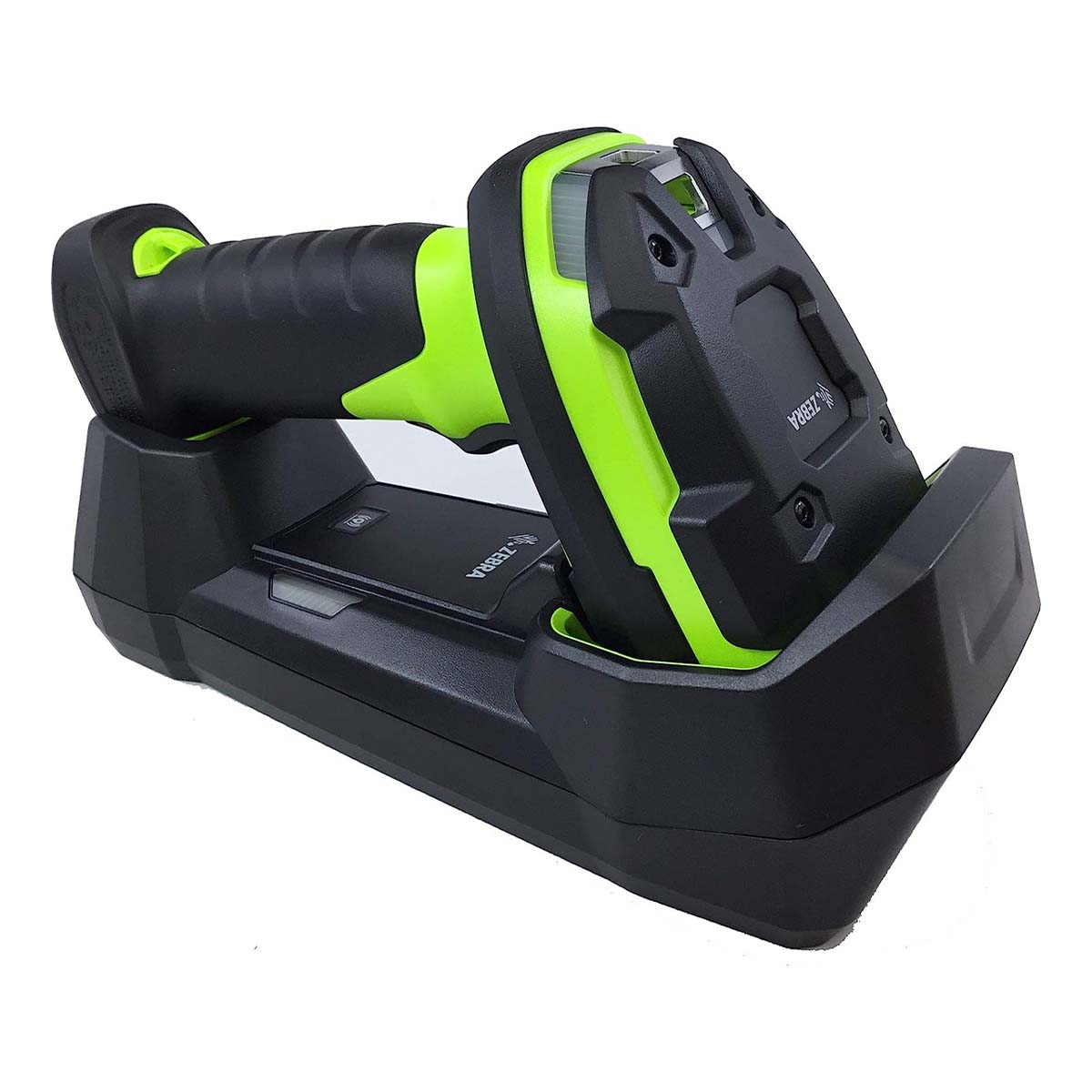

Zebra DS3678-DP Direct Part Mark (Bluetooth) Kit

Zebra DS3678-DP Direct Part Mark (Bluetooth) Kit

Features: Ultra Rugged - Direct Part Mark - Scans 1D and 2D Barcodes - Black

SKU: DS3678-DP3U42A2S1W

No ratings on this product.


Out of stock

Out of stock

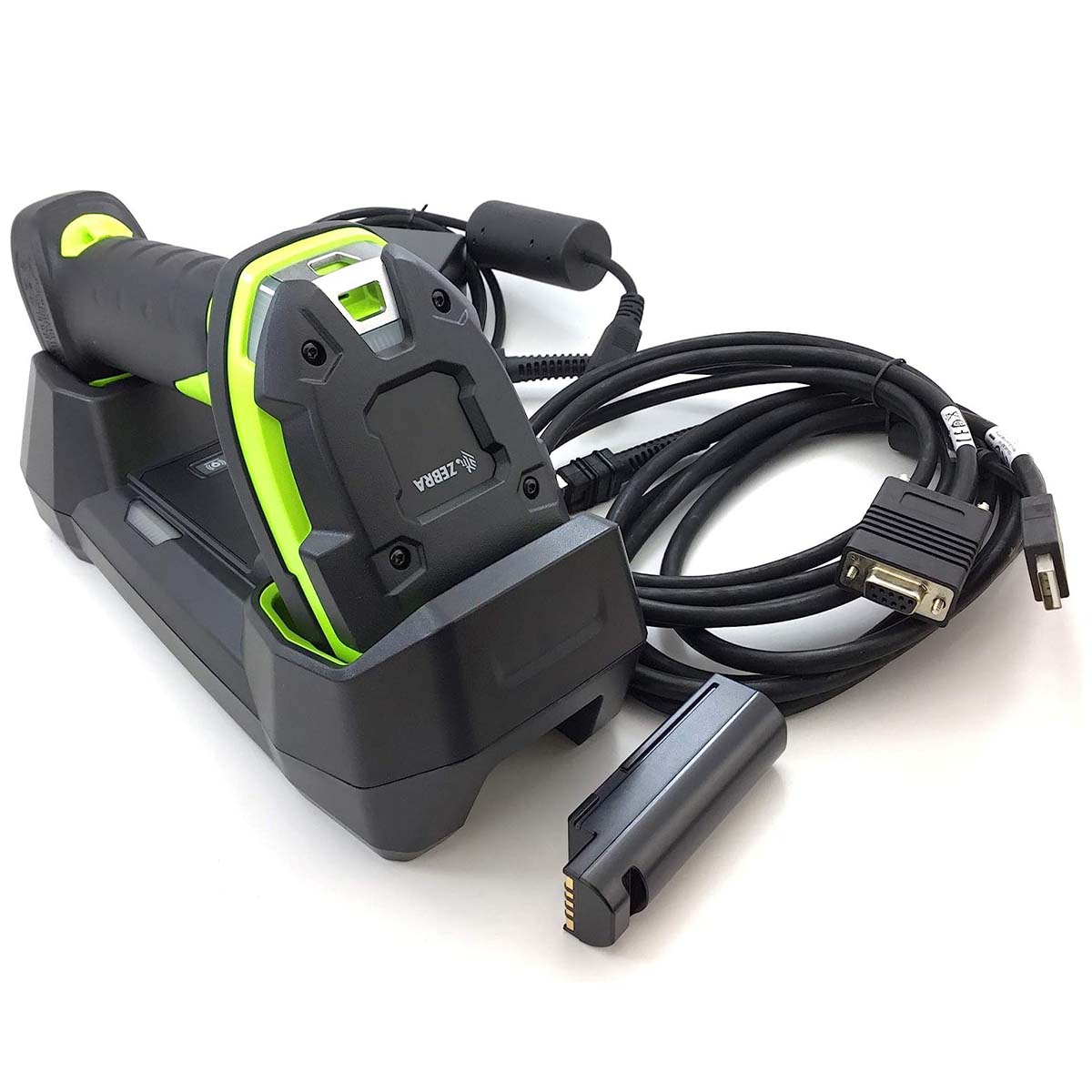

(DS3678-DP3U42A2S1W) Zebra LI3608-SR Standard Range Corded Scanner, (CBA-U42-S07PAR) SHIELDED USB CABLE, (STB3678-C100F3WW) CRADLE, (PWR-BGA12V50W0WW ) P/S, (CBL-DC-451A1-01) DC CORD, A/C CORD NOT INCLUDED
Add CAIEC power cable

Elevate Tracking and Tracing with Zebra DS3678-DP Direct Part Mark Kit

Experience the next level of product traceability with the Zebra DS3678-DP Direct Part Mark (Bluetooth) Kit. Specially designed to capture virtually every type of Direct Part Mark (DPM) and 1D/2D barcode, it is ideal for track and trace, maintenance, warranty service, and product authentication on industrial manufacturing production lines. The kit includes the DS3678-DP scanner, shielded USB cable, standard cradle, power supply, DC cord, and manual (A/C cord not included).

Performance That Outshines in the Harshest Environments

Equipped to perform exceptionally in challenging conditions, this ultra-rugged scanner showcases advanced scanning performance, managing to capture any 1D or 2D barcode printed directly on product components or labels, even under severe conditions. This scanner's advanced illumination system provides multiple lighting effects required to capture marks on reflective, irregular and curved surfaces, as well as low and high contrast marks.

Unmatched Rugged Design Meets Cutting-Edge Technology

The DS3678-DP scanner's ultra-rugged design is practically indestructible, making it perfect for punishing environments. With the highest drop, tumble, and sealing specification in its class, it can survive an 8 ft./2.4 m drop to concrete and operates reliably after 5,000 tumbles. Both the scanner and the cradle are waterproof and dustproof, providing robust reliability and durability where it's needed most.

Unparalleled Manageability and Efficient Operation

Managing the DS3678-DP scanner is easy with our industry-leading tools that allow remote configuration, firmware upgrade, and efficient data formatting. The Bluetooth model offers superior cordless freedom, with Zebra's Wi-Fi Friendly Mode eliminating potential wireless interference. Discover more about the DS3678-DP's features in this video and view the specifications here.
Dimensions Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D
Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D
Weight Corded: 10.72 oz./304 g
Cordless: 14.18 oz./402 g
Input Voltage Range Host powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max.
Operating Current DS3608-DP (corded): 360 mA (RMS typical)
Standby Current DS3608-DP (corded): 100 mA (RMS typical)
Color Industrial Green
Supported Host Interfaces USB, RS232, Keyboard Wedge, Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
Battery PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
User Indicators Direct decode indicator; LEDs; beeper; vibration
Scans per Full Charge 100,000+
Image Capture Basic
Illumination Direct: Two (2) warm white light LED; Diffuse: Ring of red 634 nm LEDs
Aimer 655 nm laser
Imager Field of View Horizontal: 31°, Vertical: 23°
Image Sensor 1,280 x 960 pixels
Minimum Print Contrast 15% minimum reflective difference
Skew/Pitch/Roll Skew: ± 60°, Pitch: ± 60°, Roll: ± 360°
Decode Capabilities 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
IUID Support Supports IUID parsing, the ability to read and separate IUID fields per application requirements
Operating Temp. Corded: -22° F to 122° F / -30° C to 50° C
Cordless: -4° F to 122° F / -20° C to 50° C
Storage Temp. -40° F to 158° F / -40° C to 70° C
Humidity 5% to 95% non-condensing
Drop Specification DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature
DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C
DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C
Tumble Specification 7500 3.3 ft./1.0 m tumbles
Sealing Scanner: IP65 and IP68 per applicable IEC sealing specifications
FLB cradle: IP65
ESD Per EN61000-4-2, ±20 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
Ambient Light Immunity 0 to 10,037 Foot Candles / 0 to 108,000 Lux (direct sunlight)
Utilities and Maintenance 123Scan, Scanner SDK, Scanner Management Service (SMS), Network Connect
Wireless Connectivity Bluetooth Radio: Bluetooth Class 1, Version 4.0 (LE), serial port (SPP)and HID profiles
Data Rate: 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth, 1 Mbit/s (0.27 Mbit/s) for Low Energy
Radio Range: Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)
Regulatory Environmental: RoHS EN 50581: 2012
Electrical Safety: EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013; US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
Laser/LED Safety: Exempt Risk Group LED per IEC/EN 62471 (Ed 1), Class 2 Laser per IEC/EN 60825-1 (Ed 3), Complies with 21CFR1040.10
EMI/RFI: IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B, Digital Apparatus: ICES-003 Issue 5, Class B
Decode Range (Typical) Symbology/Resolution: Near/Far
Code 39: 3.0 mil: 0.2-2.8 in./0.5-7.1 cm
Code 39: 5.0 mil: 0.2-2.8 in./0.5-7.1 cm
PDF417: 6.6 mil: 40.2-3.2 in./40.5-8.1 cm
Datamatrix: 5.0 mil: 0.4-2.5 in./1.0-6.3 cm
Datamatrix: 10.0 mil: 0.0-3.4 in./0.0-8.6 cm
QR: 5.0 mil: 0.4-2.5 in./1.0-6.3 cm
QR: 10.0 mil: 0.0-3.4 in./0.0-8.1 cm
100% UPC: 13.0 mil: 41.0-5.8 in./42.5-14.7 cm

For more detailed specifications, please visit the official product specification page.

To learn more about Data Capture DNA and its applications, visit www.zebra.com/datacapturedna.

To see a complete warranty statement,click here for the Zebra’s warranty page.
