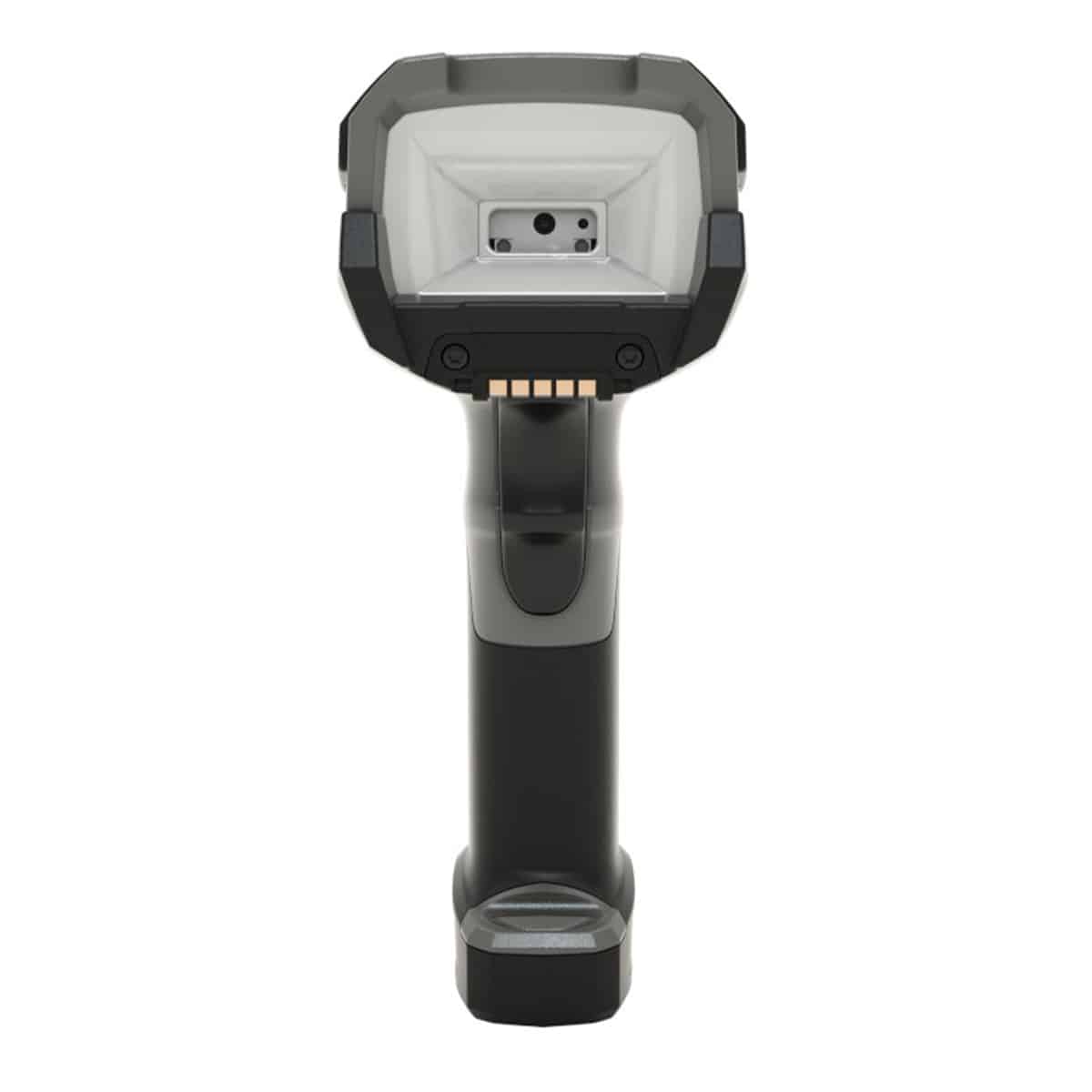

Zebra DS3678-DPA Direct Part Mark and Wide 1D Barcodes (Bluetooth) Kit

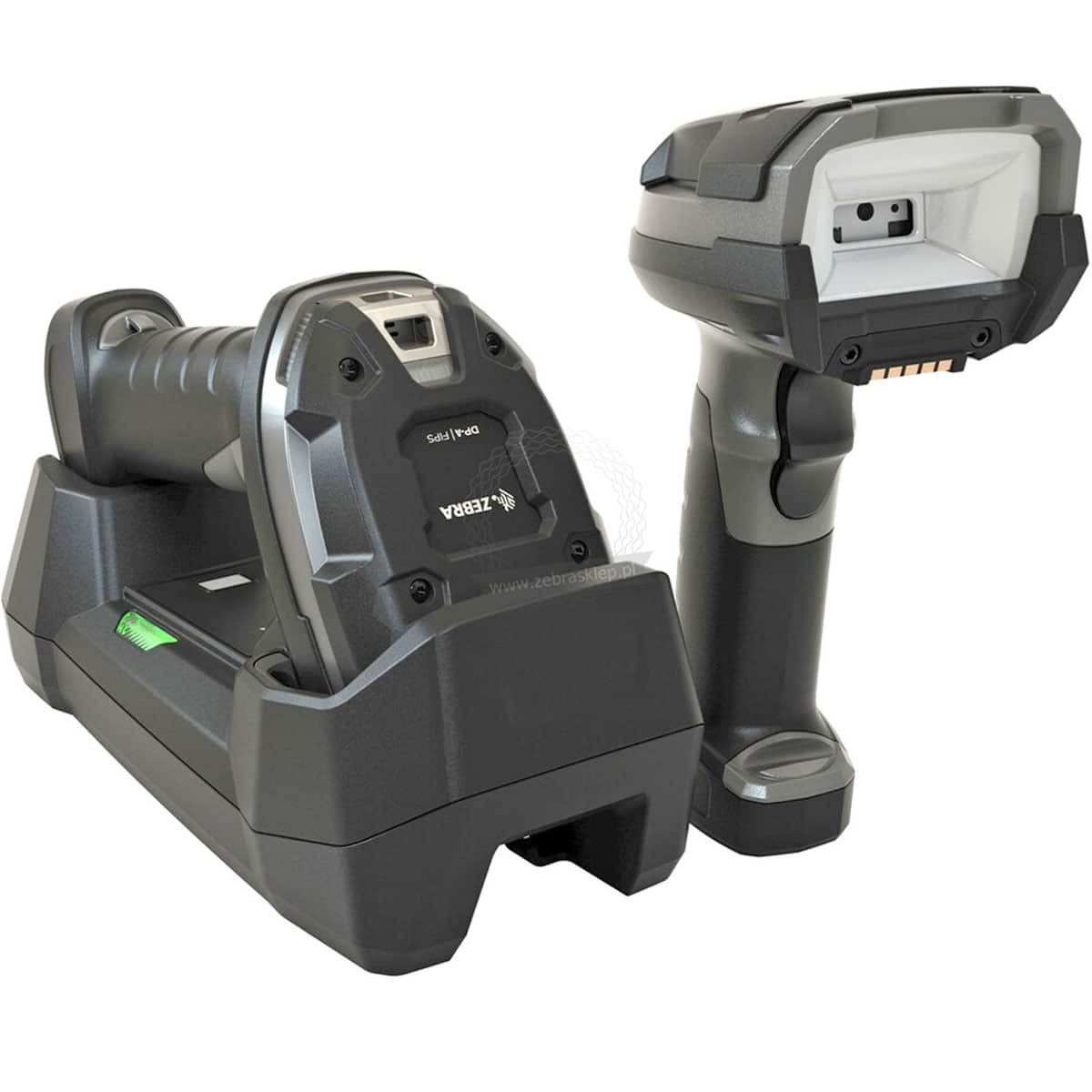

DS3678-DPAF002VZWW DPM SCANNER, CBA-U42-S07PAR SHIELDED USB CABLE, STB3678-C100F3WW CRADLE, PWR-BGA12V50W0WW P/S, CBL-DC-451A1-01 DC CORD, A/C CORD NOT INCLUDED Add CAIEC power cable
Elevate Tracking and Tracing with Zebra DS3678-DP Direct Part Mark Kit
Experience the next level of product traceability with the Zebra DS3678-DP Direct Part Mark (Bluetooth) Kit. Specially designed to capture virtually every type of Direct Part Mark (DPM) and 1D/2D barcode, it is ideal for track and trace, maintenance, warranty service, and product authentication on industrial manufacturing production lines. The kit includes the DS3678-DP scanner, shielded USB cable, standard cradle, power supply, DC cord, and manual (A/C cord not included).Performance That Outshines in the Harshest Environments
Equipped to perform exceptionally in challenging conditions, this ultra-rugged scanner showcases advanced scanning performance, managing to capture any 1D or 2D barcode printed directly on product components or labels, even under severe conditions. This scanner's advanced illumination system provides multiple lighting effects required to capture marks on reflective, irregular and curved surfaces, as well as low and high contrast marks.Unmatched Rugged Design Meets Cutting-Edge Technology
The DS3678-DP scanner's ultra-rugged design is practically indestructible, making it perfect for punishing environments. With the highest drop, tumble, and sealing specification in its class, it can survive an 8 ft./2.4 m drop to concrete and operates reliably after 5,000 tumbles. Both the scanner and the cradle are waterproof and dustproof, providing robust reliability and durability where it's needed most.Unparalleled Manageability and Efficient Operation
Managing the DS3678-DP scanner is easy with our industry-leading tools that allow remote configuration, firmware upgrade, and efficient data formatting. The Bluetooth model offers superior cordless freedom, with Zebra's Wi-Fi Friendly Mode eliminating potential wireless interference. Discover more about the DS3678-DP's features in this video and view the specifications here.DS3678-DP3U42A2S1W
| Specification | Description |
|---|---|
| Physical Characteristics | |
| Dimensions | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D |
| Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D | |
| Weight | Corded: 10.72 oz./304 g |
| Cordless: 14.18 oz./402 g | |
| Input Voltage Range | Host powered: 4.5 VDC min., 5.5 VDC max. |
| External power supply: 11.4 VDC min., 12.6 VDC max. | |
| Operating Current | DS3608-DPA (corded): 360 mA (RMS typical) |
| Standby Current | DS3608-DPA (corded): 100 mA (RMS typical) |
| Color | Gray and Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
| Performance Characteristics | |
| Scans per Full Charge | 100,000+ |
| Image Capture | Basic |
| Illumination | Direct: Two (2) warm white light LED; Diffuse: Ring of red 634 nm LEDs |
| Aimer | 655 nm laser |
| Imager Field of View | Horizontal: 46°, Vertical: 30° |
| Image Sensor | 1,280 x 960 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew/Pitch/Roll | Skew: ± 60°, Pitch: ± 60°, Roll: ± 360° |
| Decode Capabilities | |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
| IUID Support | Supports IUID parsing, the ability to read and separate IUID fields per application requirements |
| User Environment | |
| Operating Temp. | Corded: -22° F to 122° F / -30° C to 50° C |
| Cordless: -4° F to 122° F / -20° C to 50° C | |
| Storage Temp. | -40° F to 158° F / -40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature |
| DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C | |
| DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C | |
| Tumble Specification | 7500 3.3 ft./1.0 m tumbles |
| Sealing | Scanner: IP65 and IP68 per applicable IEC sealing specifications |
| FLB cradle: IP65 | |
| ESD | Per EN61000-4-2, ±20 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity | 0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight) |
| Wireless Connectivity | |
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth, 1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio Range | Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) |
| Regulatory | |
| Environmental | RoHS EN 50581: 2012 |
| Electrical Safety | EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013 |
| US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 | |
| Laser/LED Safety | Exempt Risk Group LED per IEC/EN 62471 (Ed 1), Class 2 Laser per IEC/EN 60825-1 (Ed 3), Complies with 21CFR1040.10 |
| EMI/RFI | IT Emissions: EN 55022: 2010/AC: 2011 (Class B), IT Immunity: EN 55024: 2010, Heavy Industrial: EN 61000-6-2: 2005/AC:2005, Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B), Voltage Fluctuation and Flicker: EN 61000-3-3: 2013, Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified), Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B, Digital Apparatus: ICES-003 Issue 5, Class B |
| Decode Ranges (Typical) | |
| Symbology/Resolution | Near/Far |
| Code 39: 3.0 mil | 0.5-4.7 in./1.3-11.9 cm |
| Code 39: 5.0 mil | 0.2-5.6 in./0.5-14.2 cm |
| PDF417: 6.6 mil | 0.1-4.0 in./0.3-10.2 cm |
| Datamatrix: 5.0 mil | 1.2-2.9 in./3.0-7.4 cm |
| Datamatrix: 10.0 mil | 0.1-4.9 in./0.3-12.5 cm |
| QR: 10.0 mil | 0.1-4.8 in./0.3-12.2 cm |
| 100% UPC: 13.0 mil | ⁴1.0-5.8 in./⁴2.5-14.7 cm |
| C128: 15.0 mil | ⁴3.3-10.0 in./⁴8.4-25.4 cm |
| EA3600 Network Connect Industrial Ethernet | |
| Network Protocols Supported | Ethernet/IP, Profinet, Modbus TCP, TCP/IP |
| Certification | ODVA EtherNet/IP, PROFIBUS |
| Standards | Complies with IEEE 802.3af standard |
| Power | 12 VDC or 24 VDC, 1 amp |
| LED Indicators | LED1 for Power: bi-color green/yellow LED; Green: unit powered and OK; yellow: in bootloader, LED2 for Link Status: blinking yellow LED controlled by the PHY indicating Ethernet traffic |
| Mounting | DIN rail brackets; mountable to both wide (120mm) and slim (35mm) DIN rails |
| Industrial Ethernet Customer Application Development | Device Definition Files (Profinet and EtherNet/IP): EDS file; GSD file; a single sample application that can switch between the three scan modes for TIA (Totally Integrated Automation) v13 or higher, Step 7 v 5.5, Logix Studio 5000 v24, Function Block (FB) for Siemens IDE’s: TIA, Step 7 v5.5 (Step 7 v5.5 FB should take in IO Addresses in INT form), Routine for Rockwell IDE |
For more detailed specifications, please visit the official product specification page.
